RegVelo Schwann downstream analysis after DFFP scoring¶

This notebook is a dedicated downstream-analysis guide for the curated Common Progenitor → Gut, Gut neuron, ChC furcation.

The primary model is dynamical RNA velocity. Inverse CytoTRACE is used as the validated ordering for this benchmark only. Gut retrograde Signed Ordering Flux is retained as biological information rather than corrected away.

Execution provenance. The displayed outputs were generated with scCS 0.8.0.dev33. Version 0.8.0.dev34 changes documentation and tutorial explanation only; the scientific calculations are unchanged.

1. Installation, versions, and reproducibility¶

[1]:

from __future__ import annotations
import warnings

from pathlib import Path
import importlib.metadata as importlib_metadata
import platform
import sys

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scanpy as sc
import scvelo as scv
from scipy.spatial.distance import jensenshannon

import scCS

SEED = 20260714
N_JOBS = 1
sc.settings.verbosity = 2
scv.settings.verbosity = 2
sc.set_figure_params(dpi=100, facecolor="white")

print("Python", sys.version.split()[0])
print("Platform", platform.platform())
print("scCS", scCS.__version__)
print("Scanpy", importlib_metadata.version("scanpy"))
print("scVelo", scv.__version__)

OUTPUT_DIR = Path("tutorial_outputs/schwann_downstream")
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)

# Hide known warnings emitted by optional upstream dependencies. These do not
# change the scCS calculation and would otherwise distract from the tutorial.
warnings.filterwarnings(
    "ignore",
    message=r"This process .* is multi-threaded, use of fork\(\) may lead to deadlocks.*",
    category=DeprecationWarning,
)
warnings.filterwarnings(
    "ignore",
    category=DeprecationWarning,
    module=r"cellrank\..*",
)

Python 3.12.13
Platform Linux-6.6.114.1-microsoft-standard-WSL2-x86_64-with-glibc2.39
scCS 0.8.0.dev33
Scanpy 1.11.5
scVelo 0.3.4

2. Load RegVelo Schwann, reproduce the curated clusters, and fit velocity¶

The Schwann tutorials use dynamical RNA velocity as the primary model. The dataset is loaded directly from RegVelo and the velocity model is fitted in the original expression/PCA manifold. No tutorial cache is assumed.

The inverse-CytoTRACE coordinate is used only as the validated ordering for this particular furcation; scCS does not prescribe it as a universal pseudotime.

[2]:

def clear_velocity_outputs(adata, *, clear_dynamics=False):
    """Remove stale velocity fields before fitting a requested model."""
    for key in ("velocity", "velocity_u", "velocity_variance"):
        adata.layers.pop(key, None)
    for key in ("velocity_graph", "velocity_graph_neg", "velocity_params"):
        adata.uns.pop(key, None)
    for key in (
        "velocity_self_transition",
        "root_cells",
        "end_points",
        "velocity_pseudotime",
        "latent_time",
    ):
        if key in adata.obs:
            del adata.obs[key]
    if clear_dynamics:
        for key in list(adata.var.columns):
            if str(key).startswith("fit_"):
                del adata.var[key]
        for key in list(adata.layers):
            if str(key).startswith("fit_"):
                del adata.layers[key]
        adata.uns.pop("recover_dynamics", None)


def ensure_pca_neighbors_moments(
    adata,
    *,
    n_pcs=30,
    n_neighbors=30,
    preserve_existing_neighbors=False,
):
    """Create the unbiased PCA neighbor graph used by RNA velocity."""
    if "X_pca" not in adata.obsm:
        n_comps = min(n_pcs, adata.n_obs - 1, adata.n_vars - 1)
        sc.pp.pca(adata, n_comps=n_comps)
    if "neighbors" not in adata.uns or not preserve_existing_neighbors:
        sc.pp.neighbors(
            adata,
            n_neighbors=min(n_neighbors, adata.n_obs - 1),
            n_pcs=min(n_pcs, adata.obsm["X_pca"].shape[1]),
            use_rep="X_pca",
            random_state=SEED,
        )
    if not {"Ms", "Mu"}.issubset(adata.layers):
        scv.pp.moments(adata, n_neighbors=None, n_pcs=None)
    if "X_umap" not in adata.obsm:
        sc.tl.umap(adata, random_state=SEED)


def resolve_present_genes(adata, candidates):
    """Resolve gene symbols case-insensitively and report missing markers."""
    lookup = {str(gene).lower(): str(gene) for gene in adata.var_names}
    resolved, missing = [], []
    for candidate in candidates:
        match = lookup.get(str(candidate).lower())
        if match is None:
            missing.append(str(candidate))
        elif match not in resolved:
            resolved.append(match)
    return resolved, missing


def row_js(left, right):
    """Row-wise Jensen-Shannon divergence with base-2 logarithms."""
    return np.asarray(
        [jensenshannon(a, b, base=2.0) ** 2 for a, b in zip(left, right)],
        dtype=float,
    )


def ordering_thirds(values):
    """Return stable early/middle/late labels for a continuous coordinate."""
    series = pd.Series(np.asarray(values, dtype=float))
    ranked = series.rank(method="first")
    return (
        pd.qcut(
            ranked,
            q=3,
            labels=["early", "middle", "late"],
            duplicates="drop",
        )
        .astype(str)
        .to_numpy()
    )

[3]:

import regvelo as rgv

SCHWANN_CLUSTER_ANNOTATION = {
    "15": "Common Progenitor",
    "5": "Common Progenitor",
    "16": "Gut",
    "12": "Gut neuron",
    "8": "ChC",
    "6": "ChC",
}
VELOCITY_MODEL = "dynamical"
RECOVER_DYNAMICS_MAX_ITER = 20


def prepare_schwann_annotations(adata):
    """Reproduce the curated Schwann furcation and inverse-CytoTRACE ordering."""
    if "neighbors" not in adata.uns or "connectivities" not in adata.obsp:
        raise RuntimeError("The original RegVelo neighbor graph is required.")

    if "sccs_leiden" not in adata.obs:
        sc.tl.leiden(
            adata,
            resolution=1.0,
            random_state=0,
            key_added="sccs_leiden",
        )

    leiden = adata.obs["sccs_leiden"].astype(str)
    adata.obs["cell_type_new"] = (
        leiden.map(SCHWANN_CLUSTER_ANNOTATION).fillna("Other").astype("category")
    )

    required = ("Common Progenitor", "Gut", "Gut neuron", "ChC")
    counts = adata.obs["cell_type_new"].astype(str).value_counts().reindex(required, fill_value=0)
    if np.any(counts <= 0):
        raise ValueError(
            f"The curated furcation was not reproduced. Observed counts: {counts.to_dict()}"
        )

    cytotrace = pd.to_numeric(adata.obs["CytoTRACE"], errors="coerce").to_numpy(float)
    finite = np.isfinite(cytotrace)
    lower = float(np.nanmin(cytotrace))
    upper = float(np.nanmax(cytotrace))
    inverse = np.full(adata.n_obs, np.nan, dtype=float)
    inverse[finite] = 1.0 - (cytotrace[finite] - lower) / (upper - lower)
    adata.obs["inverse_cytotrace_pseudotime"] = inverse


# Load the public RegVelo Schwann dataset and reproduce the curated annotations.
adata = rgv.datasets.schwann()
adata.var_names_make_unique()
prepare_schwann_annotations(adata)

# Fit the dynamical model in the original expression/PCA manifold.
# This is the primary Schwann model used by the tutorials.
ensure_pca_neighbors_moments(
    adata,
    n_pcs=30,
    n_neighbors=30,
    preserve_existing_neighbors=True,
)
clear_velocity_outputs(adata, clear_dynamics=True)
scv.tl.recover_dynamics(
    adata,
    max_iter=RECOVER_DYNAMICS_MAX_ITER,
    n_jobs=N_JOBS,
)
scv.tl.velocity(adata, mode="dynamical")
scv.tl.velocity_graph(adata, n_jobs=N_JOBS)
prepare_schwann_annotations(adata)

print(adata)
display(adata.obs["cell_type_new"].astype(str).value_counts().to_frame("n_cells"))

running Leiden clustering
    finished (0:00:02)
recovering dynamics (using 1/24 cores)

    finished (0:24:05)
computing velocities
    finished (0:00:11)
computing velocity graph (using 1/24 cores)

    finished (0:00:14)
AnnData object with n_obs × n_vars = 8821 × 1150
    obs: 'plates', 'devtime', 'location', 'n_genes_by_counts', 'total_counts', 'total_counts_ERCC', 'pct_counts_ERCC', 'doublet_scores', 'leiden', 'CytoTRACE', 'Gut_neuron', 'Sensory', 'Symp', 'enFib', 'ChC', 'Gut_glia', 'NCC', 'Mesenchyme', 'Melanocytes', 'SatGlia', 'SC', 'BCC', 'conflict', 'assignments', 'batch', 'initial_size_unspliced', 'initial_size_spliced', 'initial_size', 'n_counts', 'sccs_leiden', 'cell_type_new', 'inverse_cytotrace_pseudotime', 'velocity_self_transition'
    var: 'ERCC', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells', 'm', 'v', 'n_obs', 'res', 'lp', 'lpa', 'qv', 'highly_variable', 'Accession', 'Chromosome', 'End', 'Start', 'Strand', 'TF', 'means', 'dispersions', 'dispersions_norm', 'velocity_genes', 'fit_alpha', 'fit_beta', 'fit_gamma', 'fit_t_', 'fit_scaling', 'fit_std_u', 'fit_std_s', 'fit_likelihood', 'fit_u0', 'fit_s0', 'fit_pval_steady', 'fit_steady_u', 'fit_steady_s', 'fit_variance', 'fit_alignment_scaling', 'fit_r2'
    uns: 'assignments_colors', 'devtime_colors', 'hvg', 'leiden', 'leiden_colors', 'leiden_sizes', 'location_colors', 'log1p', 'neighbors', 'network', 'paga', 'regulators', 'skeleton', 'targets', 'umap', 'sccs_leiden', 'recover_dynamics', 'velocity_params', 'velocity_graph', 'velocity_graph_neg'
    obsm: 'X_diff', 'X_pca', 'X_umap'
    varm: 'loss'
    layers: 'GEX', 'Ms', 'Mu', 'ambiguous', 'matrix', 'palantir_imp', 'scaled', 'spanning', 'spliced', 'unspliced', 'fit_t', 'fit_tau', 'fit_tau_', 'velocity', 'velocity_u'
    obsp: 'connectivities', 'distances'

	n_cells
cell_type_new
Other	6845
ChC	762
Common Progenitor	675
Gut neuron	294
Gut	245

3. Inspect the native manifold and curated topology¶

[4]:

selected_labels = ["Common Progenitor", "Gut", "Gut neuron", "ChC"]
selected_mask_full = adata.obs["cell_type_new"].astype(str).isin(selected_labels)
display(
    adata.obs.loc[
        selected_mask_full,
        ["cell_type_new", "inverse_cytotrace_pseudotime"],
    ]
    .groupby("cell_type_new", observed=True)
    .agg(["count", "median", "min", "max"])
)

color_key = "assignments" if "assignments" in adata.obs else "cell_type_new"

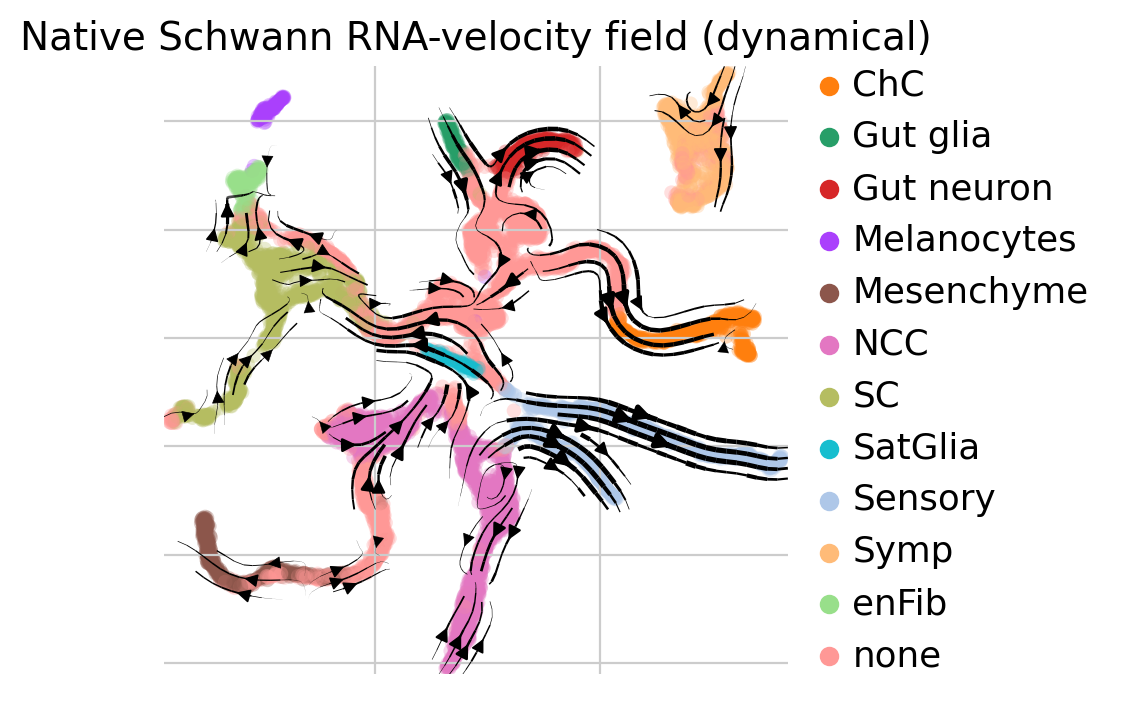

scv.pl.velocity_embedding_stream(
    adata,
    basis="umap",
    color=color_key,
    legend_loc="right margin",
    title=f"Native Schwann RNA-velocity field ({VELOCITY_MODEL})",
)

	inverse_cytotrace_pseudotime
	count	median	min	max
cell_type_new
ChC	762	0.607434	0.276986	0.829939
Common Progenitor	675	0.420570	0.267821	0.853360
Gut	245	0.797352	0.459267	0.875764
Gut neuron	294	0.525967	0.336049	0.779022

computing velocity embedding
    finished (0:00:01)

../_images/tutorials_11_schwann_downstream_analysis_8_2.png

4. Define the supervised furcation and run preflight diagnostics¶

[5]:

ROOT = "Common Progenitor"
FATES = ["Gut", "Gut neuron", "ChC"]
ORDERING_KEY = "inverse_cytotrace_pseudotime"

scorer = scCS.SingleScorer(
    adata,
    root=ROOT,
    branches=FATES,
    obs_key="cell_type_new",
)
preflight = scorer.preflight(ordering_metric=ORDERING_KEY, check_velocity=True)
preflight.display()
preflight.raise_for_errors()
scorer.build_embedding(
    ordering_metric=ORDERING_KEY,
    write_to_adata=True,
)

	level	code	message	value
0	info	furcation_valid	Root and terminal annotations are valid.	1976.000000
1	info	root_cells	Root population contains 675 cells.	675.000000
2	info	terminal_Gut	Terminal 'Gut' contains 245 cells.	245.000000
3	info	terminal_Gut neuron	Terminal 'Gut neuron' contains 294 cells.	294.000000
4	info	terminal_ChC	Terminal 'ChC' contains 762 cells.	762.000000
5	info	ordering_valid	Ordering metric is finite and non-constant amo...	1.000000
6	info	ordering_resolution	Root ordering has 337 unique values across 675...	0.499259
7	info	velocity_available	Velocity information is available.	NaN

[scCS] Scientific star built for 1976 cells in 3 dimensions.
       Root radial clipping: 0.050 low / 0.050 high
       Terminal scientific coordinates: fixed equal-radius simplex vertices (radius=1.000).

[5]:

<scCS.single.SingleScorer at 0x7308a00f1f70>

5. Fit discounted future-fate scoring¶

[6]:

FUTURE_OPTIONS = {
    "effective_horizon": 64,
    "anchor_quantile": 0.90,
    "min_anchor_cells": 10,
    "progression_scale": "rank",
    "committed_reach_threshold": 0.25,
    "committed_specificity_threshold": 0.25,
}
scorer.fit(
    scoring_mode="future_fate",
    future_fate_options=FUTURE_OPTIONS,
)
result = scorer.score(write_to_adata=True)
display(pd.Series(result.summary(), name="value").to_frame())
anchor_diagnostics = result.anchor_diagnostics_frame()
display(anchor_diagnostics)
anchor_diagnostics.to_csv(OUTPUT_DIR / "anchor_diagnostics.csv", index=False)

scCS FutureFateScoreResult
  Furcation: Common Progenitor -> ['Gut', 'Gut neuron', 'ChC']
  Effective horizon: 64 (gamma=0.984615)
  Cells: 1976 selected; 675 root
  Root affinity coverage: 1.000
  Root mean future-fate reach: 0.156
  Root mean future-fate entropy: 0.877
  Root mean future-fate specificity: 0.123
  Root mean reach-supported specificity: 0.025
  Root mean unresolved probability: 0.844
  Root mean signed progression: 0.020
  Root future-fate composition: Gut=0.139, Gut neuron=0.365, ChC=0.496
  Solver: direct; iterations=1; residual=3.315e-15
scCS FutureFateScoreResult
  Furcation: Common Progenitor -> ['Gut', 'Gut neuron', 'ChC']
  Effective horizon: 64 (gamma=0.984615)
  Cells: 1976 selected; 675 root
  Root affinity coverage: 1.000
  Root mean future-fate reach: 0.156
  Root mean future-fate entropy: 0.877
  Root mean future-fate specificity: 0.123
  Root mean reach-supported specificity: 0.025
  Root mean unresolved probability: 0.844
  Root mean signed progression: 0.020
  Root future-fate composition: Gut=0.139, Gut neuron=0.365, ChC=0.496
  Solver: direct; iterations=1; residual=3.315e-15

	value
0	scCS FutureFateScoreResult\n Furcation: Commo...

	fate	n_anchors	mean_transition_to_same_fate_population	mean_transition_to_root	mean_transition_to_other_selected_fates	mean_transition_outside_selected_path	mean_signed_progression
0	Gut	26	0.919012	0.046293	0.000000	0.034694	-0.112502
1	Gut neuron	30	0.879802	0.000610	0.009397	0.110191	-0.123093
2	ChC	79	0.948219	0.000000	0.000000	0.051781	-0.084801

6. Record the DFFP state before downstream analysis¶

[7]:

summary_table = pd.DataFrame(
    {
        "cell_id": result.cell_ids,
        "population": np.where(
            result.root_mask,
            "root",
            result.embedding.terminal_names.astype(str),
        ),
        "DFR": result.discounted_fate_reach,
        "FFS": result.future_fate_specificity,
        "RC": result.resolved_commitment,
        "UFP": result.unresolved_future_probability,
        "SOF": result.signed_ordering_flux,
    }
)
for fate_index, fate in enumerate(result.fate_names):
    summary_table[f"CFA:{fate}"] = result.conditional_fate_affinity[:, fate_index]
display(summary_table.groupby("population", observed=True).agg(
    n_cells=("DFR", "size"),
    mean_DFR=("DFR", "mean"),
    mean_FFS=("FFS", "mean"),
    mean_RC=("RC", "mean"),
    mean_SOF=("SOF", "mean"),
))
display(result.anchor_diagnostics_frame())

	n_cells	mean_DFR	mean_FFS	mean_RC	mean_SOF
population
ChC	762	0.807670	0.874619	0.744100	0.039342
Gut	245	0.387852	0.211938	0.149273	-0.155898
Gut neuron	294	0.779802	0.798632	0.639331	0.029544
root	675	0.155633	0.122960	0.024555	0.020214

	fate	n_anchors	mean_transition_to_same_fate_population	mean_transition_to_root	mean_transition_to_other_selected_fates	mean_transition_outside_selected_path	mean_signed_progression
0	Gut	26	0.919012	0.046293	0.000000	0.034694	-0.112502
1	Gut neuron	30	0.879802	0.000610	0.009397	0.110191	-0.123093
2	ChC	79	0.948219	0.000000	0.000000	0.051781	-0.084801

7. Curated neural-crest, neuronal, enteric, and glial markers¶

The marker list is intentionally broader than the three supervised fates. This helps reveal whether outside neural-crest programs are retained within the selected trajectory.

[8]:

marker_candidates = {
    "neural_crest_progenitor": ["Sox10", "Foxd3", "Tfap2a", "Plp1", "Erbb3"],
    "enteric_neuron": ["Phox2b", "Ret", "Tubb3", "Elavl3", "Elavl4"],
    "catecholaminergic": ["Th", "Dbh", "Chga", "Chgb", "Slc18a2"],
    "glial_schwann": ["Sox10", "Plp1", "S100b", "Fabp7", "Mpz"],
    "neuronal_maturation": ["Tubb3", "Map2", "Stmn2", "Snap25", "Syp"],
}
resolved_groups = {}
missing_groups = {}
for group, candidates in marker_candidates.items():
    resolved, missing = resolve_present_genes(adata, candidates)
    resolved_groups[group] = resolved
    missing_groups[group] = missing

display(
    pd.DataFrame(
        {
            "resolved": {key: ", ".join(value) for key, value in resolved_groups.items()},
            "missing": {key: ", ".join(value) for key, value in missing_groups.items()},
        }
    )
)
markers = list(dict.fromkeys(gene for genes in resolved_groups.values() for gene in genes))

	resolved	missing
neural_crest_progenitor	Tfap2a	Sox10, Foxd3, Plp1, Erbb3
enteric_neuron	Phox2b, Ret, Tubb3, Elavl3, Elavl4
catecholaminergic	Dbh, Chga, Chgb, Slc18a2	Th
glial_schwann	Fabp7, Mpz	Sox10, Plp1, S100b
neuronal_maturation	Tubb3, Stmn2, Snap25, Syp	Map2

[9]:

marker_figure = scorer.plot_gene_expression_star(
    markers,
    result,
    ncols=4,
    shared_scale=False,
    terminal_layout="ordering",
)
marker_figure.savefig(
    OUTPUT_DIR / "downstream_marker_expression_stars.png",
    dpi=200,
    bbox_inches="tight",
)
plt.show()

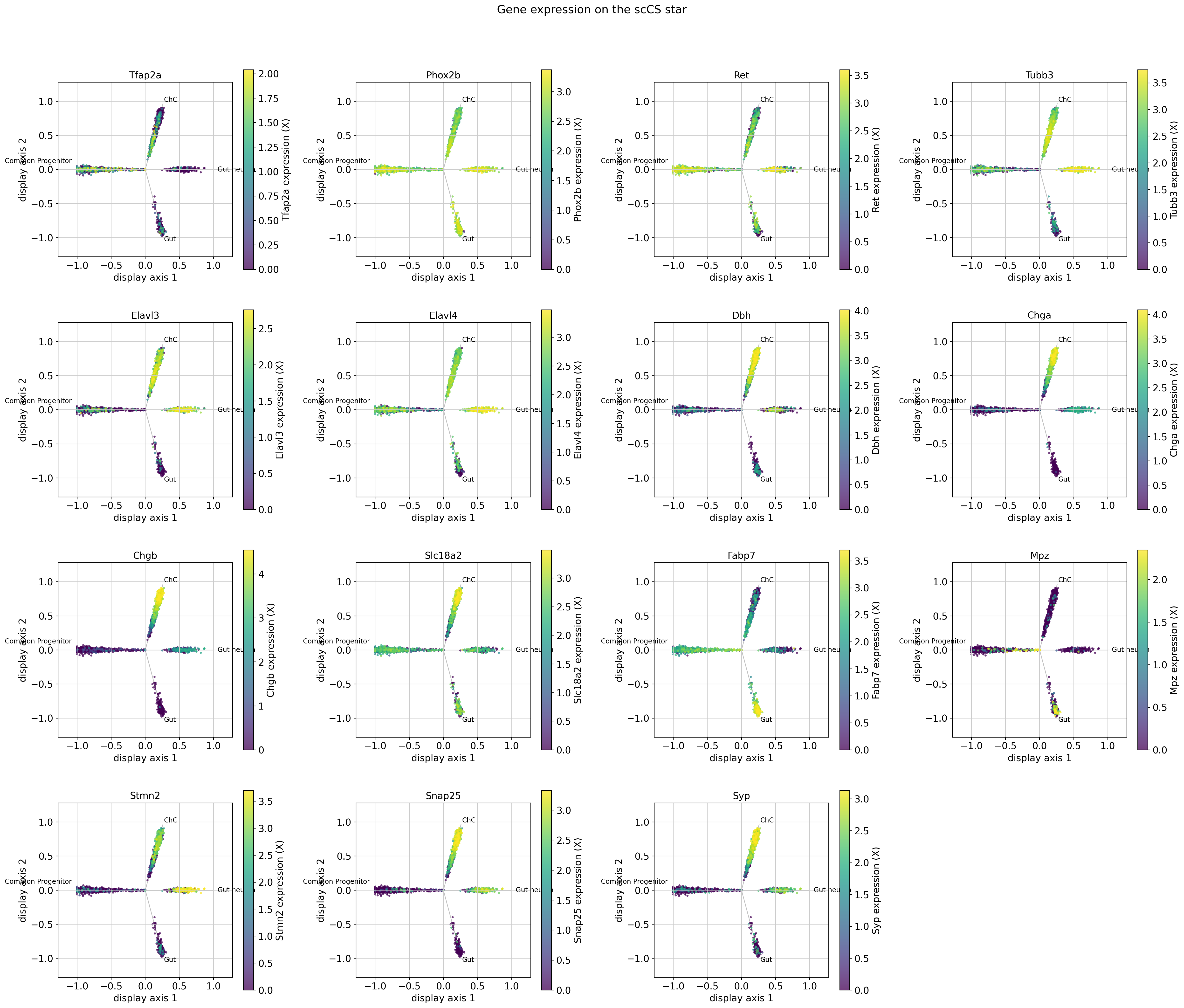

../_images/tutorials_11_schwann_downstream_analysis_17_0.png

8. Expression trends along inverse CytoTRACE and fate affinity¶

The ordering is dataset-specific. A trend along inverse CytoTRACE is not automatically a general developmental program outside this selected furcation.

[10]:

trend_genes = markers[:12]
ordering_trends = scorer.plot_expression_trends(
    trend_genes,
    result,
    x_axis="ordering",
    population="all",
    n_bins=20,
    ncols=3,
)
ordering_trends.savefig(
    OUTPUT_DIR / "expression_trends_ordering.png",
    dpi=200,
    bbox_inches="tight",
)
plt.show()

chc_trends = scorer.plot_expression_trends(
    trend_genes,
    result,
    fate="ChC",
    x_axis="affinity",
    population="root",
    n_bins=15,
    ncols=3,
)
chc_trends.savefig(
    OUTPUT_DIR / "expression_trends_ChC_CFA.png",
    dpi=200,
    bbox_inches="tight",
)
plt.show()

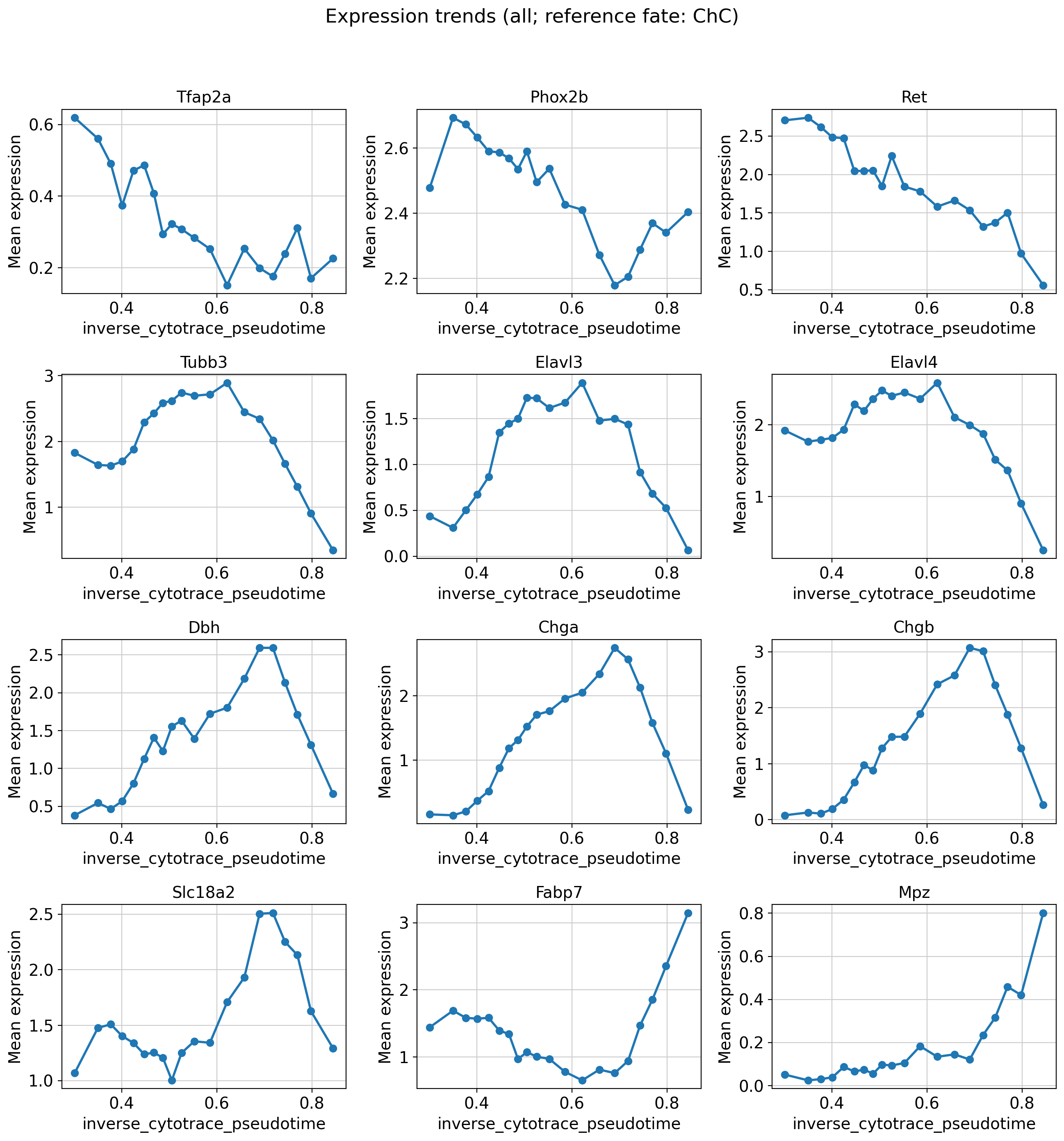

../_images/tutorials_11_schwann_downstream_analysis_19_0.png

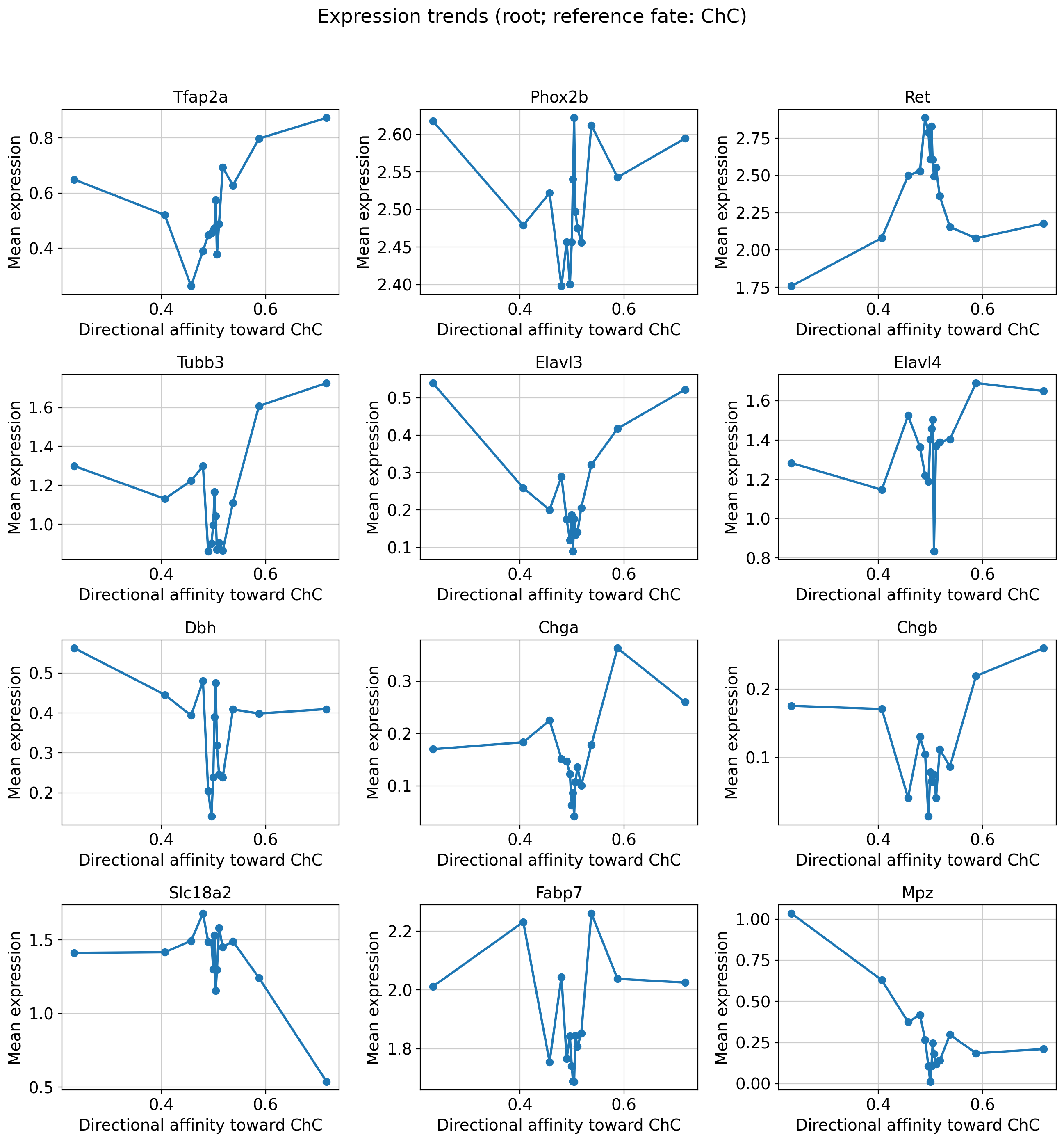

../_images/tutorials_11_schwann_downstream_analysis_19_1.png

9. Candidate commitment-associated genes¶

The public RegVelo object contains plate metadata, but plate is not guaranteed to be an independent biological replicate and can be confounded with developmental structure. The primary tutorial therefore treats cell-level results as exploratory candidates. Use replicate-level inference only when the metadata represent independent biological samples.

[11]:

association = scorer.get_commitment_associated_genes(
    outcome="future_fate_affinity",
    fate_names=FATES,
    population="root",
    inference_unit="cell_exploratory",
    pseudotime_key=ORDERING_KEY,
    min_cells=100,
    min_feature_cells=10,
    min_feature_fraction=0.01,
    n_top_genes=50,
    verbose=True,
)
for fate in FATES:
    print("\n", fate)
    display(association.top(fate, n=20))
association.export(OUTPUT_DIR, prefix="schwann_CFA_association")


[scCS] Candidate commitment-associated genes: Gut
        inference_unit=cell_exploratory; matrix=X; n_units=675; tested_genes=811
 rank     gene   effect   pvalue_adj  significant
    1   Col5a1 0.485261 3.373593e-38         True
    2    Lama4 0.459167 7.590007e-34         True
    3    Hspg2 0.438345 1.377937e-30         True
    4     Mcam 0.433175 6.778292e-30         True
    5    Lamb1 0.410938 1.230403e-26         True
    6  Col18a1 0.372944 1.160676e-21         True
    7   Tagln2 0.369894 2.515631e-21         True
    8    Sparc 0.357539 5.845513e-20         True
    9   Sorbs1 0.337323 1.150607e-17         True
   10   Camk2b 0.332076 3.902908e-17         True
   11    Postn 0.332067 3.902908e-17         True
   12    Wwtr1 0.328782 8.119904e-17         True
   13  Micall1 0.328721 8.119904e-17         True
   14     Ngfr 0.322114 3.959277e-16         True
   15    Lamc1 0.314530 2.240800e-15         True
   16     Utrn 0.308363 9.123179e-15         True
   17   Col4a2 0.308078 9.342270e-15         True
   18    Spon1 0.300278 5.328067e-14         True
   19   Col4a1 0.300102 5.329232e-14         True
   20     Irs1 0.288721 6.046698e-13         True
   21     Mest 0.287541 7.519048e-13         True
   22     Nid1 0.286447 9.170804e-13         True
   23     Sox8 0.280049 3.306476e-12         True
   24    Megf6 0.275438 8.279653e-12         True
   25   Rhbdf1 0.275248 8.352061e-12         True
   26     Lrp1 0.273525 1.151089e-11         True
   27   Akap12 0.272943 1.237408e-11         True
   28     Lmna 0.272891 1.237408e-11         True
   29  Col16a1 0.272469 1.311865e-11         True
   30   Tcirg1 0.267583 3.334933e-11         True
   31     Nid2 0.267530 3.334933e-11         True
   32  Col25a1 0.263752 6.713733e-11         True
   33     Dag1 0.263704 6.713733e-11         True
   34 Serpine2 0.262618 8.092745e-11         True
   35   Sorcs1 0.260579 1.144699e-10         True
   36   Zfp536 0.259904 1.274092e-10         True
   37  Slc35f1 0.258298 1.657678e-10         True
   38    Daam2 0.252024 5.254340e-10         True
   39   Sema3c 0.251682 5.485575e-10         True
   40   Adam12 0.250637 6.516971e-10         True
   41    Anxa2 0.248481 9.477859e-10         True
   42    Ptprj 0.247717 1.068175e-09         True
   43    Kank4 0.245180 1.626057e-09         True
   44    Ptprm 0.244766 1.719872e-09         True
   45  Afap1l2 0.243667 2.055507e-09         True
   46     Cnn2 0.241905 2.760859e-09         True
   47    Nedd9 0.241721 2.803776e-09         True
   48   Arpc1b 0.235171 8.470676e-09         True
   49    Syde1 0.234076 1.005039e-08         True
   50  Slc27a1 0.233099 1.167792e-08         True

[scCS] Candidate commitment-associated genes: Gut neuron
        inference_unit=cell_exploratory; matrix=X; n_units=675; tested_genes=811
 rank      gene    effect   pvalue_adj  significant
    1    Chrnb4  0.363621 1.717270e-20         True
    2     Celf2  0.309912 4.876724e-15         True
    3  Serpini1  0.296371 8.386112e-14         True
    4      Rbp1  0.291200 2.477431e-13         True
    5      Dll1  0.285390 7.663913e-13         True
    6       Cd9  0.272488 1.056612e-11         True
    7    Phox2b  0.257167 1.699414e-10         True
    8   Slc18a2  0.251240 4.958618e-10         True
    9     Ednrb  0.245161 1.359559e-09         True
   10      Eya1  0.239936 3.107756e-09         True
   11       Ret  0.232481 1.034079e-08         True
   12    Tmsb4x  0.230940 1.324405e-08         True
   13     Fgf13  0.226635 2.464155e-08         True
   14     Srrm4  0.218251 8.841821e-08         True
   15     Dhrs3  0.216010 1.207640e-07         True
   16    Elavl4  0.179148 1.591619e-05         True
   17       Gal  0.166248 7.015918e-05         True
   18   Fam163a  0.161599 1.182988e-04         True
   19     Ltbp1  0.157941 1.688875e-04         True
   20   Gadd45g  0.157854 1.696503e-04         True
   21     Ddah1  0.156555 1.918314e-04         True
   22      Scg5  0.141439 8.671057e-04         True
   23   Fam184b  0.140249 9.665274e-04         True
   24       Cpe  0.140187 9.682715e-04         True
   25   Slitrk6  0.139705 1.012530e-03         True
   26    Tmeff2  0.136944 1.309116e-03         True
   27   Slc29a4  0.131577 2.072815e-03         True
   28     Ube2c  0.130522 2.266135e-03         True
   29      Hes6  0.126707 3.123755e-03         True
   30     Nedd9  0.123953 3.942967e-03         True
   31     Gfra1  0.123878 3.948317e-03         True
   32      Chl1  0.116695 6.788734e-03         True
   33       Pbk  0.114952 7.728082e-03         True
   34      Mfng  0.114192 8.197750e-03         True
   35   Tmem108  0.114143 8.197750e-03         True
   36   Fam110a  0.112788 9.071960e-03         True
   37      Dlg2  0.110665 1.054014e-02         True
   38     Uchl1  0.105429 1.544315e-02         True
   39      Frzb  0.105340 1.550368e-02         True
   40      Irf8  0.097804 2.602002e-02         True
   41    Dusp26  0.096937 2.735602e-02         True
   42 Adcyap1r1  0.092824 3.481725e-02         True
   43      Gsap  0.091539 3.773970e-02         True
   44     Tgfb2  0.091182 3.829372e-02         True
   45    Mcoln3  0.090338 3.999972e-02         True
   46       Vip  0.089298 4.256151e-02         True
   47      Hes1  0.087978 4.578689e-02         True
  457     Ptprt -0.086667 4.931680e-02         True
  458   Tcp11l2 -0.086681 4.931680e-02         True
  459  Arhgef28 -0.087498 4.684093e-02         True

[scCS] Candidate commitment-associated genes: ChC
        inference_unit=cell_exploratory; matrix=X; n_units=675; tested_genes=811
 rank     gene   effect   pvalue_adj  significant
    1    Gata3 0.320293 6.171498e-15         True
    2    Tbx20 0.265919 4.297022e-10         True
    3    Htr3a 0.265101 4.297022e-10         True
    4   Cdkn1c 0.253558 2.520190e-09         True
    5   Tfap2b 0.225580 2.578904e-07         True
    6     Pls3 0.206909 3.957827e-06         True
    7    Zdbf2 0.206474 3.957827e-06         True
    8   Adam23 0.203170 5.997808e-06         True
    9    Scrg1 0.200918 7.780744e-06         True
   10    Padi2 0.194298 1.582217e-05         True
   11   Crabp2 0.188008 3.414284e-05         True
   12    Myo5b 0.186276 3.997004e-05         True
   13   Tfap2a 0.177556 1.056930e-04         True
   14    Stra6 0.170624 2.276990e-04         True
   15    Htr3b 0.170271 2.301797e-04         True
   16      Ddc 0.169418 2.476214e-04         True
   17     Cst3 0.162114 4.883255e-04         True
   18    Peg10 0.156921 8.075719e-04         True
   19 Arhgap19 0.155633 9.133913e-04         True
   20 Ndufa4l2 0.154709 9.488460e-04         True
   21     Tlx2 0.154522 9.488460e-04         True
   22     Dlk1 0.152103 1.216934e-03         True
   23    Cdh11 0.151127 1.319936e-03         True
   24    Tppp3 0.149060 1.570026e-03         True
   25    Luzp2 0.144737 2.318172e-03         True
   26      Kit 0.144215 2.406859e-03         True
   27    Tnnt3 0.143386 2.581147e-03         True
   28    Mfap4 0.139096 3.762434e-03         True
   29     Cdh6 0.132523 6.732329e-03         True
   30     Meg3 0.132477 6.732329e-03         True
   31   Col9a3 0.131680 7.167563e-03         True
   32     Ctso 0.131252 7.363572e-03         True
   33    Enpp2 0.129362 8.462421e-03         True
   34   Pdzrn3 0.128335 9.201179e-03         True
   35    Ube2c 0.126407 1.064944e-02         True
   36      Dcx 0.124276 1.242035e-02         True
   37    Moxd1 0.122963 1.383005e-02         True
   38     Bche 0.122288 1.420043e-02         True
   39     Mfng 0.119390 1.729399e-02         True
   40    Sfrp1 0.119297 1.729399e-02         True
   41     Heyl 0.118922 1.746607e-02         True
   42     Sox9 0.118813 1.746607e-02         True
   43      Ttr 0.118518 1.773551e-02         True
   44    Anxa3 0.118307 1.787826e-02         True
   45   Gas2l3 0.115158 2.240907e-02         True
   46    Nxph4 0.115114 2.240907e-02         True
   47     Qpct 0.113830 2.451357e-02         True
   48  Col23a1 0.113636 2.467865e-02         True
   49    Nr2f1 0.113270 2.520908e-02         True
   50   Crabp1 0.113070 2.539574e-02         True

 Gut

	gene	effect	pvalue	pvalue_adj	feature_mean	feature_sd	n_detected_cells	n_units	significant	absolute_effect	rank
0	Col5a1	0.485261	4.159794e-41	3.373593e-38	1.964407	0.947295	579	675	True	0.485261	1
1	Lama4	0.459167	1.871765e-36	7.590007e-34	1.773734	1.000479	544	675	True	0.459167	2
2	Hspg2	0.438345	5.097178e-33	1.377937e-30	0.918172	0.899727	378	675	True	0.438345	3
3	Mcam	0.433175	3.343177e-32	6.778292e-30	2.143249	0.945579	590	675	True	0.433175	4
4	Lamb1	0.410938	7.585717e-29	1.230403e-26	1.813068	0.940148	563	675	True	0.410938	5
5	Col18a1	0.372944	1.144933e-23	1.160676e-21	1.921003	0.971373	572	675	True	0.372944	6
6	Tagln2	0.369894	2.791699e-23	2.515631e-21	2.127654	1.016963	574	675	True	0.369894	7
7	Sparc	0.357539	9.370120e-22	5.845513e-20	2.890668	0.471350	668	675	True	0.357539	8
8	Sorbs1	0.337323	2.128126e-19	1.150607e-17	1.455308	1.035056	482	675	True	0.337323	9
9	Camk2b	0.332076	8.163270e-19	3.902908e-17	1.493340	0.928660	524	675	True	0.332076	10
10	Postn	0.332067	8.181189e-19	3.902908e-17	1.918151	1.211993	512	675	True	0.332067	11
11	Wwtr1	0.328782	1.873632e-18	8.119904e-17	2.216385	0.644893	647	675	True	0.328782	12
12	Micall1	0.328721	1.902320e-18	8.119904e-17	1.369096	1.200335	406	675	True	0.328721	13
13	Ngfr	0.322114	9.763938e-18	3.959277e-16	2.010714	1.003868	566	675	True	0.322114	14
14	Lamc1	0.314530	6.078618e-17	2.240800e-15	1.610098	0.936293	541	675	True	0.314530	15
15	Utrn	0.308363	2.587338e-16	9.123179e-15	1.601148	0.911158	542	675	True	0.308363	16
16	Col4a2	0.308078	2.764667e-16	9.342270e-15	0.674441	1.038467	223	675	True	0.308078	17
17	Spon1	0.300278	1.642437e-15	5.328067e-14	2.496251	0.617160	651	675	True	0.300278	18
18	Col4a1	0.300102	1.708508e-15	5.329232e-14	0.743728	1.077011	239	675	True	0.300102	19
19	Irs1	0.288721	2.087639e-14	6.046698e-13	1.005621	1.062153	340	675	True	0.288721	20


 Gut neuron

	gene	effect	pvalue	pvalue_adj	feature_mean	feature_sd	n_detected_cells	n_units	significant	absolute_effect	rank
0	Chrnb4	0.363621	1.693978e-22	1.717270e-20	0.884235	1.126394	282	675	True	0.363621	1
1	Celf2	0.309912	1.803967e-16	4.876724e-15	2.413041	0.481743	664	675	True	0.309912	2
2	Serpini1	0.296371	3.929374e-15	8.386112e-14	1.026285	1.147788	323	675	True	0.296371	3
3	Rbp1	0.291200	1.221914e-14	2.477431e-13	3.046686	0.412748	673	675	True	0.291200	4
4	Dll1	0.285390	4.252479e-14	7.663913e-13	0.642346	1.004160	214	675	True	0.285390	5
5	Cd9	0.272488	6.123400e-13	1.056612e-11	2.153465	0.689199	631	675	True	0.272488	6
6	Phox2b	0.257167	1.215364e-11	1.699414e-10	2.511418	0.507439	666	675	True	0.257167	7
7	Slc18a2	0.251240	3.668521e-11	4.958618e-10	1.369748	1.047893	460	675	True	0.251240	8
8	Ednrb	0.245161	1.106423e-10	1.359559e-09	3.201430	0.363540	675	675	True	0.245161	9
9	Eya1	0.239936	2.791368e-10	3.107756e-09	1.019634	0.999943	379	675	True	0.239936	10
10	Ret	0.232481	1.007303e-09	1.034079e-08	2.427413	1.007805	602	675	True	0.232481	11
11	Tmsb4x	0.230940	1.306442e-09	1.324405e-08	2.849985	0.377604	668	675	True	0.230940	12
12	Fgf13	0.226635	2.673806e-09	2.464155e-08	1.338304	1.064584	444	675	True	0.226635	13
13	Srrm4	0.218251	1.035725e-08	8.841821e-08	0.394998	0.763041	160	675	True	0.218251	14
14	Dhrs3	0.216010	1.474185e-08	1.207640e-07	1.299431	1.185342	397	675	True	0.216010	15
15	Elavl4	0.179148	2.865307e-06	1.591619e-05	1.361840	1.134247	435	675	True	0.179148	16
16	Gal	0.166248	1.436057e-05	7.015918e-05	0.218857	0.683393	75	675	True	0.166248	17
17	Fam163a	0.161599	2.494340e-05	1.182988e-04	0.810298	1.021022	287	675	True	0.161599	18
18	Ltbp1	0.157941	3.810902e-05	1.688875e-04	1.692607	1.011550	530	675	True	0.157941	19
19	Gadd45g	0.157854	3.849033e-05	1.696503e-04	0.613186	0.882771	250	675	True	0.157854	20

ChC

	gene	effect	pvalue	pvalue_adj	feature_mean	feature_sd	n_detected_cells	n_units	significant	absolute_effect	rank
0	Gata3	0.320293	1.521948e-17	6.171498e-15	0.256525	0.683459	95	675	True	0.320293	1
1	Tbx20	0.265919	2.257416e-12	4.297022e-10	0.157420	0.546793	60	675	True	0.265919	2
2	Htr3a	0.265101	2.649212e-12	4.297022e-10	0.220528	0.710026	66	675	True	0.265101	3
3	Cdkn1c	0.253558	2.389436e-11	2.520190e-09	2.755475	0.681492	668	675	True	0.253558	4
4	Tfap2b	0.225580	3.179907e-09	2.578904e-07	0.435354	0.732454	198	675	True	0.225580	5
5	Pls3	0.206909	5.944413e-08	3.957827e-06	2.281151	0.961091	596	675	True	0.206909	6
6	Zdbf2	0.206474	6.344236e-08	3.957827e-06	0.520088	0.832358	208	675	True	0.206474	7
7	Adam23	0.203170	1.035380e-07	5.997808e-06	0.961757	0.977666	372	675	True	0.203170	8
8	Scrg1	0.200918	1.439102e-07	7.780744e-06	0.359461	0.726299	142	675	True	0.200918	9
9	Padi2	0.194298	3.706797e-07	1.582217e-05	0.652577	0.964456	229	675	True	0.194298	10
10	Crabp2	0.188008	8.840934e-07	3.414284e-05	0.457361	0.799198	182	675	True	0.188008	11
11	Myo5b	0.186276	1.117582e-06	3.997004e-05	0.160684	0.535615	60	675	True	0.186276	12
12	Tfap2a	0.177556	3.518755e-06	1.056930e-04	0.539686	0.682610	299	675	True	0.177556	13
13	Stra6	0.170624	8.422899e-06	2.276990e-04	0.299689	0.709857	112	675	True	0.170624	14
14	Htr3b	0.170271	8.798483e-06	2.301797e-04	0.062199	0.343268	25	675	True	0.170271	15
15	Ddc	0.169418	9.770513e-06	2.476214e-04	0.781672	0.951874	301	675	True	0.169418	16
16	Cst3	0.162114	2.348298e-05	4.883255e-04	2.381853	0.350566	671	675	True	0.162114	17
17	Peg10	0.156921	4.281824e-05	8.075719e-04	1.080348	0.945440	429	675	True	0.156921	18
18	Arhgap19	0.155633	4.955514e-05	9.133913e-04	0.890333	1.061286	293	675	True	0.155633	19
19	Ndufa4l2	0.154709	5.499187e-05	9.488460e-04	0.115761	0.401763	60	675	True	0.154709	20

[11]:

['tutorial_outputs/schwann_downstream/schwann_CFA_association_Gut.csv',
 'tutorial_outputs/schwann_downstream/schwann_CFA_association_Gut_neuron.csv',
 'tutorial_outputs/schwann_downstream/schwann_CFA_association_ChC.csv',
 'tutorial_outputs/schwann_downstream/schwann_CFA_association_metadata.json']

[12]:

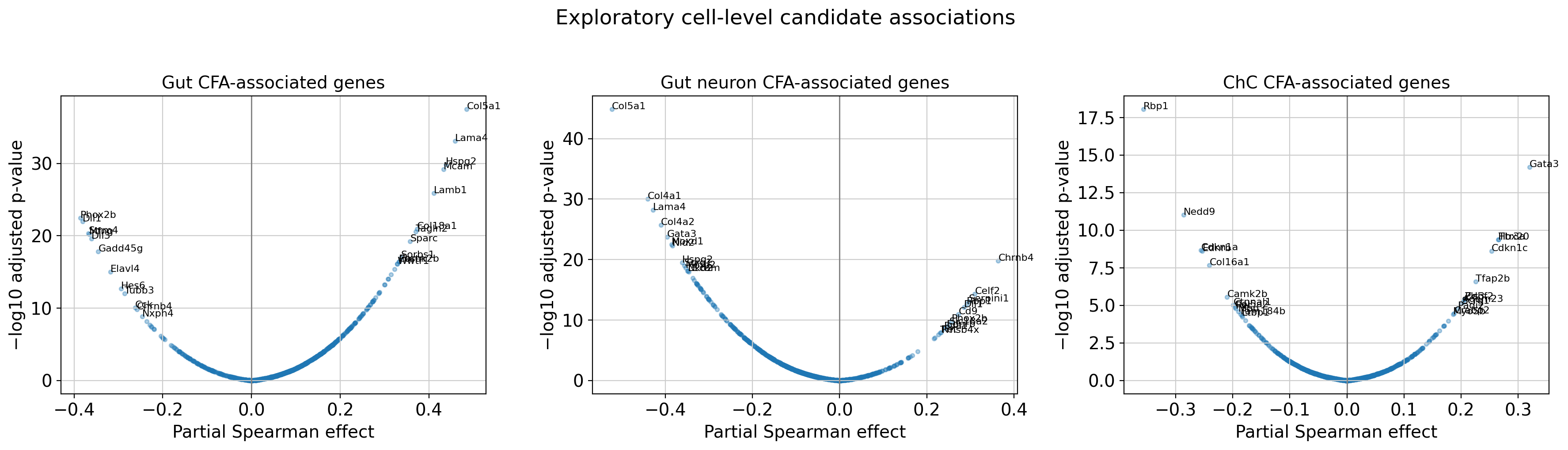

fig, axes = plt.subplots(1, 3, figsize=(18, 5))
for axis, fate in zip(axes, FATES):
    table = association.tables[fate].copy()
    shown = pd.concat(
        [
            table.nlargest(12, "effect"),
            table.nsmallest(12, "effect"),
        ]
    ).drop_duplicates("gene")
    axis.scatter(
        table["effect"],
        -np.log10(table["pvalue_adj"].clip(lower=1e-300)),
        s=10,
        alpha=0.35,
    )
    for row in shown.itertuples():
        axis.text(
            row.effect,
            -np.log10(max(row.pvalue_adj, 1e-300)),
            row.gene,
            fontsize=8,
        )
    axis.axvline(0, color="0.5", linewidth=1)
    axis.set_title(f"{fate} CFA-associated genes")
    axis.set_xlabel("Partial Spearman effect")
    axis.set_ylabel("−log10 adjusted p-value")
fig.suptitle("Exploratory cell-level candidate associations", y=1.02)
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "CFA_association_volcanoes.png", dpi=200, bbox_inches="tight")
plt.show()

../_images/tutorials_11_schwann_downstream_analysis_22_0.png

10. Fate markers versus the Common Progenitor root¶

[13]:

fate_markers = scorer.get_fate_markers(
    method="wilcoxon",
    fdr_threshold=0.05,
    logfc_threshold=0.25,
    min_cells=10,
    verbose=True,
)
for fate, table in fate_markers.items():
    table.to_csv(OUTPUT_DIR / f"fate_markers_{fate}.csv", index=False)
    print("\n", fate)
    display(table.head(20))

ranking genes
    finished (0:00:01)

[scCS] Fate markers: Gut vs Common Progenitor; significant=385
 rank    gene  logfoldchange    pvalue_adj
   13   Fabp1       8.236076  1.852917e-25
   14   Cryab       8.228703 2.522689e-100
   15   Ndrg1       7.812272  2.877590e-72
   16     Fos       6.614855  6.542442e-83
   17   Tppp3       6.455219  1.639030e-72
   18  Casp12       6.153129  6.797695e-16
   20   Pmp22       5.994967  3.753299e-63
   21   Ndrg2       5.870495  2.095392e-62
   22    Apoe       5.813390  3.121022e-90
   23   Grb14       5.675857  8.762239e-41
   24   Capn6       5.572762  1.027089e-79
   25 Plekhb1       5.477344  5.923082e-96
   26    Egr1       5.381674  2.231478e-51
   27    Emp1       5.322681  1.072098e-06
   28   Apoa1       5.297144  1.616097e-21
   29    Gjc3       5.103462  4.848185e-25
   30   Socs3       5.052036  3.301412e-37
   31   Lpar1       5.037060  2.942423e-27
   33    Nsg2       4.979799  2.958777e-20
   34    Xaf1       4.839970  7.558513e-03
ranking genes
    finished (0:00:00)

[scCS] Fate markers: Gut neuron vs Common Progenitor; significant=521
 rank     gene  logfoldchange    pvalue_adj
   25   Mapk10       9.515570  5.563149e-95
   26  Slc10a4       9.027522  1.598054e-98
   27    Stmn3       8.533908 7.995518e-109
   28   Phox2a       8.452982  2.821332e-98
   29    Stmn2       8.388582  4.718294e-58
   30  Slc7a14       8.151701  1.205795e-42
   31 Cacna2d1       8.143806  1.524989e-99
   32   Snap25       8.140341  3.889462e-85
   33     Syt1       8.046061 6.598679e-103
   34     St18       7.881558  4.633897e-61
   35    Prkcb       7.871738  5.749859e-54
   36   Snap91       7.797833  2.292938e-63
   37    Fstl5       7.718244  7.136185e-60
   38    Tubb3       7.637022 1.885568e-123
   39   Elavl3       7.629544 7.394013e-109
   40   Resp18       7.525756  2.565660e-35
   41     Nsg2       7.388521  2.330766e-64
   42 Arhgef28       7.375024  6.738622e-62
   43   Cyb561       7.235309  1.455032e-52
   44     Scg3       7.233091  1.026868e-98
ranking genes
    finished (0:00:00)

[scCS] Fate markers: ChC vs Common Progenitor; significant=589
 rank     gene  logfoldchange    pvalue_adj
   44    Agtr2      11.639993 8.763468e-173
   45     Chgb      11.236894 1.205038e-173
   46  Slc18a1      11.084648 2.183621e-164
   47   Cyb561      10.190985 5.745513e-168
   48     Dgkk      10.150080 1.713679e-128
   49     Chga       9.984201 8.530010e-176
   50    Epas1       9.913052 7.420596e-105
   51   Cacng3       9.367556  8.786909e-32
   52   Phox2a       9.352201 4.642800e-181
   53    Disp2       9.280839 5.198102e-135
   54      Nrk       9.265883 8.040072e-108
   55 Ndufa4l2       9.221559 1.092656e-185
   56    Gata3       9.153562 1.261902e-207
   57    Sytl4       9.097786 2.383894e-124
   58  Slc35d3       9.087227  5.378523e-93
   59     Dlk1       9.061609 3.952032e-183
   60   Ppfia2       9.013965  2.820730e-77
   61     Isl1       8.909274 1.244298e-132
   62   Snap25       8.890081 2.860715e-156
   63    Tbx20       8.880977 4.063071e-186

 Gut

	gene	score	logfoldchange	pvalue	pvalue_adj	pct_terminal	significant	analysis_type	rank
0	Nat8	0.284198	25.702930	7.762587e-01	1.000000e+00	0.012245	False	terminal_annotation_marker_vs_root	1
1	Sh2d4a	0.189465	25.398708	8.497282e-01	1.000000e+00	0.008163	False	terminal_annotation_marker_vs_root	2
2	Hnf4a	0.189465	24.745798	8.497282e-01	1.000000e+00	0.008163	False	terminal_annotation_marker_vs_root	3
3	Aadac	0.378931	24.689800	7.047394e-01	1.000000e+00	0.016327	False	terminal_annotation_marker_vs_root	4
4	Tfec	0.094733	24.473082	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	5
5	Casp4	0.094733	24.267618	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	6
6	Oas1a	0.094733	24.173471	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	7
7	Tpsb2	0.094733	23.755999	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	8
8	Clec9a	0.094733	23.206762	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	9
9	Ckm	0.094733	22.682152	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	10
10	Cd48	0.094733	22.661781	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	11
11	Tnfsf10	0.094733	22.321970	9.245272e-01	1.000000e+00	0.004082	False	terminal_annotation_marker_vs_root	12
12	Fabp1	10.697351	8.236076	1.047301e-26	1.852917e-25	0.465306	True	terminal_annotation_marker_vs_root	13
13	Cryab	21.590763	8.228703	2.193643e-103	2.522689e-100	0.991837	True	terminal_annotation_marker_vs_root	14
14	Ndrg1	18.239613	7.812272	2.502252e-74	2.877590e-72	0.832653	True	terminal_annotation_marker_vs_root	15
15	Fos	19.580326	6.614855	2.275632e-85	6.542442e-83	0.971429	True	terminal_annotation_marker_vs_root	16
16	Tppp3	18.276102	6.455219	1.282719e-74	1.639030e-72	0.873469	True	terminal_annotation_marker_vs_root	17
17	Casp12	8.370576	6.153129	5.733708e-17	6.797695e-16	0.375510	True	terminal_annotation_marker_vs_root	18
18	Fmo1	1.103249	6.091897	2.699189e-01	5.878915e-01	0.048980	False	terminal_annotation_marker_vs_root	19
19	Pmp22	17.034332	5.994967	4.569234e-65	3.753299e-63	0.848980	True	terminal_annotation_marker_vs_root	20


 Gut neuron

	gene	score	logfoldchange	pvalue	pvalue_adj	pct_terminal	significant	analysis_type	rank
0	Coro6	0.252798	25.685667	0.800424	1.0	0.010204	False	terminal_annotation_marker_vs_root	1
1	Steap4	0.168532	24.806101	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	2
2	Hnf4a	0.252798	24.803745	0.800424	1.0	0.010204	False	terminal_annotation_marker_vs_root	3
3	Oas1a	0.168532	24.519466	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	4
4	Aadac	0.168532	24.462461	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	5
5	Clec5a	0.168532	24.336710	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	6
6	Ces2g	0.168532	24.248285	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	7
7	Gm6249	0.168532	24.226959	0.866165	1.0	0.006803	False	terminal_annotation_marker_vs_root	8
8	Sh2d4a	0.084266	24.171911	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	9
9	Hepacam	0.084266	24.071209	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	10
10	Il5ra	0.084266	24.004265	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	11
11	Trim60	0.084266	23.881166	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	12
12	Ccr1	0.084266	23.613234	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	13
13	Clec9a	0.084266	23.599775	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	14
14	Pbld1	0.084266	23.406792	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	15
15	Cyp2c70	0.084266	23.268192	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	16
16	Mmp8	0.084266	23.258142	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	17
17	Trim54	0.084266	23.216749	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	18
18	Panx3	0.084266	23.185026	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	19
19	Lcn2	0.084266	23.064432	0.932845	1.0	0.003401	False	terminal_annotation_marker_vs_root	20

ChC

	gene	score	logfoldchange	pvalue	pvalue_adj	pct_terminal	significant	analysis_type	rank
0	Coro6	0.472877	25.427753	0.636301	0.947858	0.014436	False	terminal_annotation_marker_vs_root	1
1	Oas1a	0.343911	24.870636	0.730914	1.000000	0.010499	False	terminal_annotation_marker_vs_root	2
2	Fcgr3	0.386899	24.817179	0.698831	1.000000	0.011811	False	terminal_annotation_marker_vs_root	3
3	Mx1	0.214944	24.580645	0.829811	1.000000	0.006562	False	terminal_annotation_marker_vs_root	4
4	Pbld1	0.214944	24.179266	0.829811	1.000000	0.006562	False	terminal_annotation_marker_vs_root	5
5	Pck1	0.257933	24.114807	0.796459	1.000000	0.007874	False	terminal_annotation_marker_vs_root	6
6	Ckm	0.214944	23.798058	0.829811	1.000000	0.006562	False	terminal_annotation_marker_vs_root	7
7	Gm6249	0.128966	23.489582	0.897384	1.000000	0.003937	False	terminal_annotation_marker_vs_root	8
8	Chrna2	0.085978	23.459509	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	9
9	Hrg	0.085978	23.173508	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	10
10	Casp4	0.085978	23.156532	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	11
11	Lcn2	0.085978	23.064037	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	12
12	Panx3	0.085978	23.010096	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	13
13	Retnlg	0.085978	22.983826	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	14
14	Ckmt2	0.128966	22.862743	0.897384	1.000000	0.003937	False	terminal_annotation_marker_vs_root	15
15	Gbp2	0.128966	22.860304	0.897384	1.000000	0.003937	False	terminal_annotation_marker_vs_root	16
16	Lmod3	0.171955	22.823427	0.863473	1.000000	0.005249	False	terminal_annotation_marker_vs_root	17
17	Hepacam	0.085978	22.816339	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	18
18	Nodal	0.085978	22.800182	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	19
19	Tnmd	0.085978	22.797791	0.931484	1.000000	0.002625	False	terminal_annotation_marker_vs_root	20

[14]:

overlap_rows = []
for fate in FATES:
    association_genes = set(association.top(fate, n=100, positive_only=True)["gene"])
    marker_genes = set(fate_markers[fate].head(100)["gene"])
    overlap_rows.append(
        {
            "fate": fate,
            "top_association_genes": len(association_genes),
            "top_marker_genes": len(marker_genes),
            "overlap": len(association_genes & marker_genes),
            "overlap_genes": ", ".join(sorted(association_genes & marker_genes)),
        }
    )
overlap_table = pd.DataFrame(overlap_rows)
display(overlap_table)
overlap_table.to_csv(OUTPUT_DIR / "association_marker_overlap.csv", index=False)

	fate	top_association_genes	top_marker_genes	overlap	overlap_genes
0	Gut	100	100	14	Afap1l2, Col4a1, Cryab, Entpd2, Ndrg2, Nfia, P...
1	Gut neuron	100	100	19	Adcyap1r1, Chrnb2, Chrnb4, Cplx1, Dlg2, Doc2b,...
2	ChC	100	100	14	AW551984, Dlk1, Gata2, Gata3, Isl1, Meg3, Nduf...

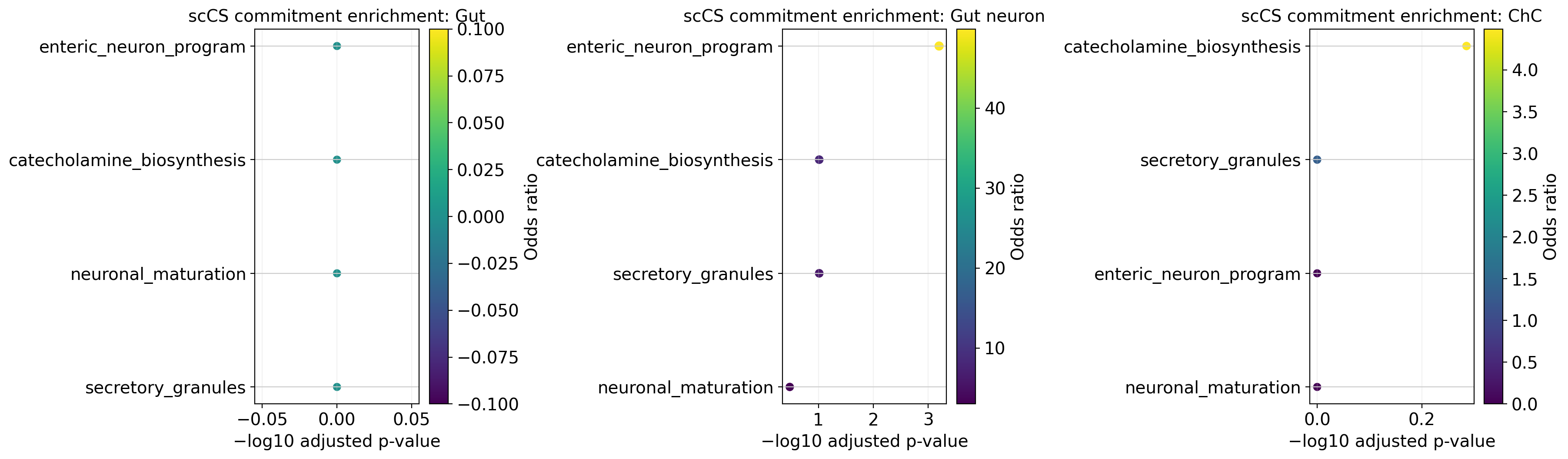

11. Local pathway enrichment¶

The local mapping below is a compact tutorial resource. Replace it with a versioned neural-crest/enteric-neuron GMT collection for final biological analysis.

[15]:

local_gene_sets = {
    "neural_crest_progenitor_program": {
        "Sox10", "Foxd3", "Tfap2a", "Tfap2b", "Erbb3", "Plp1",
    },
    "enteric_neuron_program": {
        "Phox2b", "Ret", "Tubb3", "Elavl3", "Elavl4", "Sox10",
    },
    "catecholamine_biosynthesis": {
        "Th", "Dbh", "Ddc", "Slc18a2", "Chga", "Chgb",
    },
    "neuronal_maturation": {
        "Tubb3", "Map2", "Stmn2", "Snap25", "Syp", "Elavl3",
    },
    "schwann_glial_program": {
        "Sox10", "Plp1", "S100b", "Fabp7", "Mpz", "Erbb3",
    },
    "secretory_granules": {
        "Chga", "Chgb", "Scg2", "Scg3", "Scg5", "Cpe",
    },
}
present = set(map(str, adata.var_names))
local_gene_sets = {
    term: sorted(set(genes) & present)
    for term, genes in local_gene_sets.items()
}
display(pd.Series({term: len(genes) for term, genes in local_gene_sets.items()}, name="n_genes"))

neural_crest_progenitor_program    2
enteric_neuron_program             5
catecholamine_biosynthesis         5
neuronal_maturation                5
schwann_glial_program              2
secretory_granules                 6
Name: n_genes, dtype: int64

[16]:

enrichment = scCS.run_commitment_enrichment(
    association,
    gene_sets=local_gene_sets,
    background=adata.var_names,
    direction="positive",
    effect_threshold=0.05,
    significant_only=False,
    max_genes=150,
    min_query_genes=3,
    min_set_size=3,
    fdr_threshold=0.10,
    verbose=True,
)
enrichment.export(OUTPUT_DIR, prefix="schwann_local_enrichment")

fig, axes = plt.subplots(1, 3, figsize=(18, 5.5))
for axis, fate in zip(axes, FATES):
    scCS.plot_enrichment_dotplot(
        enrichment,
        fate,
        n_terms=10,
        significant_only=False,
        ax=axis,
    )
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "local_enrichment_dotplots.png", dpi=200, bbox_inches="tight")
plt.show()

[scCS] Enrichment Gut: query_genes=150, significant_terms=0
[scCS] Enrichment Gut neuron: query_genes=89, significant_terms=3
[scCS] Enrichment ChC: query_genes=150, significant_terms=0

../_images/tutorials_11_schwann_downstream_analysis_28_1.png

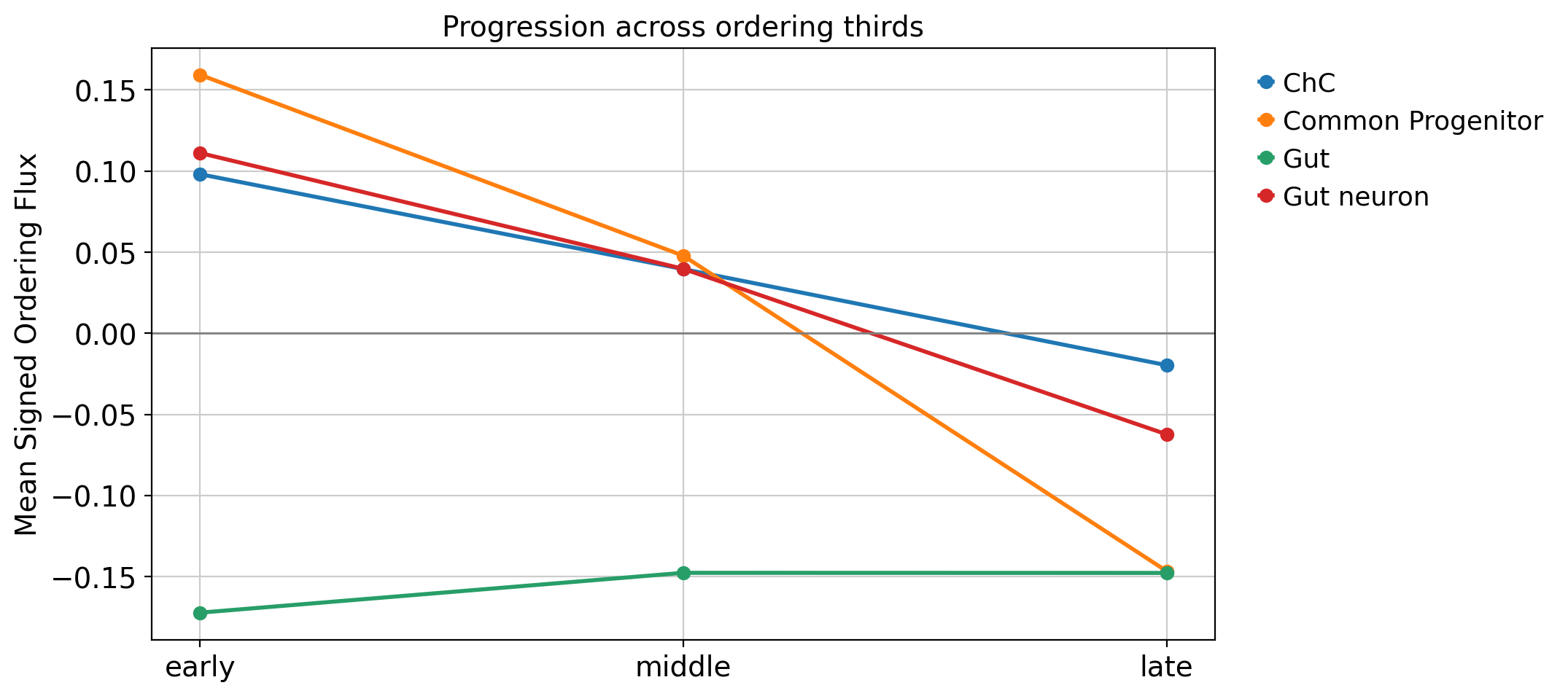

12. Early, middle, and late profiles within each annotated population¶

A sign change in SOF across ordering thirds can indicate a turn or return. Uniformly negative SOF supports broadly retrograde behavior.

[17]:

selected_obs = adata.obs.loc[result.cell_ids, ["cell_type_new", ORDERING_KEY]].copy()
selected_obs["DFR"] = result.discounted_fate_reach
selected_obs["FFS"] = result.future_fate_specificity
selected_obs["SOF"] = result.signed_ordering_flux
selected_obs["ordering_third"] = "middle"

for population, indices in selected_obs.groupby("cell_type_new", observed=True).groups.items():
    ranks = selected_obs.loc[indices, ORDERING_KEY].rank(method="first")
    selected_obs.loc[indices, "ordering_third"] = pd.qcut(
        ranks,
        q=3,
        labels=["early", "middle", "late"],
    ).astype(str)

third_summary = (
    selected_obs.groupby(
        ["cell_type_new", "ordering_third"],
        observed=True,
    )
    .agg(
        n_cells=("DFR", "size"),
        mean_DFR=("DFR", "mean"),
        mean_FFS=("FFS", "mean"),
        mean_SOF=("SOF", "mean"),
        forward_fraction=("SOF", lambda values: float(np.mean(values > 0))),
    )
    .reset_index()
)
display(third_summary)

fig, ax = plt.subplots(figsize=(11, 5))
for population, table in third_summary.groupby("cell_type_new", observed=True):
    ordered = table.set_index("ordering_third").reindex(["early", "middle", "late"])
    ax.plot(
        ["early", "middle", "late"],
        ordered["mean_SOF"],
        marker="o",
        linewidth=2,
        label=population,
    )
ax.axhline(0, color="0.5", linewidth=1)
ax.set_ylabel("Mean Signed Ordering Flux")
ax.set_title("Progression across ordering thirds")
ax.legend(frameon=False, bbox_to_anchor=(1.02, 1), loc="upper left")
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "ordering_thirds_SOF.png", dpi=200, bbox_inches="tight")
plt.show()

	cell_type_new	ordering_third	n_cells	mean_DFR	mean_FFS	mean_SOF	forward_fraction
0	ChC	early	254	0.636289	0.713421	0.098101	0.877953
1	ChC	late	254	0.942397	0.992322	-0.019654	0.401575
2	ChC	middle	254	0.844323	0.918113	0.039577	0.744094
3	Common Progenitor	early	225	0.157488	0.138898	0.159385	1.000000
4	Common Progenitor	late	225	0.140006	0.096235	-0.146589	0.160000
5	Common Progenitor	middle	225	0.169404	0.133746	0.047846	0.728889
6	Gut	early	82	0.257597	0.070739	-0.172219	0.256098
7	Gut	late	82	0.569632	0.439998	-0.147717	0.000000
8	Gut	middle	81	0.335691	0.124006	-0.147658	0.061728
9	Gut neuron	early	98	0.719186	0.650092	0.111157	0.938776
10	Gut neuron	late	98	0.847266	0.913358	-0.062259	0.122449
11	Gut neuron	middle	98	0.772952	0.832447	0.039734	0.775510

../_images/tutorials_11_schwann_downstream_analysis_30_1.png

13. Replicate-level inference template¶

When sample_id is a genuine biological replicate:

association_replicate = scorer.get_commitment_associated_genes(
    outcome="future_fate_affinity",
    fate_names=FATES,
    population="root",
    inference_unit="replicate",
    replicate_key="sample_id",
    condition_key="condition",
    pseudotime_key=ORDERING_KEY,
    min_replicates=6,
    min_cells_per_replicate=5,
)

Do not use plate, library, or pseudo-condition labels as biological replicates unless the study design justifies that interpretation.

14. Export the complete downstream record¶

[18]:

summary_table.to_csv(OUTPUT_DIR / "cell_level_DFFP_metrics.csv", index=False)
third_summary.to_csv(OUTPUT_DIR / "ordering_thirds_summary.csv", index=False)
adata.write_h5ad(OUTPUT_DIR / "schwann_downstream_analysis.h5ad")

metadata = {
    "scoring_method": "Discounted Future-Fate Propagation",
    "scoring_mode": "future_fate",
    "velocity_model": "dynamical",
    "ordering_key": ORDERING_KEY,
    "effective_horizon": FUTURE_OPTIONS["effective_horizon"],
    "anchor_quantile": FUTURE_OPTIONS["anchor_quantile"],
    "association_scope": "cell_exploratory_candidate_generation",
    "enrichment_source": "local_in_notebook_mapping",
    "retrograde_Gut_is_not_corrected": True,
}
pd.Series(metadata).to_json(
    OUTPUT_DIR / "downstream_metadata.json",
    indent=2,
)
print("Outputs written to", OUTPUT_DIR.resolve())

Outputs written to /home/emil/notebooks/08-tutorials/tutorial_outputs/schwann_downstream

Interpretation checklist¶

Treat inverse CytoTRACE as benchmark-specific.
Preserve retrograde Gut SOF.
Distinguish root commitment associations from terminal identity markers.
Do not call exploratory cell-level associations causal drivers.
Record the exact gene-set collection and tested-gene background.
Use independent biological replicates for formal inference.
