Method selection: Discounted Future-Fate Propagation¶
This notebook explains, visually and mathematically, why scCS uses Discounted Future-Fate Propagation (DFFP) for future identity.
DFFP is not a transformation of UMAP arrows into the star. It propagates probability on the original RNA-velocity transition graph with geometric stopping. The star remains a standardized display.
The notebook introduces the public terminology:
Conditional Fate Affinity (CFA) — relative identity among selected fates;
Discounted Fate Reach (DFR) — probability of reaching a selected fate;
Future-Fate Specificity (FFS) — decisiveness among selected fates;
Resolved Commitment (RC) — DFR × FFS;
Unresolved Future Probability (UFP) — probability not assigned before stopping;
Signed Ordering Flux (SOF) — forward or retrograde expected ordering change.
1. Imports and reproducibility¶
The examples are synthetic so that every assumption is visible. They use the same public solver called by scoring_mode="future_fate".
[1]:
from __future__ import annotations
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy import sparse
import scCS
SEED = 20260714
rng = np.random.default_rng(SEED)
plt.rcParams["figure.dpi"] = 110
print("scCS", scCS.__version__)
scCS 0.8.0.dev34
2. Mathematical definition of DFFP¶
Let \(P\) be the row-stochastic RNA-velocity transition matrix and let \(A\) identify selected and optional competing outcome anchors. Anchor states are made absorbing. For an effective horizon \(h\),
The discounted outcome matrix \(H\) satisfies
For transient block \(Q\) and transient-to-anchor block \(R\),
Unresolved Future Probability is \(U_i=1-\sum_oH_{io}\). This is why DFFP can allow leave-and-return paths without assigning every sufficiently long random walk to a fate.
[2]:
horizons_for_stopping = [8, 32, 64, 128]
steps = np.arange(0, 260)
fig, axes = plt.subplots(1, 2, figsize=(13, 4.6))
for horizon in horizons_for_stopping:
gamma = horizon / (horizon + 1.0)
survival = gamma ** steps
stop_probability = (1.0 - gamma) * gamma ** steps
axes[0].plot(steps, survival, linewidth=2, label=f"h={horizon}")
axes[1].plot(steps, stop_probability, linewidth=2, label=f"h={horizon}")
axes[0].set_title("Probability that propagation continues")
axes[1].set_title("Probability of stopping after each step")
for axis in axes:
axis.set_xlabel("Graph transition step")
axis.set_ylabel("Probability")
axes[0].legend(frameon=False)

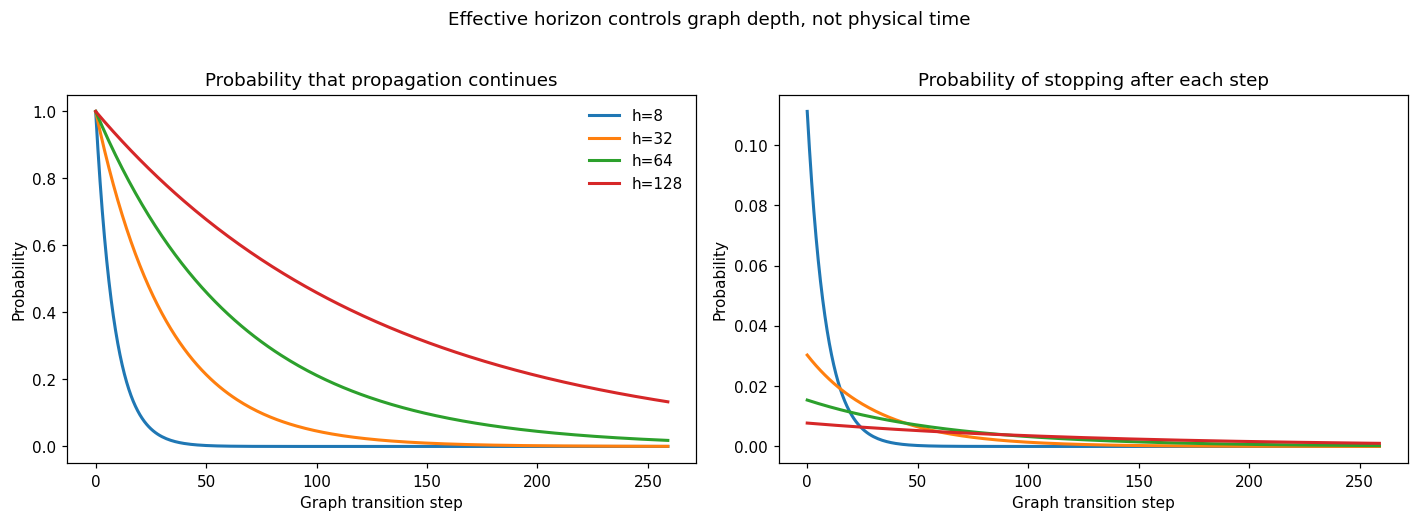

fig.suptitle("Effective horizon controls graph depth, not physical time", y=1.02)
fig.tight_layout()
plt.show()
3. From outcome probability to scCS metrics¶
For selected-fate probabilities \(p_{if}\):
CFA describes which future, DFR describes how much future is resolved, FFS describes how decisive the distribution is, and RC combines resolution with decisiveness. They should not be collapsed into one unlabeled score.
4. A leave-and-return source graph¶
The selected furcation contains a root, an intermediate state, and two fate anchors. One valid path temporarily leaves the selected cells and returns before reaching fate A.
A first-exit model calls the excursion irreversible escape. DFFP keeps the outside state in the original graph and therefore preserves the return.
[3]:
state_names = ["root", "intermediate", "A anchor", "outside", "B anchor"]
transition = sparse.csr_matrix(
np.array(
[
[0.00, 0.00, 0.00, 1.00, 0.00],
[0.00, 0.00, 0.65, 0.00, 0.35],
[0.00, 0.00, 1.00, 0.00, 0.00],
[0.00, 1.00, 0.00, 0.00, 0.00],
[0.00, 0.00, 0.00, 0.00, 1.00],
],
dtype=float,
)
)
anchors = np.zeros((5, 2), dtype=bool)
anchors[2, 0] = True
anchors[4, 1] = True
positions = {
0: (-1.5, 0.0),
1: (0.0, 0.0),
2: (1.4, 0.8),
3: (-0.4, 1.2),
4: (1.4, -0.8),
}
node_groups = ["selected", "selected", "fate A", "outside", "fate B"]
group_colors = {
"selected": "#4c78a8",
"outside": "#9d9da1",
"fate A": "#f58518",
"fate B": "#54a24b",
}
fig, ax = plt.subplots(figsize=(8, 5))
for source in range(transition.shape[0]):
start, stop = transition.indptr[source : source + 2]
for target, weight in zip(
transition.indices[start:stop],
transition.data[start:stop],
):
if source == target or weight == 0:
continue
x0, y0 = positions[source]
x1, y1 = positions[int(target)]
ax.annotate(
"",
xy=(x1, y1),
xytext=(x0, y0),
arrowprops={
"arrowstyle": "->",
"linewidth": 1.5 + 2.0 * float(weight),
"alpha": 0.8,
"color": "0.25",
"shrinkA": 16,
"shrinkB": 16,
},
)
for index, name in enumerate(state_names):
x, y = positions[index]
ax.scatter(
x,
y,
s=550,
color=group_colors[node_groups[index]],
edgecolor="black",
zorder=3,
)
ax.text(x, y - 0.23, name, ha="center", va="top")

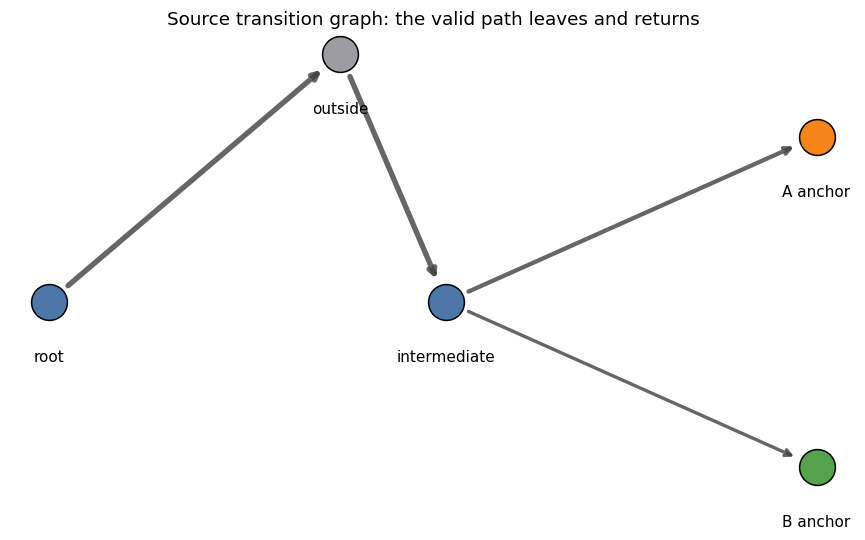

ax.set_title("Source transition graph: the valid path leaves and returns")
ax.set_axis_off()
fig.tight_layout()
plt.show()
5. DFFP across effective horizons¶
For effective horizon (h), the geometric continuation probability is
[ \gamma `= :nbsphinx-math:frac{h}{h+1}`. ]
DFFP solves the discounted hitting probabilities for all supplied anchors. Unresolved probability remains explicit instead of being forced into a fate.
[4]:
horizons = [2, 4, 8, 16, 32, 64, 128]
records = []
solutions = {}
for horizon in horizons:
solution = scCS.solve_discounted_outcomes(
transition,
anchors,
("A", "B"),
effective_horizon=horizon,
)
solutions[horizon] = solution
records.append(
{
"effective_horizon": horizon,
"P(A)": solution.probability[0, 0],
"P(B)": solution.probability[0, 1],
"DFR": solution.probability[0].sum(),
"UFP": solution.unresolved_probability[0],
}
)
horizon_table = pd.DataFrame(records)
display(horizon_table)
fig, ax = plt.subplots(figsize=(8, 5))
for column in ["P(A)", "P(B)", "DFR", "UFP"]:
ax.plot(
horizon_table["effective_horizon"],
horizon_table[column],
marker="o",
linewidth=2,
label=column,
)
ax.set_xscale("log", base=2)
ax.set_ylim(-0.02, 1.02)
ax.set_xlabel("Effective horizon")
ax.set_ylabel("Probability from the root")

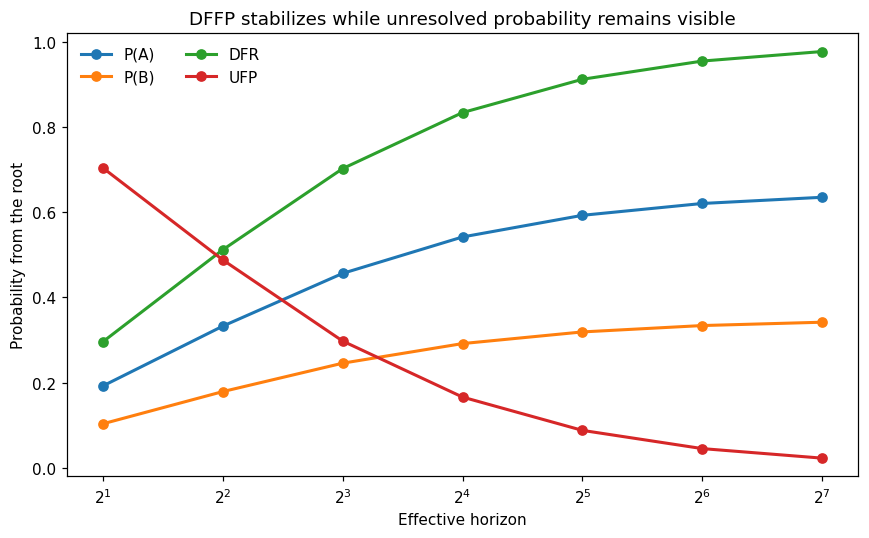

ax.set_title("DFFP stabilizes while unresolved probability remains visible")
ax.legend(frameon=False, ncols=2)
fig.tight_layout()
plt.show()
| effective_horizon | P(A) | P(B) | DFR | UFP | |
|---|---|---|---|---|---|
| 0 | 2 | 0.192593 | 0.103704 | 0.296296 | 0.703704 |
| 1 | 4 | 0.332800 | 0.179200 | 0.512000 | 0.488000 |
| 2 | 8 | 0.456516 | 0.245816 | 0.702332 | 0.297668 |
| 3 | 16 | 0.541909 | 0.291797 | 0.833706 | 0.166294 |
| 4 | 32 | 0.592682 | 0.319136 | 0.911818 | 0.088182 |
| 5 | 64 | 0.620459 | 0.334093 | 0.954553 | 0.045447 |
| 6 | 128 | 0.635001 | 0.341923 | 0.976924 | 0.023076 |
6. First exit, unlimited mixing, and DFFP estimate different quantities¶
First exit measures whether a path stays inside the selected cell set.
Unlimited absorption eventually assigns almost every state in a connected graph to an anchor, even after long graph mixing.
DFFP allows leave-and-return paths but discounts remote futures.
These are not interchangeable tuning options.
[5]:
first_exit_transition = transition.toarray().copy()
first_exit_transition[3] = 0.0
first_exit_transition[3, 3] = 1.0
first_exit_anchors = np.zeros((5, 3), dtype=bool)
first_exit_anchors[2, 0] = True
first_exit_anchors[4, 1] = True
first_exit_anchors[3, 2] = True
first_exit = scCS.solve_discounted_outcomes(
sparse.csr_matrix(first_exit_transition),
first_exit_anchors,
("A", "B", "escape"),
effective_horizon=64,
)
unlimited_like = scCS.solve_discounted_outcomes(
transition,
anchors,
("A", "B"),
effective_horizon=1_000_000,
)
dffp = solutions[64]
method_table = pd.DataFrame(
[
{
"method": "First exit",
"P(A)": first_exit.probability[0, 0],
"P(B)": first_exit.probability[0, 1],
"escape_or_unresolved": (
first_exit.probability[0, 2]
+ first_exit.unresolved_probability[0]
),
},
{
"method": "DFFP, h=64",
"P(A)": dffp.probability[0, 0],
"P(B)": dffp.probability[0, 1],
"escape_or_unresolved": dffp.unresolved_probability[0],
},
{
"method": "Long-time absorption",
"P(A)": unlimited_like.probability[0, 0],
"P(B)": unlimited_like.probability[0, 1],
"escape_or_unresolved": unlimited_like.unresolved_probability[0],
},
]
).set_index("method")
display(method_table)
ax = method_table.plot(
kind="bar",
stacked=True,
figsize=(9, 5),
ylabel="Root probability",

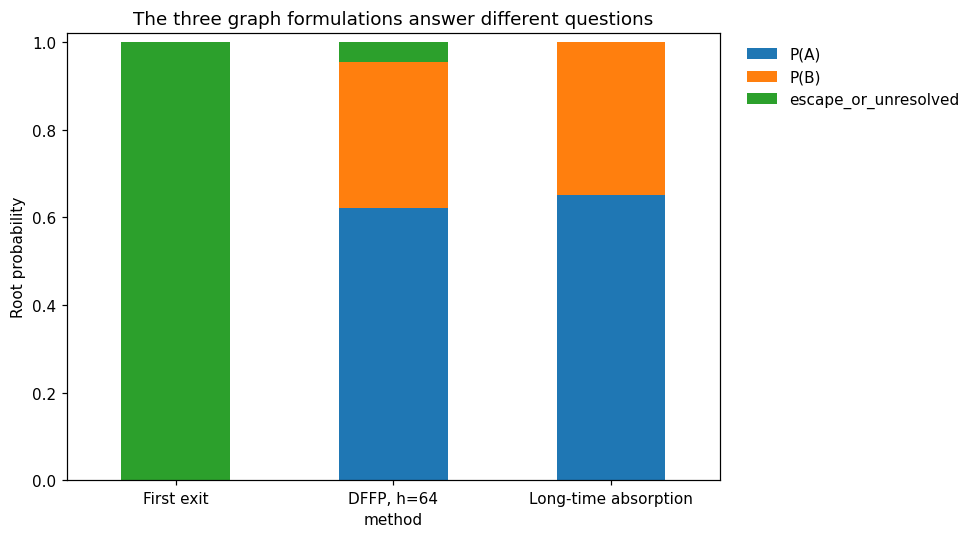

title="The three graph formulations answer different questions",
)
ax.set_ylim(0, 1.02)
ax.legend(frameon=False, bbox_to_anchor=(1.02, 1), loc="upper left")
plt.xticks(rotation=0)
plt.tight_layout()
plt.show()
| P(A) | P(B) | escape_or_unresolved | |
|---|---|---|---|
| method | |||
| First exit | 0.000000 | 0.000000 | 1.000000 |
| DFFP, h=64 | 0.620459 | 0.334093 | 0.045447 |
| Long-time absorption | 0.649998 | 0.349999 | 0.000003 |
7. Why a straight star cannot define the scientific velocity¶
A curved or loop-like source trajectory can be displayed as a straight branch, but the display map is many-to-one and removes curvature. Native scVelo projection onto the star is useful quality control; it is not an invertible vector transformation.
[6]:
t = np.linspace(0, 1, 90)
source_x = t
source_y = 0.35 * np.sin(2.2 * np.pi * t)
source_dx = np.gradient(source_x)
source_dy = np.gradient(source_y)
star_x = t
star_y = np.zeros_like(t)
sample = np.arange(0, len(t), 7)
fig, axes = plt.subplots(1, 2, figsize=(13, 4.8))
axes[0].plot(source_x, source_y, linewidth=2.5)
axes[0].quiver(
source_x[sample],
source_y[sample],
source_dx[sample],
source_dy[sample],
angles="xy",
scale_units="xy",
scale=0.13,
width=0.005,
)
axes[0].set_title("Original source manifold")
axes[0].set_xlabel("source component 1")
axes[0].set_ylabel("source component 2")
axes[1].plot(star_x, star_y, linewidth=2.5)
axes[1].quiver(
star_x[sample],
star_y[sample],
np.gradient(star_x)[sample],
np.zeros(len(sample)),
angles="xy",
scale_units="xy",
scale=0.13,
width=0.005,
)
axes[1].set_title("Standardized straight display branch")
axes[1].set_xlabel("display ordering")
axes[1].set_yticks([])

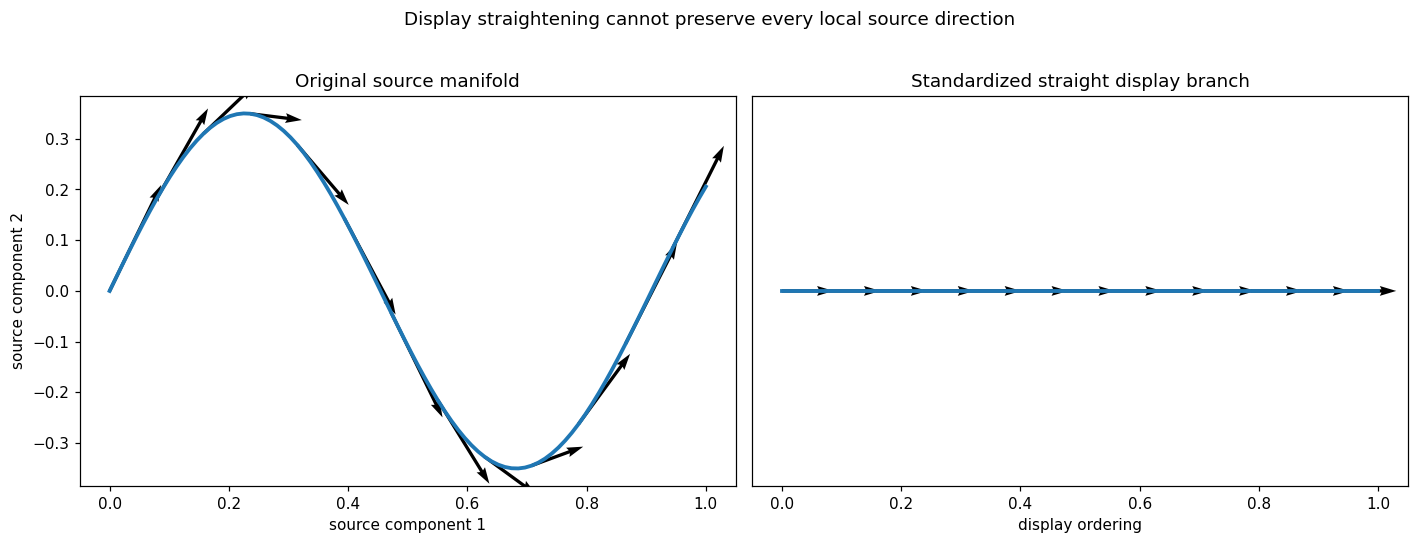

fig.suptitle("Display straightening cannot preserve every local source direction", y=1.02)
fig.tight_layout()
plt.show()
8. Circular regraphing causes entropy degeneration¶
If neighbors are recomputed after annotated terminal cells have been placed on one-dimensional rays, their available displacements are already constrained to those rays. Root neighbors are similarly constrained to the incoming line.
The following schematic shows the resulting loss of informative entropy. It is a consequence of the imposed geometry, not evidence of biologically perfect commitment.
[7]:
def normalized_entropy(probability):
probability = np.clip(np.asarray(probability, dtype=float), 1e-15, 1.0)
return -(probability * np.log(probability)).sum(axis=1) / np.log(probability.shape[1])
n = 800
source_root_affinity = rng.dirichlet([2.2, 2.0, 1.8, 1.6], size=n)
source_terminal_affinity = rng.dirichlet([10.0, 1.3, 1.3, 1.3], size=n)
star_regraph_root = np.full((n, 4), 0.25)
star_regraph_terminal = np.zeros((n, 4))
star_regraph_terminal[:, 0] = 1.0
fig, axes = plt.subplots(1, 2, figsize=(12, 4.6), sharex=True)
axes[0].hist(normalized_entropy(source_root_affinity), bins=30, alpha=0.75, label="source graph")
axes[0].hist(normalized_entropy(star_regraph_root), bins=30, alpha=0.75, label="star regraph")
axes[0].set_title("Root cells")
axes[0].set_xlabel("Normalized fate entropy")
axes[0].set_ylabel("Cells")
axes[0].legend(frameon=False)
axes[1].hist(
normalized_entropy(source_terminal_affinity),
bins=30,
alpha=0.75,
label="source graph",
)
axes[1].hist(
normalized_entropy(star_regraph_terminal),
bins=30,
alpha=0.75,
label="star regraph",
)
axes[1].set_title("Annotated terminal cells")
axes[1].set_xlabel("Normalized fate entropy")
axes[1].legend(frameon=False)

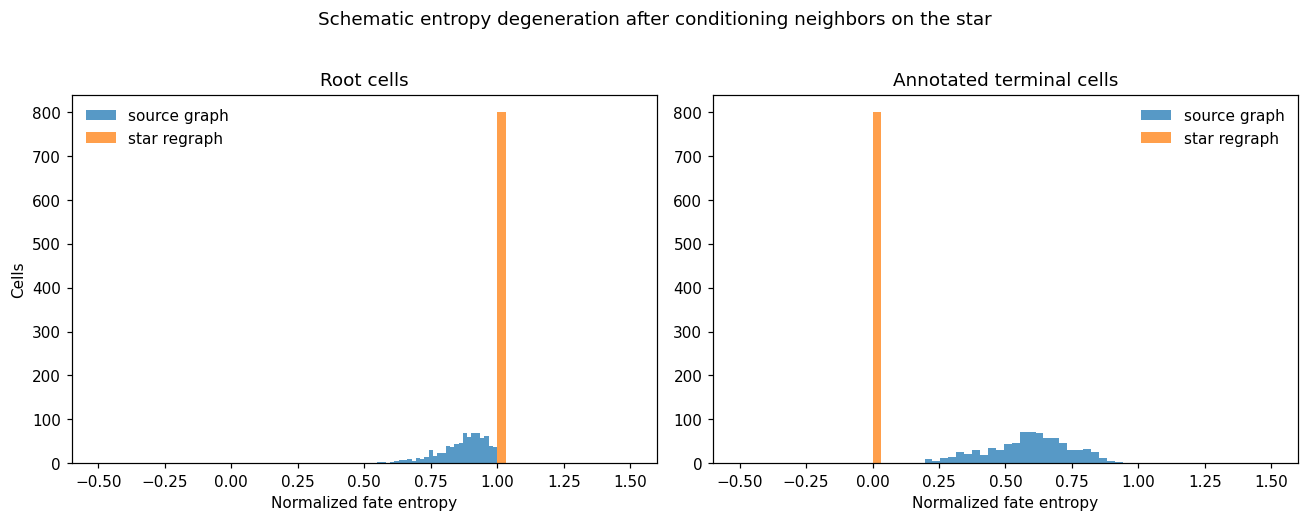

fig.suptitle("Schematic entropy degeneration after conditioning neighbors on the star", y=1.02)
fig.tight_layout()
plt.show()
9. Visual comparison of evaluated approaches¶
[8]:
comparison = pd.DataFrame(
{
"Original graph": [1, 1, 0, 1, 1, 1, 1],
"Leave and return": [0, 1, 0, 1, 0, 1, 1],
"Unresolved retained": [0, 0, 0, 0, 1, 0, 1],
"Curves/loops not forced outward": [0, 1, 0, 1, 1, 1, 1],
"Transparent parameters": [1, 1, 1, 0, 1, 1, 1],
},
index=[
"Instantaneous pushforward",
"scVelo display projection",
"Regraph on star",
"Local trajectory frames",
"First-exit absorption",
"Unlimited absorption",
"DFFP",
],
)

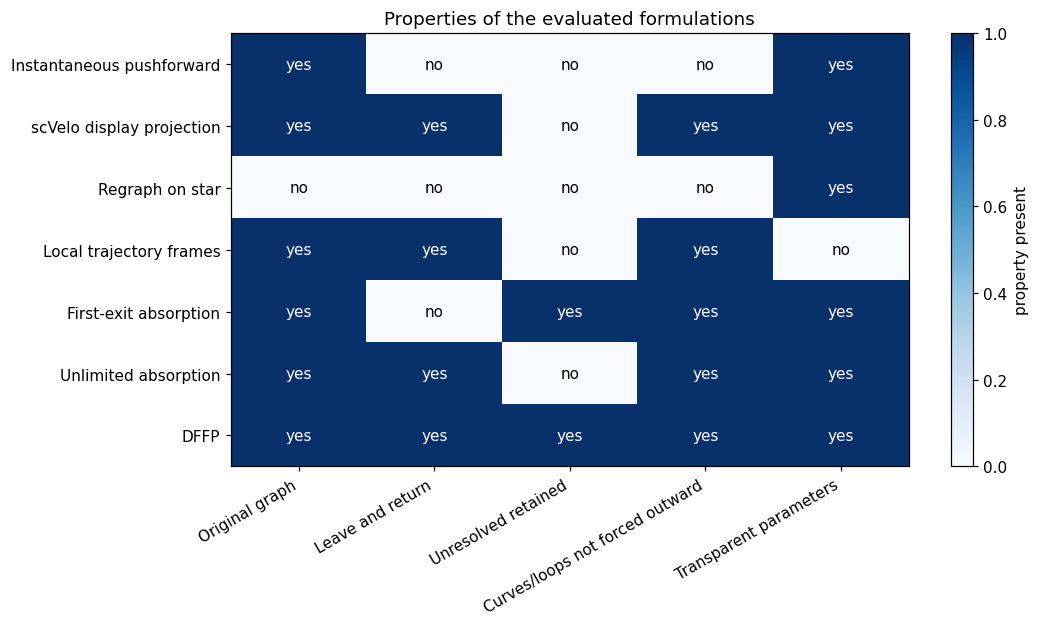

fig, ax = plt.subplots(figsize=(10, 5.8))
image = ax.imshow(comparison.to_numpy(), vmin=0, vmax=1, cmap="Blues", aspect="auto")
ax.set_xticks(np.arange(comparison.shape[1]))
ax.set_xticklabels(comparison.columns, rotation=30, ha="right")
ax.set_yticks(np.arange(comparison.shape[0]))
ax.set_yticklabels(comparison.index)
for row in range(comparison.shape[0]):
for column in range(comparison.shape[1]):
ax.text(
column,
row,
"yes" if comparison.iat[row, column] else "no",
ha="center",
va="center",
color="white" if comparison.iat[row, column] else "black",
)
ax.set_title("Properties of the evaluated formulations")
fig.colorbar(image, ax=ax, label="property present")
fig.tight_layout()
plt.show()
comparison
[8]:
| Original graph | Leave and return | Unresolved retained | Curves/loops not forced outward | Transparent parameters | |
|---|---|---|---|---|---|
| Instantaneous pushforward | 1 | 0 | 0 | 0 | 1 |
| scVelo display projection | 1 | 1 | 0 | 1 | 1 |
| Regraph on star | 0 | 0 | 0 | 0 | 1 |
| Local trajectory frames | 1 | 1 | 0 | 1 | 0 |
| First-exit absorption | 1 | 0 | 1 | 1 | 1 |
| Unlimited absorption | 1 | 1 | 0 | 1 | 1 |
| DFFP | 1 | 1 | 1 | 1 | 1 |
10. Interpretation and reporting¶
DFFP was selected because it preserved the original graph, allowed temporary excursions, retained unresolved futures, tolerated non-monotonic branches, and stabilized before unlimited mixing.
A complete report states:
velocity model and source graph;
supervised root and fates;
ordering and validation;
effective horizon and anchor rule;
CFA, DFR, FFS, RC, UFP, and SOF;
explicit competing outcomes, if any;
anchor and horizon sensitivity.
The star-space velocity grid, root rose, and branch-relative profiles remain display diagnostics rather than DFFP inputs.
