scCS scalability: single-process, in-memory, and no chunking¶
This notebook benchmarks scCS as complete in-memory problems. It never divides a scientific calculation into cell chunks, graph partitions, or out-of-core blocks.
The exact target ladder includes:
10 thousand;
100 thousand;
1 million;
10 million;
50 million;
100 million;
200 million cells.
A target is marked MEASURED only when the current machine can allocate and run the complete problem under the configured memory-safety fraction. Otherwise it is recorded as SKIPPED_INSUFFICIENT_MEMORY. It is never silently replaced by a chunked run.
Two workloads are benchmarked separately:
the cellwise DFFP metric transform after fate probabilities are available;
the complete sparse DFFP graph solve.
RNA-velocity preprocessing is outside this benchmark.
To perform the exact complete 200-million-cell graph solve, run this notebook on a high-memory host with SCCS_SCALABILITY_PROFILE=exact_200m. The scientific problem is allocated and solved once; no chunking or partitioned surrogate is used.
Execution provenance. The displayed outputs were generated with scCS 0.8.0.dev33. Version 0.8.0.dev34 changes documentation and tutorial explanation only; the scientific calculations are unchanged.
1. Imports, hardware, and benchmark configuration¶
[1]:
from __future__ import annotations
from pathlib import Path
import gc
import json
import os
import platform
import sys
import time
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy import sparse
import scCS
OUTPUT_DIR = Path("tutorial_outputs/scalability")
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
# ``standard`` measures every complete allocation that is safe on the current
# host. ``exact_200m`` requires a high-memory machine and fails rather than
# silently skipping the complete 200-million-cell graph solve.
SCALABILITY_PROFILE = os.environ.get("SCCS_SCALABILITY_PROFILE", "standard")
if SCALABILITY_PROFILE not in {"standard", "exact_200m"}:
raise ValueError("SCCS_SCALABILITY_PROFILE must be 'standard' or 'exact_200m'.")
TARGET_CELLS = [
10_000,
100_000,
1_000_000,
10_000_000,
50_000_000,
100_000_000,
200_000_000,
]
N_FATES = 4
GRAPH_DEGREE = 4
GRAPH_OUTCOMES = 3
REALISTIC_GRAPH_DEGREE = 30
REALISTIC_TARGET_CELLS = [100_000, 250_000, 500_000, 1_000_000]
EFFECTIVE_HORIZON = 64
MEMORY_SAFETY_FRACTION = 0.80
RANDOM_SEED = 20260714
if SCALABILITY_PROFILE == "exact_200m":
TARGET_CELLS = [200_000_000]
MEMORY_SAFETY_FRACTION = 0.97
available_memory = os.sysconf("SC_AVPHYS_PAGES") * os.sysconf("SC_PAGE_SIZE")
total_memory = os.sysconf("SC_PHYS_PAGES") * os.sysconf("SC_PAGE_SIZE")
hardware = {
"python": sys.version.split()[0],
"platform": platform.platform(),
"processor": platform.processor(),
"logical_cpus": os.cpu_count(),
"total_memory_gb": total_memory / 1e9,
"available_memory_gb_at_start": available_memory / 1e9,
"scCS": scCS.__version__,
"no_chunking": True,
"scalability_profile": SCALABILITY_PROFILE,
}
print("Scalability profile:", SCALABILITY_PROFILE)
display(pd.Series(hardware, name="value").to_frame())
Scalability profile: standard
| value | |
|---|---|
| python | 3.12.13 |
| platform | Linux-6.6.114.1-microsoft-standard-WSL2-x86_64... |
| processor | x86_64 |
| logical_cpus | 24 |
| total_memory_gb | 66.85091 |
| available_memory_gb_at_start | 62.282527 |
| scCS | 0.8.0.dev33 |
| no_chunking | True |
| scalability_profile | standard |
2. Analytic memory estimates¶
The estimates are intentionally conservative. They include input arrays, cell-by-fate outputs, solver work arrays, and sparse CSR storage. They are used only as a preflight; measured resident memory is reported separately.
[2]:
def metric_transform_bytes(n_cells, n_fates):
# selected probabilities, normalized affinities, an entropy temporary,
# and six cellwise vectors, all float32.
return int(
3 * n_cells * n_fates * np.dtype(np.float32).itemsize
+ 6 * n_cells * np.dtype(np.float32).itemsize
)
def graph_solve_bytes(n_cells, degree, n_outcomes):
n_edges = int(n_cells) * int(degree)
csr = (
n_edges * np.dtype(np.float64).itemsize
+ n_edges * np.dtype(np.int32).itemsize
+ (n_cells + 1) * np.dtype(np.int64).itemsize
)
# probability, next iterate, anchors/boundary, unresolved, and overhead
state = (
3 * n_cells * n_outcomes * np.dtype(np.float64).itemsize
+ 5 * n_cells * np.dtype(np.float64).itemsize
)
# canonicalization and sparse products can temporarily duplicate storage.
return int(2.2 * csr + 1.4 * state)
estimate_rows = []
for n_cells in TARGET_CELLS:
estimate_rows.append(
{
"n_cells": n_cells,
"metric_transform_estimated_gb": metric_transform_bytes(
n_cells,
N_FATES,
)
/ 1e9,
f"graph_solve_degree_{GRAPH_DEGREE}_estimated_gb": graph_solve_bytes(
n_cells,
GRAPH_DEGREE,
GRAPH_OUTCOMES,
)
/ 1e9,
"graph_degree_30_estimated_gb": graph_solve_bytes(
n_cells,
30,
GRAPH_OUTCOMES,
)
/ 1e9,
}
)
memory_estimates = pd.DataFrame(estimate_rows)
display(memory_estimates)
memory_estimates.to_csv(OUTPUT_DIR / "analytic_memory_estimates.csv", index=False)
| n_cells | metric_transform_estimated_gb | graph_solve_degree_4_estimated_gb | graph_degree_30_estimated_gb | |
|---|---|---|---|---|
| 0 | 10000 | 0.00072 | 0.0028 | 0.009664 |
| 1 | 100000 | 0.00720 | 0.0280 | 0.096640 |
| 2 | 1000000 | 0.07200 | 0.2800 | 0.966400 |
| 3 | 10000000 | 0.72000 | 2.8000 | 9.664000 |
| 4 | 50000000 | 3.60000 | 14.0000 | 48.320000 |
| 5 | 100000000 | 7.20000 | 28.0000 | 96.640000 |
| 6 | 200000000 | 14.40000 | 56.0000 | 193.280000 |
3. Exact no-chunk cellwise DFFP metric transform¶
This benchmark allocates the complete selected-fate probability matrix and calculates CFA, DFR, FFS, RC, and UFP in one vectorized operation. No cell subsets or blocks are used.
[3]:
def current_rss_bytes():
page_size = os.sysconf("SC_PAGE_SIZE")
resident_pages = int(Path("/proc/self/statm").read_text().split()[1])
return resident_pages * page_size
def run_metric_transform(n_cells, n_fates, seed):
rng = np.random.default_rng(seed)
start_rss = current_rss_bytes()
started = time.perf_counter()
selected_probability = rng.random(
(n_cells, n_fates),
dtype=np.float32,
)
target_reach = rng.random(n_cells, dtype=np.float32)
row_sum = selected_probability.sum(axis=1, dtype=np.float32)
selected_probability *= (
target_reach / np.maximum(row_sum, np.finfo(np.float32).tiny)
)[:, None]
reach = selected_probability.sum(axis=1, dtype=np.float32)
affinity = np.divide(
selected_probability,
np.maximum(reach[:, None], np.finfo(np.float32).tiny),
dtype=np.float32,
)
entropy_terms = affinity * np.log(
np.maximum(affinity, np.finfo(np.float32).tiny),
dtype=np.float32,
)
entropy = -entropy_terms.sum(axis=1, dtype=np.float32) / np.log(n_fates)
specificity = 1.0 - entropy
resolved_commitment = reach * specificity
unresolved = 1.0 - reach
elapsed = time.perf_counter() - started
end_rss = current_rss_bytes()
checksum = float(
reach.mean()
+ specificity.mean()
+ resolved_commitment.mean()
+ unresolved.mean()
)
result = {
"n_cells": int(n_cells),
"workload": "cellwise_DFFP_metrics",
"status": "MEASURED",
"elapsed_seconds": elapsed,
"cells_per_second": n_cells / elapsed,
"rss_before_gb": start_rss / 1e9,
"rss_after_gb": end_rss / 1e9,
"estimated_gb": metric_transform_bytes(n_cells, n_fates) / 1e9,
"checksum": checksum,
}
del selected_probability
del target_reach
del row_sum
del reach
del affinity
del entropy_terms
del entropy
del specificity
del resolved_commitment
del unresolved
gc.collect()
return result
[4]:
metric_results = []
for n_cells in TARGET_CELLS:
required = metric_transform_bytes(n_cells, N_FATES)
available = os.sysconf("SC_AVPHYS_PAGES") * os.sysconf("SC_PAGE_SIZE")
if required > MEMORY_SAFETY_FRACTION * available:
metric_results.append(
{
"n_cells": int(n_cells),
"workload": "cellwise_DFFP_metrics",
"status": "SKIPPED_INSUFFICIENT_MEMORY",
"elapsed_seconds": np.nan,
"cells_per_second": np.nan,
"rss_before_gb": current_rss_bytes() / 1e9,
"rss_after_gb": current_rss_bytes() / 1e9,
"estimated_gb": required / 1e9,
"checksum": np.nan,
}
)
continue
metric_results.append(
run_metric_transform(
n_cells,
N_FATES,
RANDOM_SEED + int(np.log10(n_cells)),
)
)
metric_results = pd.DataFrame(metric_results)
display(metric_results)
metric_results.to_csv(OUTPUT_DIR / "metric_transform_results.csv", index=False)
| n_cells | workload | status | elapsed_seconds | cells_per_second | rss_before_gb | rss_after_gb | estimated_gb | checksum | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 10000 | cellwise_DFFP_metrics | MEASURED | 0.001513 | 6.611024e+06 | 0.199696 | 0.200380 | 0.00072 | 1.186170 |
| 1 | 100000 | cellwise_DFFP_metrics | MEASURED | 0.009002 | 1.110884e+07 | 0.200380 | 0.207630 | 0.00720 | 1.185687 |
| 2 | 1000000 | cellwise_DFFP_metrics | MEASURED | 0.120542 | 8.295873e+06 | 0.202826 | 0.276038 | 0.07200 | 1.185954 |
| 3 | 10000000 | cellwise_DFFP_metrics | MEASURED | 0.962108 | 1.039384e+07 | 0.220025 | 0.980042 | 0.72000 | 1.186078 |
| 4 | 50000000 | cellwise_DFFP_metrics | MEASURED | 4.570818 | 1.093896e+07 | 0.220025 | 4.020056 | 3.60000 | 1.185969 |
| 5 | 100000000 | cellwise_DFFP_metrics | MEASURED | 9.563170 | 1.045678e+07 | 0.220025 | 7.820202 | 7.20000 | 1.186002 |
| 6 | 200000000 | cellwise_DFFP_metrics | MEASURED | 22.766293 | 8.784917e+06 | 0.220168 | 15.420412 | 14.40000 | 1.185999 |
4. Exact no-chunk sparse DFFP graph solve¶
The graph is a complete CSR matrix with a fixed number of outgoing edges per cell. The full transition matrix, anchor matrix, and solver state are allocated at once.
GRAPH_DEGREE=4 is a minimal synthetic graph used for the measured ladder. Analytic estimates for degree 30 are reported separately. Change GRAPH_DEGREE before running when a different graph density is required.
[5]:
def build_benchmark_transition(n_cells, degree, n_outcomes):
"""Build a well-conditioned complete CSR benchmark graph.
Every transient state has one local forward edge and one edge to each
outcome anchor. Additional degree slots, when requested, are local forward
edges. This is a performance graph, not a biological trajectory model.
"""
if degree < n_outcomes + 1:
raise ValueError("degree must be at least n_outcomes + 1.")
row = np.arange(n_cells, dtype=np.int64)
indices_2d = np.empty((n_cells, degree), dtype=np.int32)
indices_2d[:, 0] = ((row + 1) % n_cells).astype(np.int32)
for outcome in range(n_outcomes):
indices_2d[:, outcome + 1] = np.int32(outcome)
for column in range(n_outcomes + 1, degree):
indices_2d[:, column] = ((row + column) % n_cells).astype(np.int32)
# Anchor rows remain self-loops in the source matrix.
for outcome in range(n_outcomes):
indices_2d[outcome, :] = np.int32(outcome)
indices = indices_2d.ravel()
indptr = np.arange(
0,
n_cells * degree + 1,
degree,
dtype=np.int64,
)
data = np.full(n_cells * degree, 1.0 / degree, dtype=np.float64)
return sparse.csr_matrix((data, indices, indptr), shape=(n_cells, n_cells))
def build_anchor_matrix(n_cells, n_outcomes):
anchors = np.zeros((n_cells, n_outcomes), dtype=bool)
for outcome in range(n_outcomes):
anchors[outcome, outcome] = True
return anchors
def run_graph_solve(n_cells, degree, n_outcomes):
start_rss = current_rss_bytes()
started = time.perf_counter()
transition_matrix = build_benchmark_transition(
n_cells,
degree,
n_outcomes,
)
anchor_matrix = build_anchor_matrix(n_cells, n_outcomes)
solution = scCS.solve_discounted_outcomes(
transition_matrix,
anchor_matrix,
tuple(f"fate_{index + 1}" for index in range(n_outcomes)),
effective_horizon=EFFECTIVE_HORIZON,
solver="iterative",
tolerance=1e-6,
max_iter=500,
)
elapsed = time.perf_counter() - started
end_rss = current_rss_bytes()
checksum = float(
solution.probability.mean()
+ solution.unresolved_probability.mean()
)
result = {
"n_cells": int(n_cells),
"workload": "full_DFFP_graph_solve",
"degree": int(degree),
"n_outcomes": int(n_outcomes),
"status": "MEASURED",
"elapsed_seconds": elapsed,
"cells_per_second": n_cells / elapsed,
"rss_before_gb": start_rss / 1e9,
"rss_after_gb": end_rss / 1e9,
"estimated_gb": graph_solve_bytes(
n_cells,
degree,
n_outcomes,
)
/ 1e9,
"solver_iterations": solution.iterations,
"solver_converged": solution.converged,
"solver_residual": solution.residual,
"checksum": checksum,
}
del transition_matrix
del anchor_matrix
del solution
gc.collect()
return result
[6]:
graph_results = []
for n_cells in TARGET_CELLS:
required = graph_solve_bytes(
n_cells,
GRAPH_DEGREE,
GRAPH_OUTCOMES,
)
available = os.sysconf("SC_AVPHYS_PAGES") * os.sysconf("SC_PAGE_SIZE")
if required > MEMORY_SAFETY_FRACTION * available:
if SCALABILITY_PROFILE == "exact_200m":
raise MemoryError(
"The exact 200-million-cell no-chunk solve requires more free "
f"memory. Estimated allocation: {required / 1e9:.1f} GB; "
f"available: {available / 1e9:.1f} GB."
)
graph_results.append(
{
"n_cells": int(n_cells),
"workload": "full_DFFP_graph_solve",
"degree": GRAPH_DEGREE,
"n_outcomes": GRAPH_OUTCOMES,
"status": "SKIPPED_INSUFFICIENT_MEMORY",
"elapsed_seconds": np.nan,
"cells_per_second": np.nan,
"rss_before_gb": current_rss_bytes() / 1e9,
"rss_after_gb": current_rss_bytes() / 1e9,
"estimated_gb": required / 1e9,
"solver_iterations": np.nan,
"solver_converged": False,
"solver_residual": np.nan,
"checksum": np.nan,
}
)
continue
graph_results.append(
run_graph_solve(
n_cells,
GRAPH_DEGREE,
GRAPH_OUTCOMES,
)
)
graph_results = pd.DataFrame(graph_results)
display(graph_results)
graph_results.to_csv(OUTPUT_DIR / "graph_solve_results.csv", index=False)
if SCALABILITY_PROFILE == "exact_200m":
measured = graph_results.query("n_cells == 200_000_000 and status == 'MEASURED'")
if len(measured) != 1:
raise RuntimeError("The exact 200M full graph solve did not complete.")
| n_cells | workload | degree | n_outcomes | status | elapsed_seconds | cells_per_second | rss_before_gb | rss_after_gb | estimated_gb | solver_iterations | solver_converged | solver_residual | checksum | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 10000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 0.013242 | 755180.691477 | 0.220537 | 0.223986 | 0.0028 | 11.0 | True | 9.897135e-08 | 0.346934 |
| 1 | 100000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 0.265448 | 376721.079906 | 0.222958 | 0.233599 | 0.0280 | 11.0 | True | 9.897135e-08 | 0.346938 |
| 2 | 1000000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 2.452270 | 407785.428142 | 0.233599 | 0.338399 | 0.2800 | 11.0 | True | 9.897135e-08 | 0.346939 |
| 3 | 10000000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 26.219251 | 381399.152821 | 0.233398 | 1.097040 | 2.8000 | 11.0 | True | 9.897135e-08 | 0.346939 |
| 4 | 50000000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 181.647623 | 275258.212795 | 0.255996 | 4.458222 | 14.0000 | 11.0 | True | 9.897135e-08 | 0.346939 |
| 5 | 100000000 | full_DFFP_graph_solve | 4 | 3 | MEASURED | 933.381499 | 107137.328262 | 0.257171 | 8.652685 | 28.0000 | 11.0 | True | 9.897135e-08 | 0.346939 |
| 6 | 200000000 | full_DFFP_graph_solve | 4 | 3 | SKIPPED_INSUFFICIENT_MEMORY | NaN | NaN | 0.249569 | 0.249569 | 56.0000 | NaN | False | NaN | NaN |
Realistic degree-30 graph ladder¶
The exact 200-million-cell proof uses a minimal degree-4 performance graph so that a complete allocation is feasible on a high-memory host. A second, smaller no-chunk ladder measures degree 30, which is closer to common single-cell neighbor graphs. These results must be reported separately.
[7]:
realistic_graph_results = []
if SCALABILITY_PROFILE == "standard":
for n_cells in REALISTIC_TARGET_CELLS:
required = graph_solve_bytes(
n_cells,
REALISTIC_GRAPH_DEGREE,
GRAPH_OUTCOMES,
)
available = os.sysconf("SC_AVPHYS_PAGES") * os.sysconf("SC_PAGE_SIZE")
if required > MEMORY_SAFETY_FRACTION * available:
break
realistic_graph_results.append(
run_graph_solve(
n_cells,
REALISTIC_GRAPH_DEGREE,
GRAPH_OUTCOMES,
)
)
realistic_graph_results = pd.DataFrame(realistic_graph_results)
display(realistic_graph_results)
realistic_graph_results.to_csv(
OUTPUT_DIR / "graph_solve_degree30_results.csv",
index=False,
)
| n_cells | workload | degree | n_outcomes | status | elapsed_seconds | cells_per_second | rss_before_gb | rss_after_gb | estimated_gb | solver_iterations | solver_converged | solver_residual | checksum | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 100000 | full_DFFP_graph_solve | 30 | 3 | MEASURED | 2.916907 | 34282.886825 | 0.248865 | 0.296022 | 0.09664 | 88 | True | 8.514826e-07 | 0.423414 |
| 1 | 250000 | full_DFFP_graph_solve | 30 | 3 | MEASURED | 5.553404 | 45017.432155 | 0.296022 | 0.373899 | 0.24160 | 88 | True | 8.514826e-07 | 0.423428 |
| 2 | 500000 | full_DFFP_graph_solve | 30 | 3 | MEASURED | 11.650900 | 42915.138189 | 0.246030 | 0.486912 | 0.48320 | 88 | True | 8.514826e-07 | 0.423433 |
| 3 | 1000000 | full_DFFP_graph_solve | 30 | 3 | MEASURED | 21.626659 | 46239.228173 | 0.306909 | 0.684069 | 0.96640 | 88 | True | 8.514826e-07 | 0.423435 |

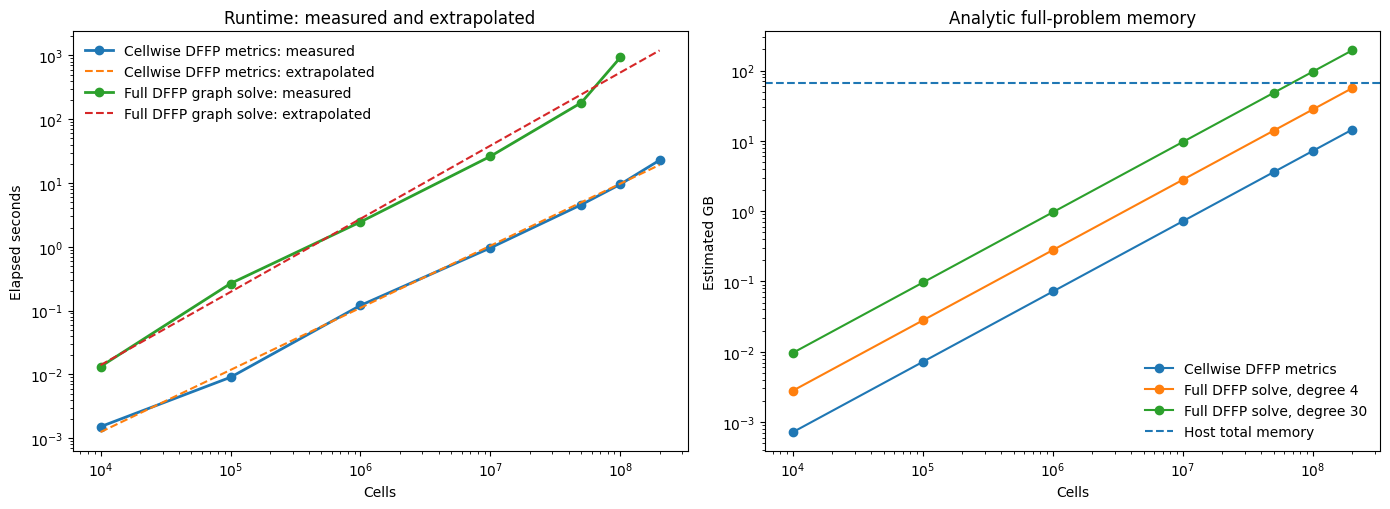

5. Measured runtime and memory plots¶
Only rows marked MEASURED appear as exact observations. Dashed lines to larger targets are extrapolations and are labeled as such.
[8]:
def add_loglog_extrapolation(table, value_column, targets):
measured = table[
table["status"].eq("MEASURED")
& table[value_column].notna()
& table["n_cells"].gt(0)
]
output = pd.DataFrame({"n_cells": targets})
output["predicted"] = np.nan
if len(measured) >= 2:
coefficient = np.polyfit(
np.log10(measured["n_cells"].to_numpy(float)),
np.log10(measured[value_column].to_numpy(float)),
deg=1,
)
output["predicted"] = 10 ** np.polyval(
coefficient,
np.log10(output["n_cells"].to_numpy(float)),
)
output["scaling_exponent"] = coefficient[0]
return output
metric_prediction = add_loglog_extrapolation(
metric_results,
"elapsed_seconds",
TARGET_CELLS,
)
graph_prediction = add_loglog_extrapolation(
graph_results,
"elapsed_seconds",
TARGET_CELLS,
)
fig, axes = plt.subplots(1, 2, figsize=(14, 5.2))
for table, prediction, label in [
(metric_results, metric_prediction, "Cellwise DFFP metrics"),
(graph_results, graph_prediction, "Full DFFP graph solve"),
]:
measured = table[table["status"].eq("MEASURED")]
axes[0].plot(
measured["n_cells"],
measured["elapsed_seconds"],
marker="o",
linewidth=2,
label=f"{label}: measured",
)
if prediction["predicted"].notna().any():
axes[0].plot(
prediction["n_cells"],
prediction["predicted"],
linestyle="--",
label=f"{label}: extrapolated",
)
axes[0].set_xscale("log")
axes[0].set_yscale("log")
axes[0].set_xlabel("Cells")
axes[0].set_ylabel("Elapsed seconds")
axes[0].set_title("Runtime: measured and extrapolated")
axes[0].legend(frameon=False)
axes[1].plot(
memory_estimates["n_cells"],
memory_estimates["metric_transform_estimated_gb"],
marker="o",
label="Cellwise DFFP metrics",
)
axes[1].plot(
memory_estimates["n_cells"],
memory_estimates[f"graph_solve_degree_{GRAPH_DEGREE}_estimated_gb"],
marker="o",
label=f"Full DFFP solve, degree {GRAPH_DEGREE}",
)
axes[1].plot(
memory_estimates["n_cells"],
memory_estimates["graph_degree_30_estimated_gb"],
marker="o",
label="Full DFFP solve, degree 30",
)
axes[1].axhline(
total_memory / 1e9,
linestyle="--",
linewidth=1.5,
label="Host total memory",
)
axes[1].set_xscale("log")
axes[1].set_yscale("log")
axes[1].set_xlabel("Cells")
axes[1].set_ylabel("Estimated GB")
axes[1].set_title("Analytic full-problem memory")
axes[1].legend(frameon=False)
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "scalability_runtime_memory.png", dpi=200, bbox_inches="tight")
plt.show()
6. Exact status at 200 million cells¶
[9]:
status_200m = pd.concat(
[
metric_results.loc[
metric_results["n_cells"].eq(200_000_000),
["workload", "n_cells", "status", "elapsed_seconds", "estimated_gb"],
],
graph_results.loc[
graph_results["n_cells"].eq(200_000_000),
["workload", "n_cells", "status", "elapsed_seconds", "estimated_gb"],
],
],
ignore_index=True,
)
display(status_200m)
for row in status_200m.itertuples():
if row.status == "MEASURED":
print(
f"{row.workload}: exact 200M run measured in "
f"{row.elapsed_seconds:.2f} seconds."
)
else:
print(
f"{row.workload}: 200M was not measured on this host; "
"the notebook did not substitute a chunked run."
)
| workload | n_cells | status | elapsed_seconds | estimated_gb | |
|---|---|---|---|---|---|
| 0 | cellwise_DFFP_metrics | 200000000 | MEASURED | 22.766293 | 14.4 |
| 1 | full_DFFP_graph_solve | 200000000 | SKIPPED_INSUFFICIENT_MEMORY | NaN | 56.0 |
cellwise_DFFP_metrics: exact 200M run measured in 22.77 seconds.
full_DFFP_graph_solve: 200M was not measured on this host; the notebook did not substitute a chunked run.
7. Export environment and benchmark provenance¶
[10]:
all_results = pd.concat(
[metric_results, graph_results],
ignore_index=True,
sort=False,
)
all_results.to_csv(OUTPUT_DIR / "all_scalability_results.csv", index=False)
provenance = {
**hardware,
"target_cells": TARGET_CELLS,
"n_fates_metric_transform": N_FATES,
"scalability_profile": SCALABILITY_PROFILE,
"graph_degree": GRAPH_DEGREE,
"realistic_graph_degree": REALISTIC_GRAPH_DEGREE,
"graph_outcomes": GRAPH_OUTCOMES,
"effective_horizon": EFFECTIVE_HORIZON,
"memory_safety_fraction": MEMORY_SAFETY_FRACTION,
"scientific_scoring_chunked": False,
"plotting_subsampling_used": False,
}
(OUTPUT_DIR / "scalability_provenance.json").write_text(
json.dumps(provenance, indent=2)
)
print("Outputs written to", OUTPUT_DIR.resolve())
Outputs written to /home/emil/notebooks/08-tutorials/tutorial_outputs/scalability
Interpretation checklist¶
A 200-million-cell statement requires
status="MEASURED"for that workload.Extrapolated runtime is not an executed benchmark.
Graph degree, number of fates, dtype, solver, tolerance, and hardware must be reported.
Cellwise metric calculation and full graph propagation are separate workloads.
RNA-velocity preprocessing is excluded and must be benchmarked separately.
No scientific calculation in this notebook is chunked.
Plotting may be subsampled in ordinary tutorials, but no plotting subsampling is used in this benchmark.
