Pancreas PairScorer tutorial¶
This notebook demonstrates a complete replicate-aware two-condition pancreas
analysis. In `DEMO_MODE`, balanced pseudo-conditions and a controlled transition
tilt toward Beta are used only to validate the API. They are not biological data.
For a real study, set `DEMO_MODE=False`, provide genuine condition/replicate
columns, and use the unmodified velocity transition matrix.
Execution provenance. The displayed outputs were generated with scCS 0.8.0.dev33. Version 0.8.0.dev34 changes documentation and tutorial explanation only; the scientific calculations are unchanged.
1. Installation, versions, and analysis settings¶
[1]:
from __future__ import annotations
import warnings
from pathlib import Path
import importlib.metadata as importlib_metadata
import platform
import sys
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scanpy as sc
import scvelo as scv
from scipy.spatial.distance import jensenshannon
import scCS
SEED = 20260714
N_JOBS = 1
sc.settings.verbosity = 2
scv.settings.verbosity = 2
sc.set_figure_params(dpi=100, facecolor="white")
print("Python", sys.version.split()[0])
print("Platform", platform.platform())
print("scCS", scCS.__version__)
print("Scanpy", importlib_metadata.version("scanpy"))
print("scVelo", scv.__version__)
OUTPUT_DIR = Path("tutorial_outputs/pancreas_pair")
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
# Hide known warnings emitted by optional upstream dependencies. These do not
# change the scCS calculation and would otherwise distract from the tutorial.
warnings.filterwarnings(
"ignore",
message=r"This process .* is multi-threaded, use of fork\(\) may lead to deadlocks.*",
category=DeprecationWarning,
)
warnings.filterwarnings(
"ignore",
category=DeprecationWarning,
module=r"cellrank\..*",
)
Python 3.12.13
Platform Linux-6.6.114.1-microsoft-standard-WSL2-x86_64-with-glibc2.39
scCS 0.8.0.dev33
Scanpy 1.11.5
scVelo 0.3.4
[2]:
DEMO_MODE = True
CONDITION_KEY = "condition"
REPLICATE_KEY = "sample_id"
CONDITIONS = ("control", "treated")
REPLICATES_PER_CONDITION = 5
RUN_SCOPE_SENSITIVITY = False
RUN_MIXED_MODEL_SENSITIVITY = False
2. Load the dataset and velocity graph¶
This tutorial deliberately starts from the public dataset and recomputes the velocity model. No pre-existing scCS cache is assumed. Dynamical fitting can take several minutes, but showing the complete preparation makes every analysis step reproducible for a first-time user.
[3]:
def clear_velocity_outputs(adata, *, clear_dynamics=False):
"""Remove stale velocity fields before fitting a requested model."""
for key in ("velocity", "velocity_u", "velocity_variance"):
adata.layers.pop(key, None)
for key in ("velocity_graph", "velocity_graph_neg", "velocity_params"):
adata.uns.pop(key, None)
for key in (
"velocity_self_transition",
"root_cells",
"end_points",
"velocity_pseudotime",
"latent_time",
):
if key in adata.obs:
del adata.obs[key]
if clear_dynamics:
for key in list(adata.var.columns):
if str(key).startswith("fit_"):
del adata.var[key]
for key in list(adata.layers):
if str(key).startswith("fit_"):
del adata.layers[key]
adata.uns.pop("recover_dynamics", None)
def ensure_pca_neighbors_moments(
adata,
*,
n_pcs=30,
n_neighbors=30,
preserve_existing_neighbors=False,
):
"""Create the unbiased PCA neighbor graph used by RNA velocity."""
if "X_pca" not in adata.obsm:
n_comps = min(n_pcs, adata.n_obs - 1, adata.n_vars - 1)
sc.pp.pca(adata, n_comps=n_comps)
if "neighbors" not in adata.uns or not preserve_existing_neighbors:
sc.pp.neighbors(
adata,
n_neighbors=min(n_neighbors, adata.n_obs - 1),
n_pcs=min(n_pcs, adata.obsm["X_pca"].shape[1]),
use_rep="X_pca",
random_state=SEED,
)
if not {"Ms", "Mu"}.issubset(adata.layers):
scv.pp.moments(adata, n_neighbors=None, n_pcs=None)
if "X_umap" not in adata.obsm:
sc.tl.umap(adata, random_state=SEED)
def resolve_present_genes(adata, candidates):
"""Resolve gene symbols case-insensitively and report missing markers."""
lookup = {str(gene).lower(): str(gene) for gene in adata.var_names}
resolved, missing = [], []
for candidate in candidates:
match = lookup.get(str(candidate).lower())
if match is None:
missing.append(str(candidate))
elif match not in resolved:
resolved.append(match)
return resolved, missing
def row_js(left, right):
"""Row-wise Jensen-Shannon divergence with base-2 logarithms."""
return np.asarray(
[jensenshannon(a, b, base=2.0) ** 2 for a, b in zip(left, right)],
dtype=float,
)
def ordering_thirds(values):
"""Return stable early/middle/late labels for a continuous coordinate."""
series = pd.Series(np.asarray(values, dtype=float))
ranked = series.rank(method="first")
return (
pd.qcut(
ranked,
q=3,
labels=["early", "middle", "late"],
duplicates="drop",
)
.astype(str)
.to_numpy()
)
[4]:
RECOVER_DYNAMICS_MAX_ITER = 20
# Load the public scVelo pancreas dataset.
adata = scv.datasets.pancreas()
adata.var_names_make_unique()
# Fit RNA velocity in the original expression/PCA manifold.
scv.pp.filter_and_normalize(adata, min_shared_counts=20)
ensure_pca_neighbors_moments(
adata,
n_pcs=30,
n_neighbors=30,
preserve_existing_neighbors=False,
)
clear_velocity_outputs(adata, clear_dynamics=True)
# Dynamical velocity is used because the pancreas dataset contains several
# kinetic regimes and non-monotonic terminal trajectories.
scv.tl.recover_dynamics(
adata,
max_iter=RECOVER_DYNAMICS_MAX_ITER,
n_jobs=N_JOBS,
)
scv.tl.velocity(adata, mode="dynamical")
scv.tl.velocity_graph(adata, n_jobs=N_JOBS)
scv.tl.terminal_states(adata)
scv.tl.latent_time(
adata,
vkey="velocity",
root_key="root_cells",
end_key="end_points",
)
scv.tl.velocity_pseudotime(adata, vkey="velocity")
print(adata)
display(adata.obs["clusters"].astype(str).value_counts().to_frame("n_cells"))
Filtered out 20801 genes that are detected 20 counts (shared).
Normalized count data: X, spliced, unspliced.
computing neighbors
finished (0:00:08)
computing moments based on connectivities
finished (0:00:02)
recovering dynamics (using 1/24 cores)
/home/emil/miniforge3/envs/lab-py312/lib/python3.12/multiprocessing/popen_fork.py:66: DeprecationWarning: This process (pid=91733) is multi-threaded, use of fork() may lead to deadlocks in the child.
self.pid = os.fork()
finished (0:26:54)
computing velocities
finished (0:00:09)
computing velocity graph (using 1/24 cores)
/home/emil/miniforge3/envs/lab-py312/lib/python3.12/multiprocessing/popen_fork.py:66: DeprecationWarning: This process (pid=91733) is multi-threaded, use of fork() may lead to deadlocks in the child.
self.pid = os.fork()
finished (0:00:16)
computing terminal states
identified 2 regions of root cells and 1 region of end points .
finished (0:00:00)
computing latent time using root_cells, end_points as prior
finished (0:00:03)
AnnData object with n_obs × n_vars = 3696 × 7197
obs: 'clusters_coarse', 'clusters', 'S_score', 'G2M_score', 'initial_size_unspliced', 'initial_size_spliced', 'initial_size', 'n_counts', 'velocity_self_transition', 'root_cells', 'end_points', 'velocity_pseudotime', 'latent_time'
var: 'highly_variable_genes', 'gene_count_corr', 'fit_r2', 'fit_alpha', 'fit_beta', 'fit_gamma', 'fit_t_', 'fit_scaling', 'fit_std_u', 'fit_std_s', 'fit_likelihood', 'fit_u0', 'fit_s0', 'fit_pval_steady', 'fit_steady_u', 'fit_steady_s', 'fit_variance', 'fit_alignment_scaling', 'velocity_genes'
uns: 'clusters_coarse_colors', 'clusters_colors', 'day_colors', 'neighbors', 'pca', 'recover_dynamics', 'velocity_params', 'velocity_graph', 'velocity_graph_neg'
obsm: 'X_pca', 'X_umap'
varm: 'loss'
layers: 'spliced', 'unspliced', 'Ms', 'Mu', 'fit_t', 'fit_tau', 'fit_tau_', 'velocity', 'velocity_u'
obsp: 'distances', 'connectivities'
| n_cells | |
|---|---|
| clusters | |
| Ductal | 916 |
| Ngn3 high EP | 642 |
| Pre-endocrine | 592 |
| Beta | 591 |
| Alpha | 481 |
| Ngn3 low EP | 262 |
| Epsilon | 142 |
| Delta | 70 |

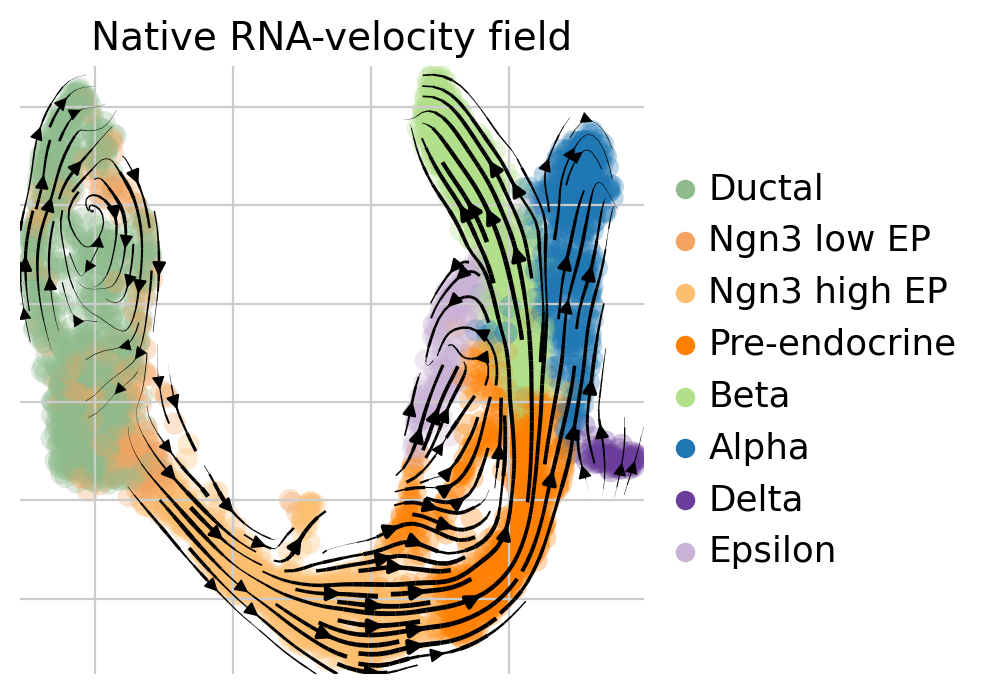

3. Inspect the native velocity field¶
[5]:
native_color = "clusters"
scv.pl.velocity_embedding_stream(
adata,
basis="umap",
color=native_color,
legend_loc="right margin",
title="Native RNA-velocity field",
)
computing velocity embedding
finished (0:00:00)
4. Define the supervised furcation and future-fate settings¶
[6]:
ROOT = ("Ngn3 high EP", "Pre-endocrine")
FATES = ["Alpha", "Beta", "Delta", "Epsilon"]
OBS_KEY = "clusters"
ORDERING_KEY = "latent_time"
TARGET_FATE = "Beta"
FUTURE_OPTIONS = {
"effective_horizon": 64,
"anchor_quantile": 0.90,
"min_anchor_cells": 10,
"progression_scale": "rank",
}
5. Real-study metadata or controlled demonstration design¶
A scientific analysis must use genuine biological replicates. The controlled demonstration balances state and ordering composition across pseudo-replicates, then tilts root-cell transition probabilities toward destinations with higher baseline target-fate probability. The transition support is unchanged and every row remains normalized.
[7]:
def assign_stratified_demo_design(
adata,
*,
annotation_key,
ordering_key,
conditions,
replicates_per_condition,
condition_key="condition",
replicate_key="sample_id",
n_ordering_bins=5,
random_state=0,
):
"""Create balanced technical pseudo-conditions within state/order strata.
This helper is for tutorial validation only. It must not replace genuine
biological condition and replicate metadata in a scientific analysis.
"""
annotations = adata.obs[annotation_key].astype(str)
ordering = pd.to_numeric(adata.obs[ordering_key], errors="coerce")
if ordering.isna().any():
raise ValueError(f"{ordering_key!r} contains missing or nonnumeric values.")
strata = pd.Series(index=adata.obs_names, dtype=object)
for annotation, indices in annotations.groupby(annotations).groups.items():
indices = pd.Index(indices)
values = ordering.loc[indices]
n_bins = min(n_ordering_bins, len(indices), int(values.nunique()))
if n_bins <= 1:
bins = pd.Series("0", index=indices)
else:
bins = pd.qcut(
values.rank(method="first"),
q=n_bins,
labels=False,
duplicates="drop",
).astype(str)
strata.loc[indices] = str(annotation) + "::" + bins
conditions = tuple(map(str, conditions))
combinations = [
(condition, f"{condition}_R{replicate + 1}")
for condition in conditions
for replicate in range(int(replicates_per_condition))
]
rng = np.random.default_rng(random_state)
assigned_condition = pd.Series(index=adata.obs_names, dtype=object)
assigned_replicate = pd.Series(index=adata.obs_names, dtype=object)
for _, indices in strata.groupby(strata, sort=True).groups.items():
indices = np.asarray(list(indices), dtype=object)
rng.shuffle(indices)
for position, index in enumerate(indices):
condition, replicate = combinations[position % len(combinations)]
assigned_condition.loc[index] = condition
assigned_replicate.loc[index] = replicate
adata.obs[condition_key] = pd.Categorical(
assigned_condition,
categories=list(conditions),
ordered=True,
)
adata.obs[replicate_key] = pd.Categorical(assigned_replicate)
return pd.DataFrame(
{
"stratum": strata.astype(str),
condition_key: adata.obs[condition_key].astype(str),
replicate_key: adata.obs[replicate_key].astype(str),
},
index=adata.obs_names,
)
def target_destination_score(adata, result, *, annotation_key, target_fate):
"""Map baseline target-fate probability to every destination cell."""
score = np.zeros(adata.n_obs, dtype=float)
selected_indices = adata.obs_names.get_indexer(result.cell_ids)
if np.any(selected_indices < 0):
raise ValueError("Result cells could not be aligned to AnnData.")
fate_index = result.fate_names.index(str(target_fate))
score[selected_indices] = result.future_fate_contribution[:, fate_index]
terminal = adata.obs[annotation_key].astype(str).eq(str(target_fate)).to_numpy()
score[terminal] = 1.0
return np.clip(score, 0.0, 1.0)
def reweight_root_transitions(
transition_matrix,
*,
source_mask,
condition_labels,
replicate_labels,
destination_score,
log_shift_by_condition,
replicate_shift_sd=0.08,
random_state=0,
):
"""Inject a controlled condition effect without changing graph support.
Outgoing root-cell transition probabilities are tilted toward destinations
with high baseline target-fate probability and then renormalized. This is a
software-validation perturbation, not a model for a particular experiment.
"""
normalized = scCS.canonicalize_transition_matrix(transition_matrix)
transition = normalized.matrix.tocsr(copy=True)
source_mask = np.asarray(source_mask, dtype=bool)
conditions = np.asarray(condition_labels, dtype=str)
replicates = np.asarray(replicate_labels, dtype=str)
destination_score = np.asarray(destination_score, dtype=float)
if source_mask.shape != (transition.shape[0],):
raise ValueError("source_mask must align to transition rows.")
if destination_score.shape != (transition.shape[0],):
raise ValueError("destination_score must align to transition columns.")
rng = np.random.default_rng(random_state)
replicate_effect = {
replicate: float(rng.normal(0.0, replicate_shift_sd)) for replicate in np.unique(replicates)
}
affected = np.zeros(transition.shape[0], dtype=bool)
for row in np.flatnonzero(source_mask):
condition = conditions[row]
if condition not in log_shift_by_condition:
raise KeyError(f"Missing log shift for condition {condition!r}.")
start, stop = transition.indptr[row], transition.indptr[row + 1]
columns = transition.indices[start:stop]
if len(columns) == 0:
continue
shift = float(log_shift_by_condition[condition]) + replicate_effect[replicates[row]]
multipliers = np.exp(shift * destination_score[columns])
if np.max(np.abs(multipliers - 1.0)) > 1e-12:
affected[row] = True
transition.data[start:stop] *= multipliers
row_sum = float(transition.data[start:stop].sum())
if row_sum > 0:
transition.data[start:stop] /= row_sum
audit = {
"affected_root_fraction": float(np.mean(affected[source_mask])),
"max_row_sum_error": float(
np.max(np.abs(np.asarray(transition.sum(axis=1)).ravel() - 1.0))
),
"replicate_shift_sd": float(replicate_shift_sd),
"log_shift_by_condition": dict(log_shift_by_condition),
}
return transition, audit
[8]:
original_transition = scCS.get_scvelo_transition_matrix(adata)
if DEMO_MODE:
assignments = assign_stratified_demo_design(
adata,
annotation_key=OBS_KEY,
ordering_key=ORDERING_KEY,
conditions=CONDITIONS,
replicates_per_condition=REPLICATES_PER_CONDITION,
condition_key=CONDITION_KEY,
replicate_key=REPLICATE_KEY,
random_state=SEED,
)
baseline_scorer = scCS.SingleScorer(
adata,
root=ROOT,
branches=FATES,
obs_key=OBS_KEY,
)
baseline_scorer.build_embedding(ordering_metric=ORDERING_KEY, verbose=False)
baseline_scorer.fit(
transition_matrix=original_transition,
scoring_mode="future_fate",
future_fate_options=FUTURE_OPTIONS,
verbose=False,
)
baseline_result = baseline_scorer.score(write_to_adata=False, verbose=False)
destination_score = target_destination_score(
adata,
baseline_result,
annotation_key=OBS_KEY,
target_fate=TARGET_FATE,
)
labels = adata.obs[OBS_KEY].astype(str)
root_labels = {ROOT} if isinstance(ROOT, str) else set(ROOT)
root_mask_full = labels.isin(root_labels).to_numpy()
analysis_transition, perturbation_audit = reweight_root_transitions(
original_transition,
source_mask=root_mask_full,
condition_labels=adata.obs[CONDITION_KEY].astype(str).to_numpy(),
replicate_labels=adata.obs[REPLICATE_KEY].astype(str).to_numpy(),
destination_score=destination_score,
log_shift_by_condition={"control": 0.0, "treated": 1.25},
replicate_shift_sd=0.08,
random_state=SEED + 1,
)
display(pd.Series(perturbation_audit, name="value").to_frame())
else:
required = {CONDITION_KEY, REPLICATE_KEY}
missing = sorted(required - set(adata.obs.columns))
if missing:
raise KeyError(f"Missing real-study metadata columns: {missing}")
analysis_transition = original_transition
design_balance = (
adata.obs.groupby([CONDITION_KEY, REPLICATE_KEY], observed=True)
.size()
.rename("n_cells")
.reset_index()
)
display(design_balance)
| value | |
|---|---|
| affected_root_fraction | 1.0 |
| max_row_sum_error | 0.0 |
| replicate_shift_sd | 0.08 |
| log_shift_by_condition | {'control': 0.0, 'treated': 1.25} |
| condition | sample_id | n_cells | |
|---|---|---|---|
| 0 | control | control_R1 | 385 |
| 1 | control | control_R2 | 385 |
| 2 | control | control_R3 | 382 |
| 3 | control | control_R4 | 376 |
| 4 | control | control_R5 | 370 |
| 5 | treated | treated_R1 | 370 |
| 6 | treated | treated_R2 | 366 |
| 7 | treated | treated_R3 | 365 |
| 8 | treated | treated_R4 | 352 |
| 9 | treated | treated_R5 | 345 |
6. Construct PairScorer, preflight, and fit one pooled model¶
[9]:
pair = scCS.PairScorer(
adata,
root=ROOT,
branches=FATES,
obs_key=OBS_KEY,
condition_obs_key=CONDITION_KEY,
replicate_obs_key=REPLICATE_KEY,
condition_order=list(CONDITIONS),
)
preflight = pair.preflight(ordering_metric=ORDERING_KEY, check_velocity=True)
preflight.display()
preflight.raise_for_errors()
pair.build_embedding(ordering_metric=ORDERING_KEY)
pair.fit(
transition_matrix=analysis_transition,
scoring_mode="future_fate",
transition_scope="pooled",
future_fate_options=FUTURE_OPTIONS,
)
results = pair.score_all_conditions(
population="root",
min_cells=20,
min_replicates=4,
)
replicate_table = pair.replicate_table(results)
display(replicate_table)
replicate_table.to_csv(OUTPUT_DIR / "replicate_outcomes.csv", index=False)
| level | code | message | value | |
|---|---|---|---|---|
| 0 | info | furcation_valid | Root and terminal annotations are valid. | 2518.0 |
| 1 | info | root_cells | Root population contains 1234 cells. | 1234.0 |
| 2 | info | terminal_Alpha | Terminal 'Alpha' contains 481 cells. | 481.0 |
| 3 | info | terminal_Beta | Terminal 'Beta' contains 591 cells. | 591.0 |
| 4 | info | terminal_Delta | Terminal 'Delta' contains 70 cells. | 70.0 |
| 5 | info | terminal_Epsilon | Terminal 'Epsilon' contains 142 cells. | 142.0 |
| 6 | info | ordering_valid | Ordering metric is finite and non-constant amo... | 1.0 |
| 7 | info | ordering_resolution | Root ordering has 1234 unique values across 12... | 1.0 |
| 8 | info | velocity_available | Velocity information is available. | NaN |
| 9 | info | condition_control_cells | Condition 'control' contains 1898 cells. | 1898.0 |
| 10 | info | condition_treated_cells | Condition 'treated' contains 1798 cells. | 1798.0 |
| 11 | info | condition_control_replicates | Condition 'control' contains 5 biological repl... | 5.0 |
| 12 | info | condition_treated_replicates | Condition 'treated' contains 5 biological repl... | 5.0 |
[scCS] Scientific star built for 2518 cells in 4 dimensions.
Root radial clipping: 0.050 low / 0.050 high
Terminal scientific coordinates: fixed equal-radius simplex vertices (radius=1.000).
scCS FutureFateScoreResult
Furcation: root -> ['Alpha', 'Beta', 'Delta', 'Epsilon']
Effective horizon: 64 (gamma=0.984615)
Cells: 2518 selected; 1234 root
Root affinity coverage: 1.000
Root mean future-fate reach: 0.637
Root mean future-fate entropy: 0.546
Root mean future-fate specificity: 0.454
Root mean reach-supported specificity: 0.291
Root mean unresolved probability: 0.363
Root mean signed progression: 0.037
Root future-fate composition: Alpha=0.246, Beta=0.690, Delta=0.000, Epsilon=0.064
Solver: direct; iterations=1; residual=1.610e-15
[scCS] 'control': 625 root cells; 5 replicates.
[scCS] 'treated': 609 root cells; 5 replicates.
| condition | replicate_id | replicate_label | n_cells | n_valid_projection | mean_commitment_strength | mean_directional_entropy | mean_commitment_entropy | mean_directional_specificity | mean_nearest_fate_angle_degrees | ... | pairwise_log_commitment_ratio::Alpha::Delta | pairwise_log_commitment_ratio::Delta::Alpha | pairwise_log_commitment_ratio::Alpha::Epsilon | pairwise_log_commitment_ratio::Epsilon::Alpha | pairwise_log_commitment_ratio::Beta::Delta | pairwise_log_commitment_ratio::Delta::Beta | pairwise_log_commitment_ratio::Beta::Epsilon | pairwise_log_commitment_ratio::Epsilon::Beta | pairwise_log_commitment_ratio::Delta::Epsilon | pairwise_log_commitment_ratio::Epsilon::Delta | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | control | control::control_R1 | control_R1 | 125 | 125 | 0.635930 | 0.556772 | 0.837506 | 0.443228 | NaN | ... | 6.502464 | -6.502464 | 1.299916 | -1.299916 | 7.496403 | -7.496403 | 2.293855 | -2.293855 | -5.202548 | 5.202548 |
| 1 | control | control::control_R2 | control_R2 | 125 | 125 | 0.632664 | 0.558111 | 0.840343 | 0.441889 | NaN | ... | 6.995748 | -6.995748 | 1.351279 | -1.351279 | 7.972633 | -7.972633 | 2.328164 | -2.328164 | -5.644469 | 5.644469 |
| 2 | control | control::control_R3 | control_R3 | 125 | 125 | 0.636583 | 0.541783 | 0.830323 | 0.458217 | NaN | ... | 6.878208 | -6.878208 | 1.409696 | -1.409696 | 7.919780 | -7.919780 | 2.451268 | -2.451268 | -5.468512 | 5.468512 |
| 3 | control | control::control_R4 | control_R4 | 125 | 125 | 0.631317 | 0.560588 | 0.841329 | 0.439412 | NaN | ... | 6.801378 | -6.801378 | 1.344525 | -1.344525 | 7.745623 | -7.745623 | 2.288769 | -2.288769 | -5.456854 | 5.456854 |
| 4 | control | control::control_R5 | control_R5 | 125 | 125 | 0.633810 | 0.554080 | 0.837938 | 0.445920 | NaN | ... | 7.060102 | -7.060102 | 1.424122 | -1.424122 | 8.031143 | -8.031143 | 2.395162 | -2.395162 | -5.635980 | 5.635980 |
| 5 | treated | treated::treated_R1 | treated_R1 | 125 | 125 | 0.644365 | 0.526566 | 0.817396 | 0.473434 | NaN | ... | 6.752256 | -6.752256 | 1.300839 | -1.300839 | 7.893537 | -7.893537 | 2.442121 | -2.442121 | -5.451417 | 5.451417 |
| 6 | treated | treated::treated_R2 | treated_R2 | 125 | 125 | 0.638986 | 0.544790 | 0.829909 | 0.455210 | NaN | ... | 6.831015 | -6.831015 | 1.281852 | -1.281852 | 7.881732 | -7.881732 | 2.332568 | -2.332568 | -5.549164 | 5.549164 |
| 7 | treated | treated::treated_R3 | treated_R3 | 125 | 125 | 0.640841 | 0.533247 | 0.822325 | 0.466753 | NaN | ... | 6.719379 | -6.719379 | 1.318600 | -1.318600 | 7.804702 | -7.804702 | 2.403923 | -2.403923 | -5.400779 | 5.400779 |
| 8 | treated | treated::treated_R4 | treated_R4 | 119 | 119 | 0.636384 | 0.542044 | 0.830149 | 0.457956 | NaN | ... | 6.640851 | -6.640851 | 1.248749 | -1.248749 | 7.710124 | -7.710124 | 2.318022 | -2.318022 | -5.392102 | 5.392102 |
| 9 | treated | treated::treated_R5 | treated_R5 | 115 | 115 | 0.638387 | 0.540470 | 0.828557 | 0.459530 | NaN | ... | 6.938915 | -6.938915 | 1.464080 | -1.464080 | 7.982412 | -7.982412 | 2.507577 | -2.507577 | -5.474835 | 5.474835 |
10 rows × 37 columns
7. Descriptive condition summaries before hypothesis testing¶
[10]:
summary_rows = []
for condition, condition_result in results.items():
population = condition_result.population_summary
row = {
"condition": condition,
"n_cells": condition_result.n_cells,
"n_replicates": condition_result.n_replicates,
"mean_future_fate_reach": np.nanmean(condition_result.commitment_strength),
"mean_future_fate_entropy": np.nanmean(condition_result.directional_entropy),
"mean_future_fate_specificity": np.nanmean(condition_result.directional_specificity),
"mean_reach_supported_specificity": np.nanmean(condition_result.specific_commitment),
"mean_signed_progression": np.nanmean(condition_result.progression_velocity),
"mean_selected_path_coverage": np.nanmean(condition_result.transition_coverage),
"population_balance_entropy": population.population_balance_entropy,
"total_future_fate_mass": population.total_mass,
}
for fate_index, fate in enumerate(condition_result.fate_names):
row[f"mean_affinity_{fate}"] = np.nanmean(
condition_result.directional_affinity[:, fate_index]
)
row[f"mean_contribution_{fate}"] = np.nanmean(
condition_result.commitment_contribution[:, fate_index]
)
summary_rows.append(row)
condition_summary = pd.DataFrame(summary_rows)
display(condition_summary)
condition_summary.to_csv(OUTPUT_DIR / "condition_summary.csv", index=False)
| condition | n_cells | n_replicates | mean_future_fate_reach | mean_future_fate_entropy | mean_future_fate_specificity | mean_reach_supported_specificity | mean_signed_progression | mean_selected_path_coverage | population_balance_entropy | total_future_fate_mass | mean_affinity_Alpha | mean_contribution_Alpha | mean_affinity_Beta | mean_contribution_Beta | mean_affinity_Delta | mean_contribution_Delta | mean_affinity_Epsilon | mean_contribution_Epsilon | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | control | 625 | 5 | 0.634061 | 0.554267 | 0.445733 | 0.284188 | 0.041153 | 0.997831 | 0.569639 | 396.288054 | 0.255614 | 0.161110 | 0.678641 | 0.431622 | 0.000272 | 0.000174 | 0.065472 | 0.041155 |
| 1 | treated | 609 | 5 | 0.639849 | 0.537328 | 0.462672 | 0.298845 | 0.033316 | 0.998463 | 0.554947 | 389.668187 | 0.240343 | 0.152031 | 0.695239 | 0.447012 | 0.000269 | 0.000174 | 0.064149 | 0.040632 |

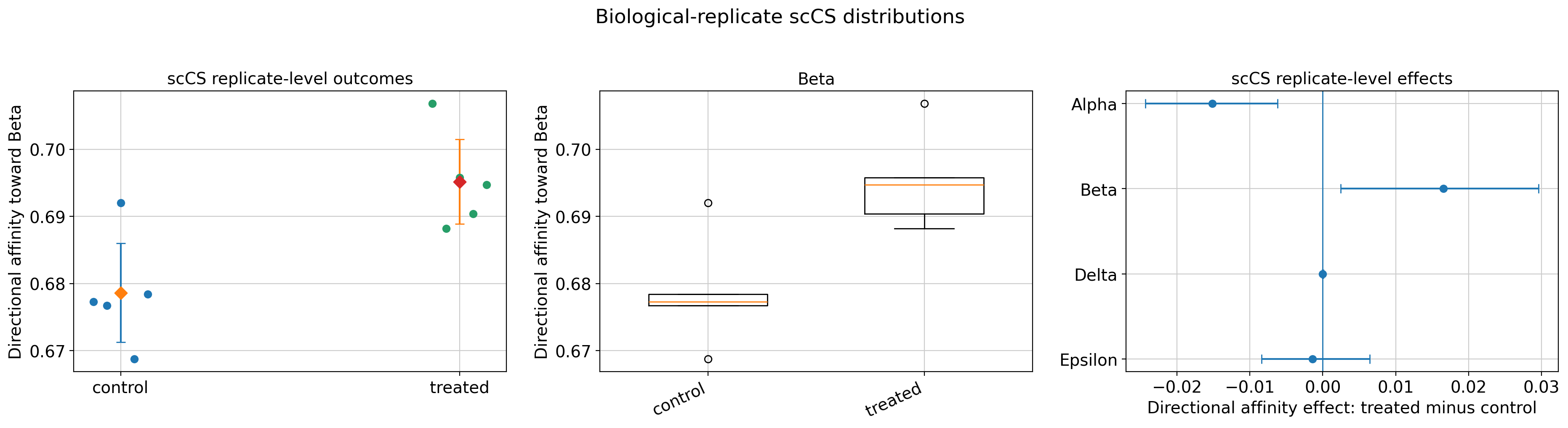

8. Primary target-fate comparison with permutation and hierarchical bootstrap¶
[11]:
target_affinity_stats = pair.compare_conditions(
results,
condition_a=CONDITIONS[0],
condition_b=CONDITIONS[1],
metric="future_fate_affinity",
fate=TARGET_FATE,
n_permutations=9999,
n_bootstrap=2000,
confidence_level=0.95,
random_state=SEED,
)
target_contribution_stats = pair.compare_conditions(
results,
metric="future_fate_contribution",
fate=TARGET_FATE,
n_permutations=9999,
n_bootstrap=2000,
random_state=SEED + 1,
)
display(target_affinity_stats)
display(target_contribution_stats)
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='directional_affinity'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='mean_commitment_contribution'.
| metric | metric_public | metric_label | fate | fate_a | fate_b | condition_a | condition_b | mean_a | mean_b | ... | permutation_method | n_permutations | n_replicates_a | n_replicates_b | pvalue_adj | ci_lower | ci_upper | confidence_level | n_bootstrap | resample_cells_within_replicate | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | directional_affinity | future_fate_affinity | Conditional Fate Affinity (CFA) toward Beta | Beta | None | None | control | treated | 0.678641 | 0.695184 | ... | exact | 252 | 5 | 5 | 0.02381 | 0.003381 | 0.029842 | 0.95 | 2000 | True |
1 rows × 22 columns
| metric | metric_public | metric_label | fate | fate_a | fate_b | condition_a | condition_b | mean_a | mean_b | ... | permutation_method | n_permutations | n_replicates_a | n_replicates_b | pvalue_adj | ci_lower | ci_upper | confidence_level | n_bootstrap | resample_cells_within_replicate | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | mean_commitment_contribution | future_fate_contribution | Future-fate contribution toward Beta | Beta | None | None | control | treated | 0.431622 | 0.446928 | ... | exact | 252 | 5 | 5 | 0.02381 | 0.003258 | 0.02716 | 0.95 | 2000 | True |
1 rows × 22 columns
9. Full fate-wise and scalar outcome battery¶
[12]:
fate_affinity_stats = pair.compare_conditions(
results,
metric="future_fate_affinity",
n_permutations=9999,
n_bootstrap=1000,
random_state=SEED + 2,
)
fate_contribution_stats = pair.compare_conditions(
results,
metric="future_fate_contribution",
n_permutations=9999,
n_bootstrap=1000,
random_state=SEED + 3,
)
scalar_tables = []
for offset, metric in enumerate(
(
"future_fate_reach",
"future_fate_specificity",
"reach_supported_specificity",
"future_fate_entropy",
"signed_progression",
"selected_path_coverage",
)
):
table = pair.compare_conditions(
results,
metric=metric,
n_permutations=9999,
n_bootstrap=1000,
random_state=SEED + 10 + offset,
)
scalar_tables.append(table)
scalar_stats = pd.concat(scalar_tables, ignore_index=True)
display(fate_affinity_stats)
display(fate_contribution_stats)
display(scalar_stats)
fate_affinity_stats.to_csv(OUTPUT_DIR / "fate_affinity_statistics.csv", index=False)
fate_contribution_stats.to_csv(OUTPUT_DIR / "fate_contribution_statistics.csv", index=False)
scalar_stats.to_csv(OUTPUT_DIR / "scalar_statistics.csv", index=False)
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='directional_affinity'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='mean_commitment_contribution'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='commitment_strength'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='directional_specificity'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='specific_commitment'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='directional_entropy'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='progression_velocity'.
[scCS] Pairwise replicate inference: 'treated' - 'control'; metric='transition_coverage'.
| metric | metric_public | metric_label | fate | fate_a | fate_b | condition_a | condition_b | mean_a | mean_b | ... | permutation_method | n_permutations | n_replicates_a | n_replicates_b | pvalue_adj | ci_lower | ci_upper | confidence_level | n_bootstrap | resample_cells_within_replicate | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | directional_affinity | future_fate_affinity | Conditional Fate Affinity (CFA) toward Alpha | Alpha | None | None | control | treated | 0.255614 | 0.240460 | ... | exact | 252 | 5 | 5 | 0.063492 | -0.024313 | -0.006212 | 0.95 | 1000 | True |
| 1 | directional_affinity | future_fate_affinity | Conditional Fate Affinity (CFA) toward Beta | Beta | None | None | control | treated | 0.678641 | 0.695184 | ... | exact | 252 | 5 | 5 | 0.071429 | 0.002450 | 0.029609 | 0.95 | 1000 | True |
| 2 | directional_affinity | future_fate_affinity | Conditional Fate Affinity (CFA) toward Delta | Delta | None | None | control | treated | 0.000272 | 0.000269 | ... | exact | 252 | 5 | 5 | 1.000000 | -0.000082 | 0.000065 | 0.95 | 1000 | True |
| 3 | directional_affinity | future_fate_affinity | Conditional Fate Affinity (CFA) toward Epsilon | Epsilon | None | None | control | treated | 0.065472 | 0.064086 | ... | exact | 252 | 5 | 5 | 1.000000 | -0.008398 | 0.006412 | 0.95 | 1000 | True |
4 rows × 22 columns
| metric | metric_public | metric_label | fate | fate_a | fate_b | condition_a | condition_b | mean_a | mean_b | ... | permutation_method | n_permutations | n_replicates_a | n_replicates_b | pvalue_adj | ci_lower | ci_upper | confidence_level | n_bootstrap | resample_cells_within_replicate | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | mean_commitment_contribution | future_fate_contribution | Future-fate contribution toward Alpha | Alpha | None | None | control | treated | 0.161110 | 0.152102 | ... | exact | 252 | 5 | 5 | 0.063492 | -0.015379 | -0.003459 | 0.95 | 1000 | True |
| 1 | mean_commitment_contribution | future_fate_contribution | Future-fate contribution toward Beta | Beta | None | None | control | treated | 0.431622 | 0.446928 | ... | exact | 252 | 5 | 5 | 0.071429 | 0.004137 | 0.027325 | 0.95 | 1000 | True |
| 2 | mean_commitment_contribution | future_fate_contribution | Future-fate contribution toward Delta | Delta | None | None | control | treated | 0.000174 | 0.000174 | ... | exact | 252 | 5 | 5 | 1.000000 | -0.000050 | 0.000044 | 0.95 | 1000 | True |
| 3 | mean_commitment_contribution | future_fate_contribution | Future-fate contribution toward Epsilon | Epsilon | None | None | control | treated | 0.041155 | 0.040589 | ... | exact | 252 | 5 | 5 | 1.000000 | -0.005454 | 0.003810 | 0.95 | 1000 | True |
4 rows × 22 columns
| metric | metric_public | metric_label | fate | fate_a | fate_b | condition_a | condition_b | mean_a | mean_b | ... | permutation_method | n_permutations | n_replicates_a | n_replicates_b | pvalue_adj | ci_lower | ci_upper | confidence_level | n_bootstrap | resample_cells_within_replicate | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | commitment_strength | future_fate_reach | Discounted Fate Reach (DFR) | None | None | None | control | treated | 0.634061 | 0.639793 | ... | exact | 252 | 5 | 5 | 0.015873 | -0.000636 | 0.012935 | 0.95 | 1000 | True |
| 1 | directional_specificity | future_fate_specificity | Future-Fate Specificity (FFS) | None | None | None | control | treated | 0.445733 | 0.462576 | ... | exact | 252 | 5 | 5 | 0.023810 | 0.004753 | 0.029080 | 0.95 | 1000 | True |
| 2 | specific_commitment | reach_supported_specificity | Resolved Commitment (RC) | None | None | None | control | treated | 0.284188 | 0.298742 | ... | exact | 252 | 5 | 5 | 0.023810 | 0.003100 | 0.026106 | 0.95 | 1000 | True |
| 3 | directional_entropy | future_fate_entropy | Future-fate entropy | None | None | None | control | treated | 0.554267 | 0.537424 | ... | exact | 252 | 5 | 5 | 0.023810 | -0.028709 | -0.005731 | 0.95 | 1000 | True |
| 4 | progression_velocity | signed_progression | Signed Ordering Flux (SOF) | None | None | None | control | treated | 0.041153 | 0.033386 | ... | exact | 252 | 5 | 5 | 0.055556 | -0.020465 | 0.004322 | 0.95 | 1000 | True |
| 5 | transition_coverage | selected_path_coverage | Selected-path coverage | None | None | None | control | treated | 0.997831 | 0.998463 | ... | exact | 252 | 5 | 5 | 0.444444 | -0.001073 | 0.002524 | 0.95 | 1000 | True |
6 rows × 22 columns
10. Replicate-first effect visualizations¶
[13]:
fig, axes = plt.subplots(1, 3, figsize=(19, 5))
pair.plot_replicate_outcomes(
results,
metric="future_fate_affinity",
fate=TARGET_FATE,
ax=axes[0],
)
pair.plot_affinity_distributions(
results,
metric="future_fate_affinity",
fate=TARGET_FATE,
plot_type="box",
ax=axes[1],
)
pair.plot_effects(fate_affinity_stats, ax=axes[2])
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "replicate_effects.png", dpi=200, bbox_inches="tight")
plt.show()

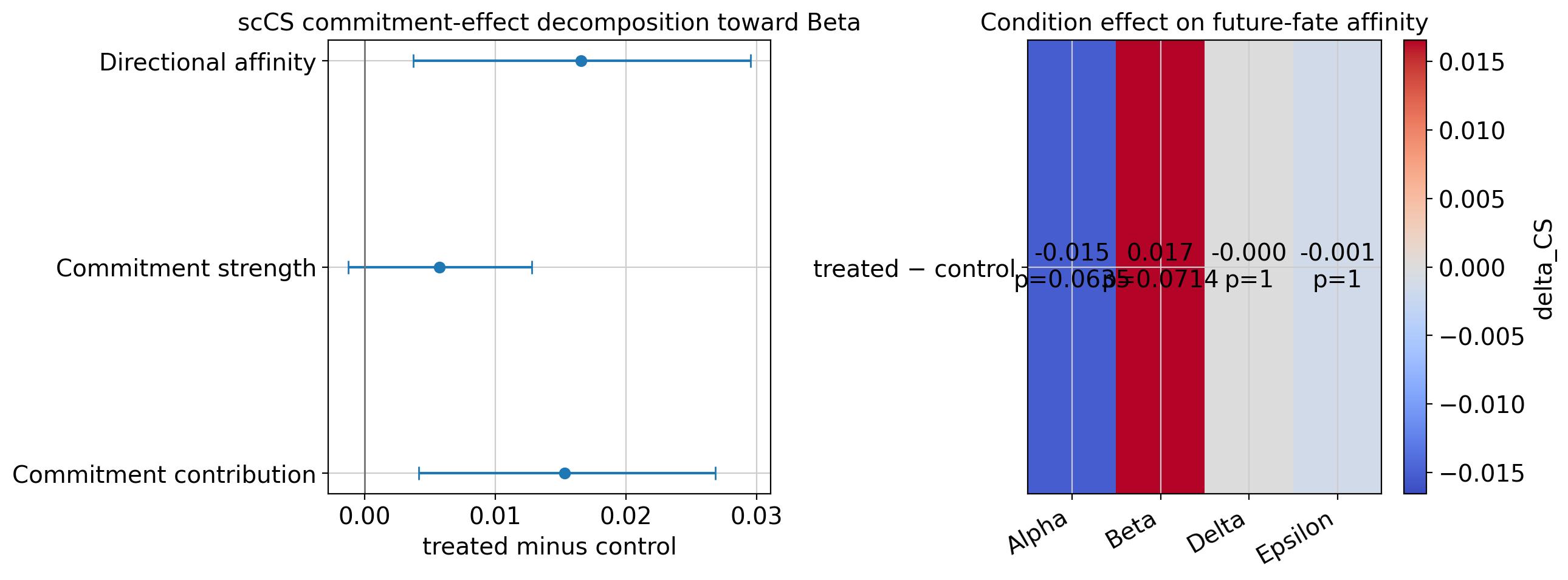

fig, axes = plt.subplots(1, 2, figsize=(13, 5))
pair.plot_commitment_decomposition(
results,
fate=TARGET_FATE,
n_bootstrap=2000,
random_state=SEED,
ax=axes[0],
)
pair.plot_delta_CS_heatmap(
fate_affinity_stats,
title="Condition effect on future-fate affinity",
ax=axes[1],
)
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "effect_decomposition_and_heatmap.png", dpi=200, bbox_inches="tight")
plt.show()

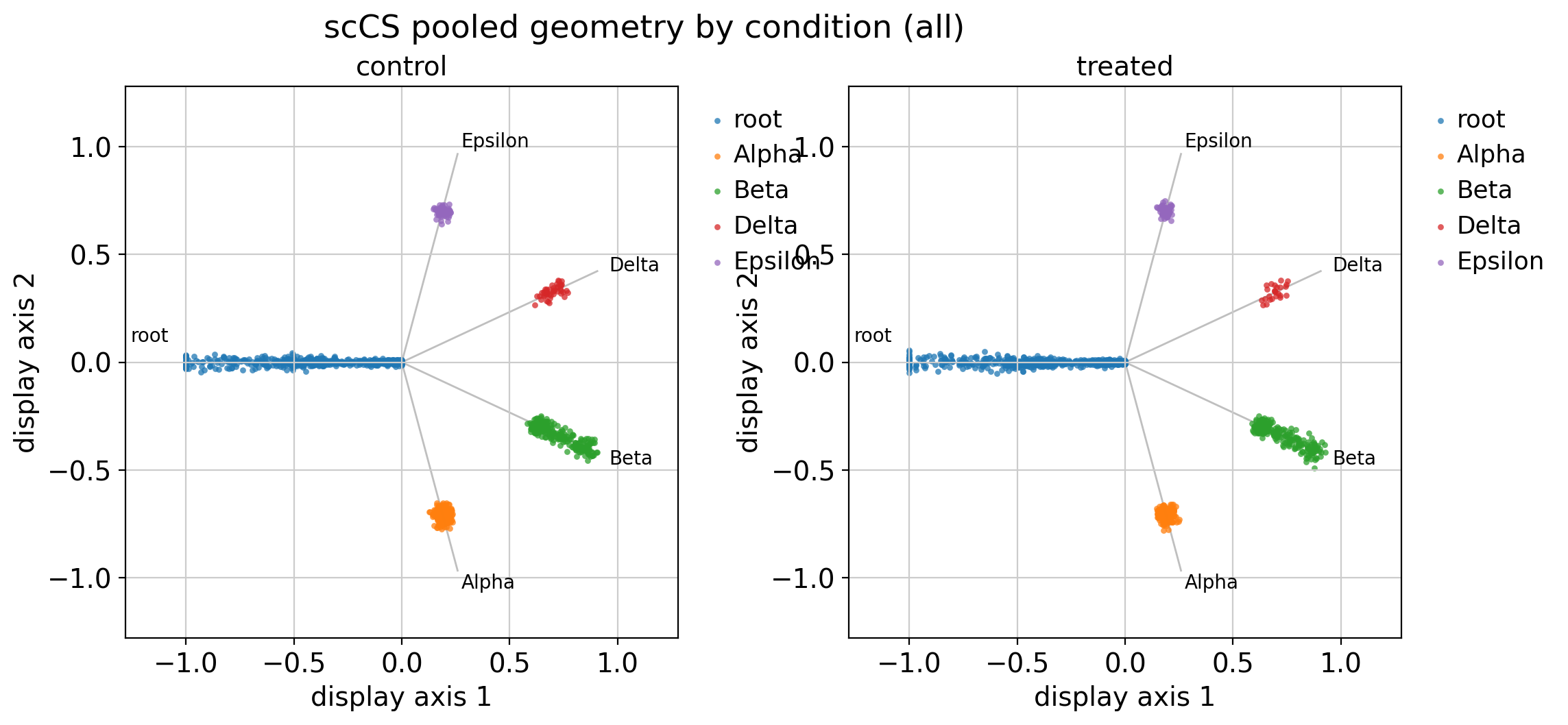

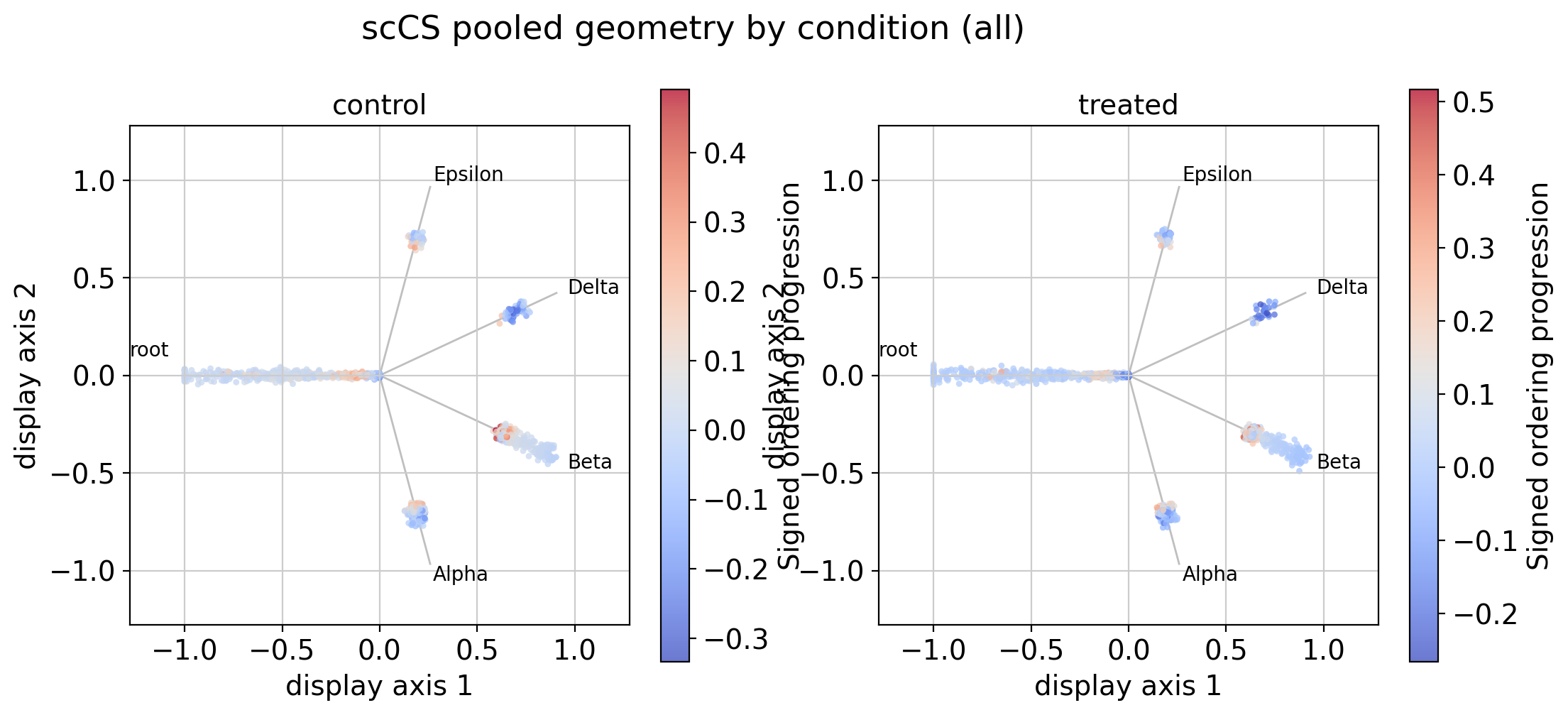

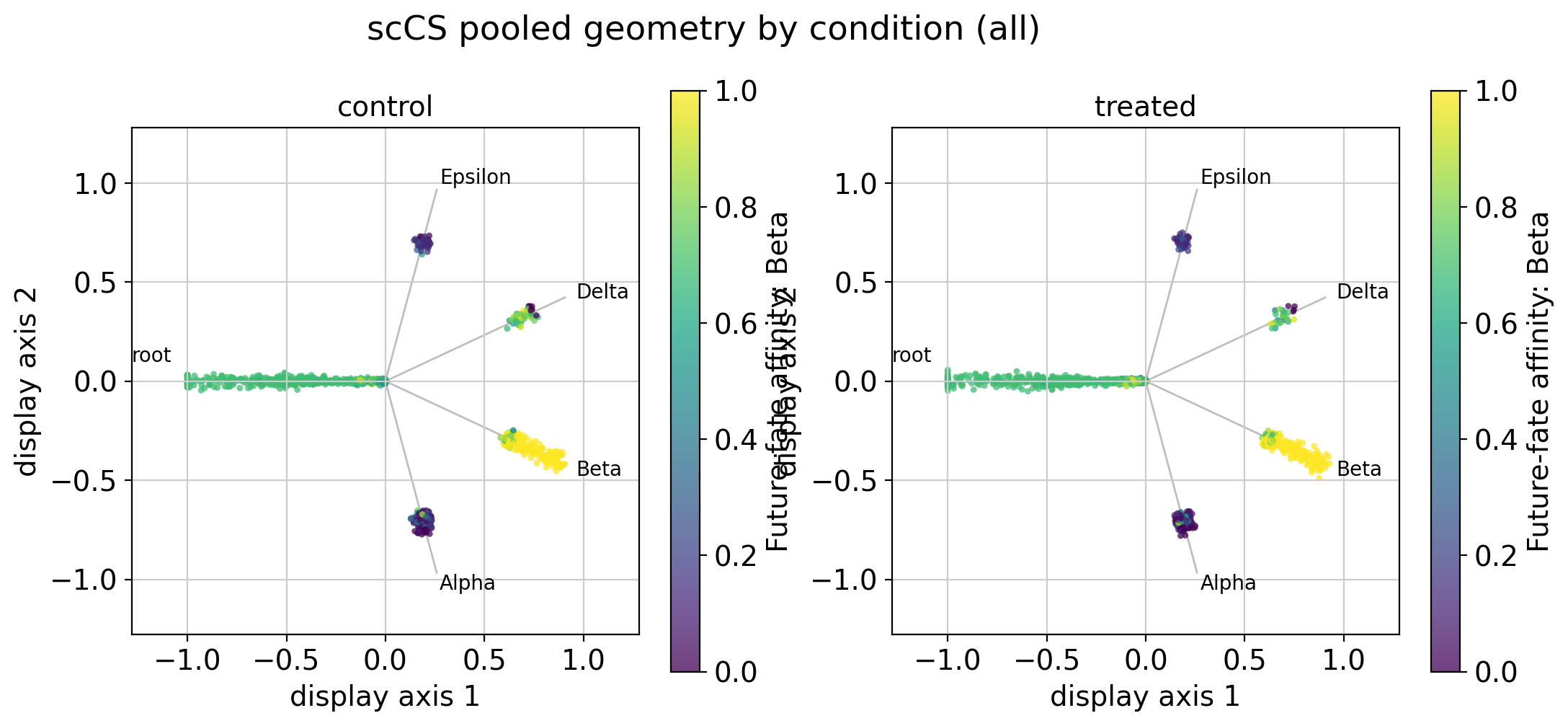

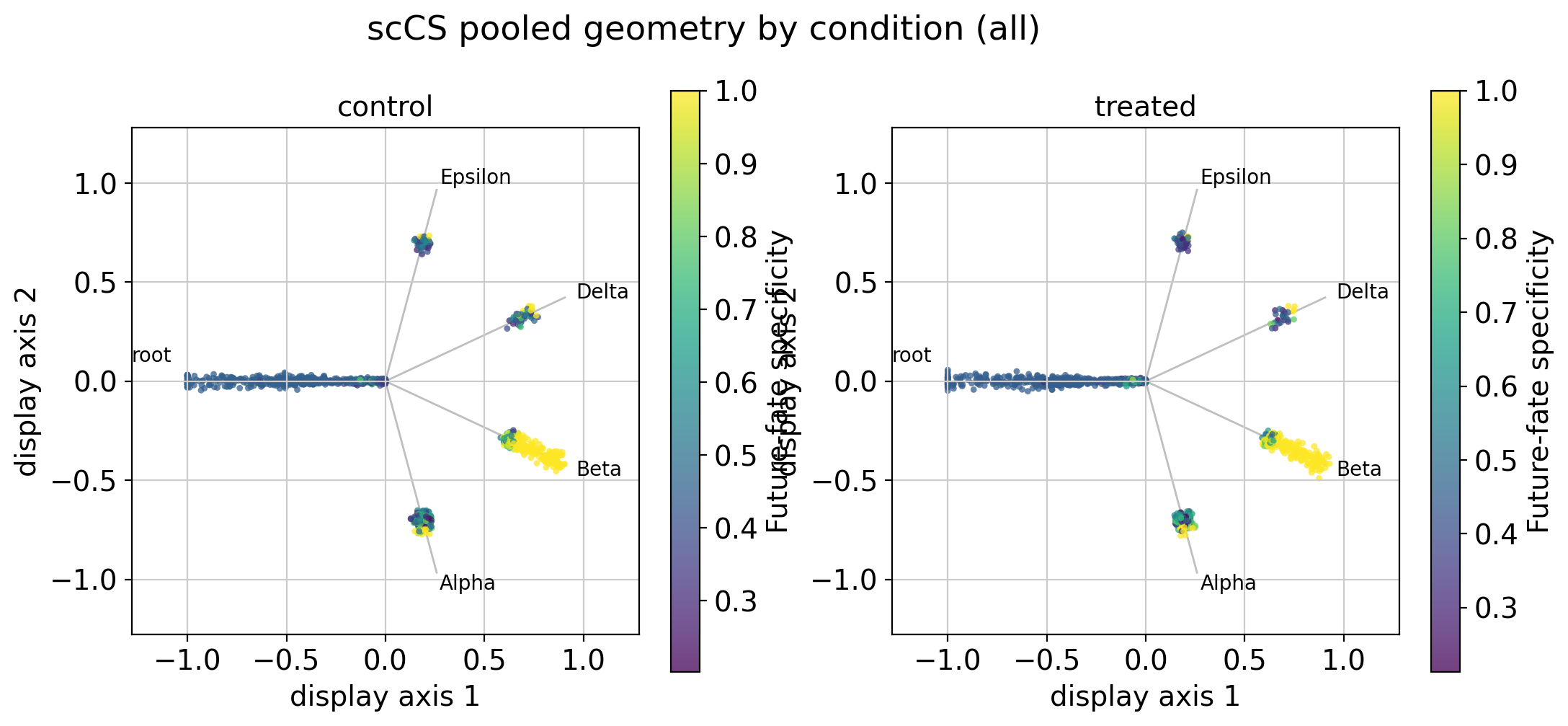

11. Condition-specific star grids¶
[14]:
for color_by, filename in (
("population", "star_population.png"),
(f"future_fate_affinity:{TARGET_FATE}", "star_target_affinity.png"),

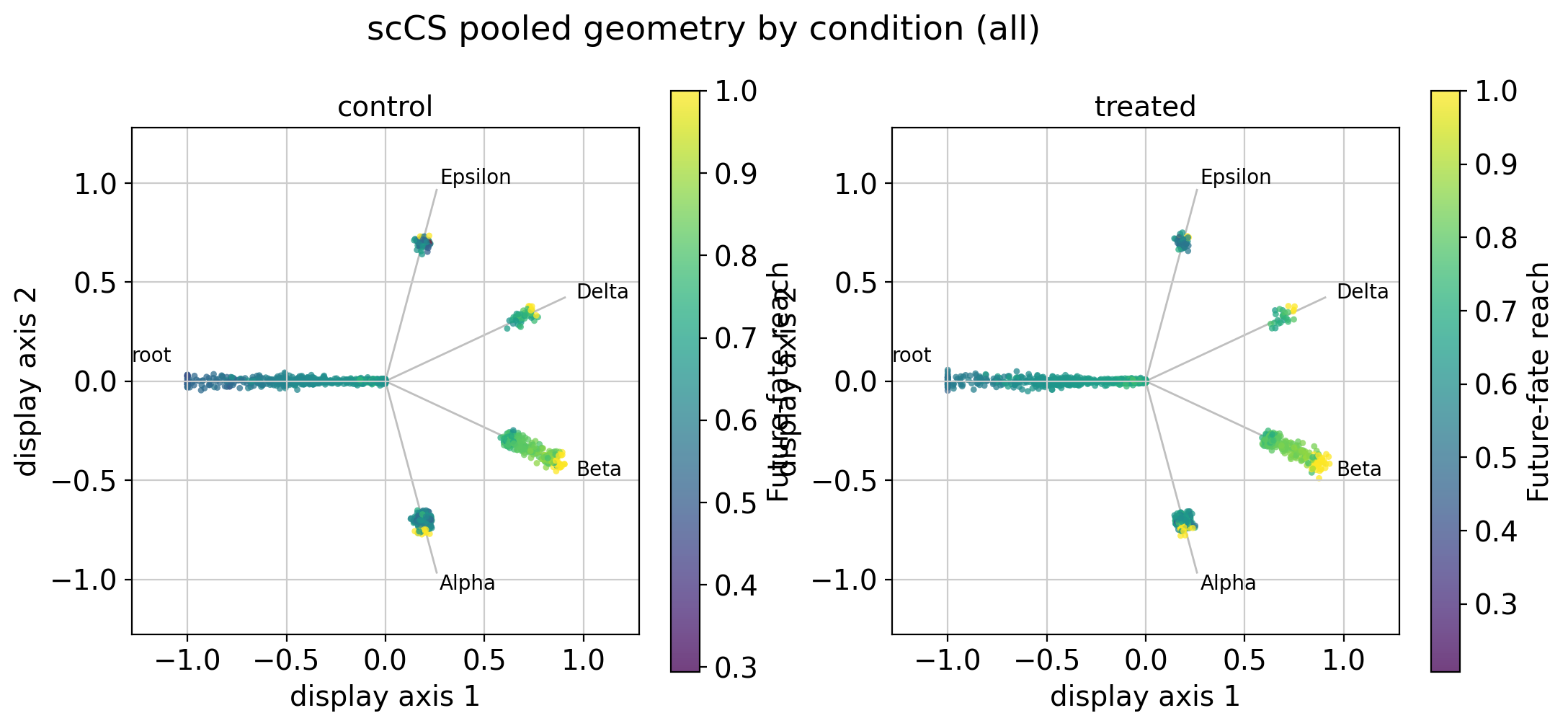

("future_fate_reach", "star_reach.png"),
("future_fate_specificity", "star_specificity.png"),

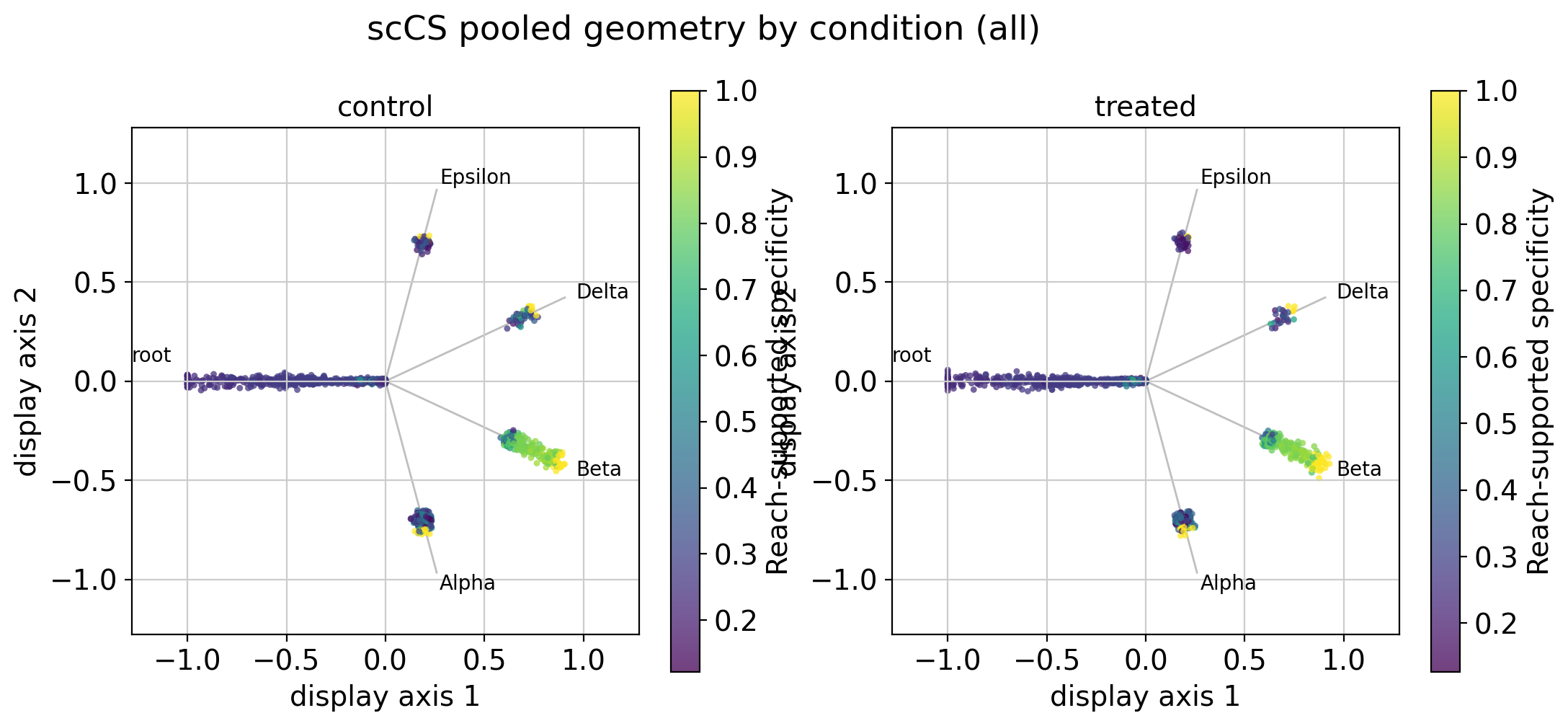

("reach_supported_specificity", "star_supported_specificity.png"),
("signed_progression", "star_signed_progression.png"),
):
figure = pair.plot_star_grid(
results,
color_by=color_by,
population="all",
ncols=2,
cmap="coolwarm" if color_by == "signed_progression" else None,
)
figure.savefig(OUTPUT_DIR / filename, dpi=200, bbox_inches="tight")
plt.show()

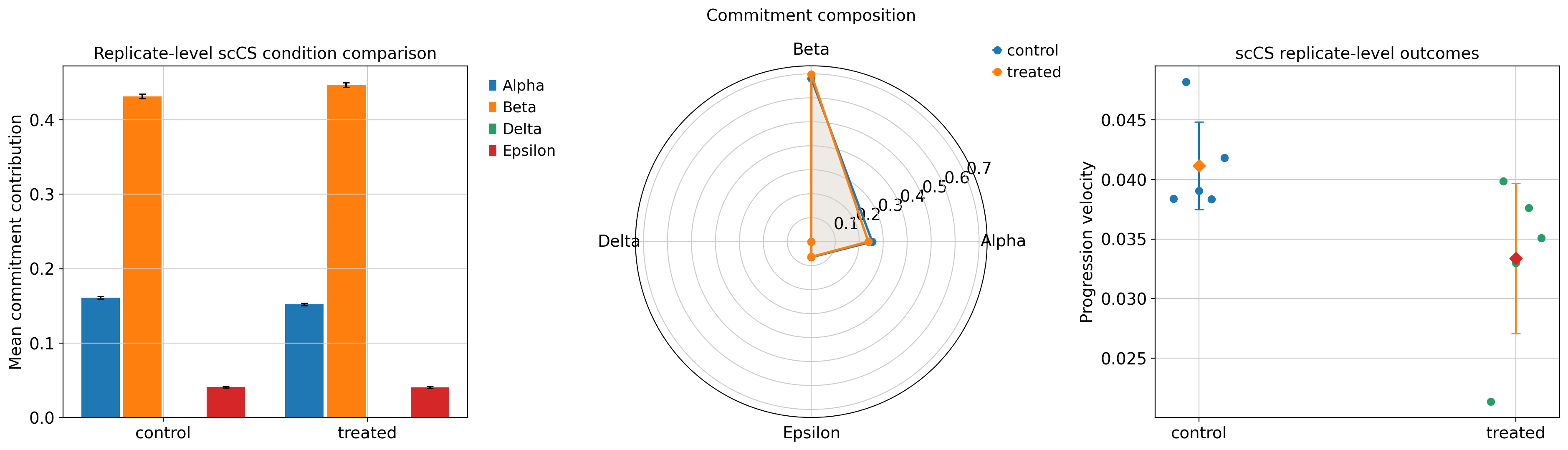

12. Condition summaries, composition, and trajectory shifts¶
[15]:
fig = plt.figure(figsize=(19, 5.5))
grid = fig.add_gridspec(1, 3, width_ratios=[1.15, 1.0, 1.15])
bar_ax = fig.add_subplot(grid[0, 0])
radar_ax = fig.add_subplot(grid[0, 1], projection="polar")
progression_ax = fig.add_subplot(grid[0, 2])
pair.plot_compare_conditions_bar(
results,
metric="future_fate_contribution",
ax=bar_ax,
)
pair.plot_commitment_vector_radar(
results,
metric="commitment_composition",
ax=radar_ax,
)
pair.plot_trajectory_shift(results, ax=progression_ax)
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "condition_summary_visuals.png", dpi=200, bbox_inches="tight")
plt.show()

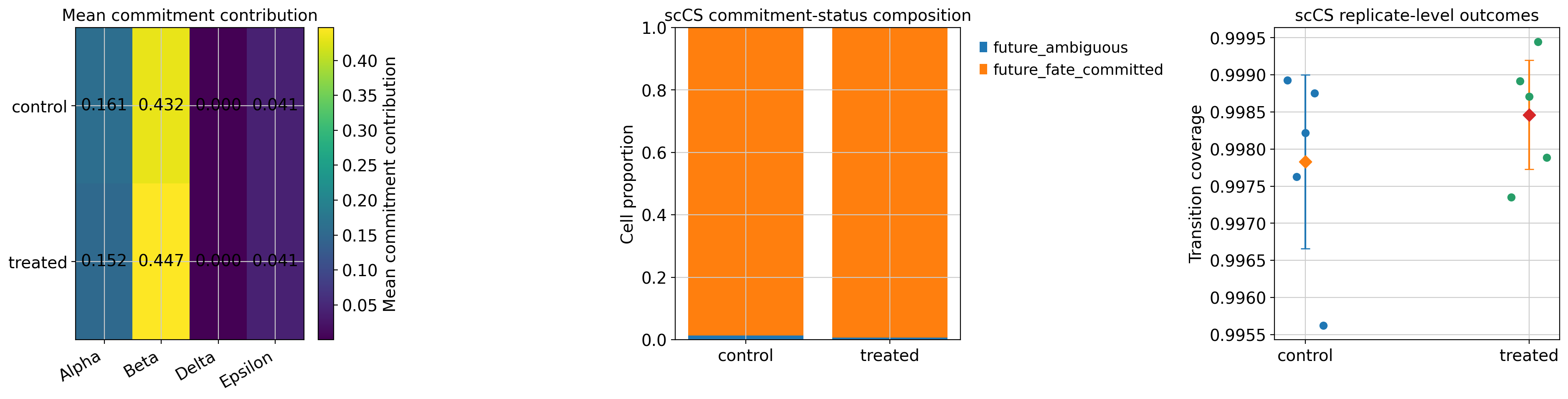

13. Heatmaps, status composition, and transition coverage¶
[16]:
fig, axes = plt.subplots(1, 3, figsize=(19, 5))
pair.plot_commitment_heatmap(
results,
metric="future_fate_contribution",
level="condition",
annotate=True,
ax=axes[0],
)
pair.plot_status_composition(results, ax=axes[1])
pair.plot_transition_coverage(results, ax=axes[2])
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "condition_heatmap_and_qc.png", dpi=200, bbox_inches="tight")
plt.show()

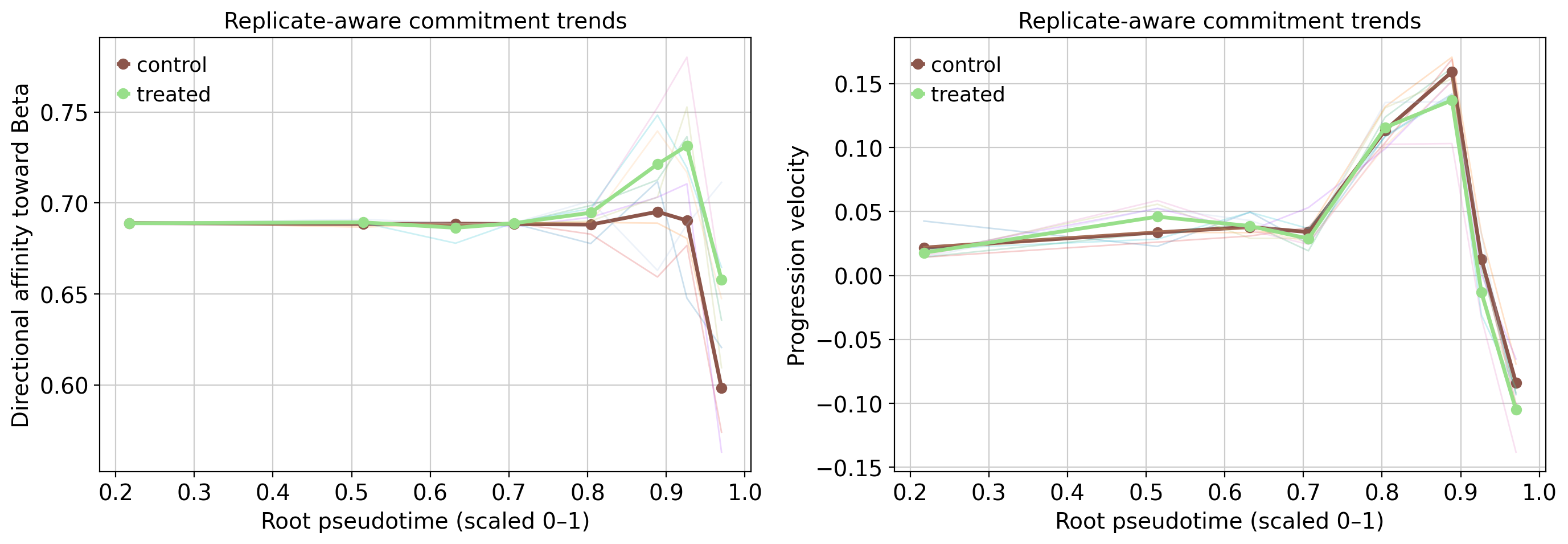

14. Ordering trends and display-only rose plots¶
[17]:
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
pair.plot_pseudotime_trends(
results,
pseudotime_key=ORDERING_KEY,
metric="future_fate_affinity",
fate=TARGET_FATE,
n_bins=8,
show_replicates=True,
ax=axes[0],
)
pair.plot_pseudotime_trends(
results,
pseudotime_key=ORDERING_KEY,
metric="signed_progression",
n_bins=8,
show_replicates=True,
ax=axes[1],
)
fig.tight_layout()
fig.savefig(OUTPUT_DIR / "ordering_trends.png", dpi=200, bbox_inches="tight")
plt.show()

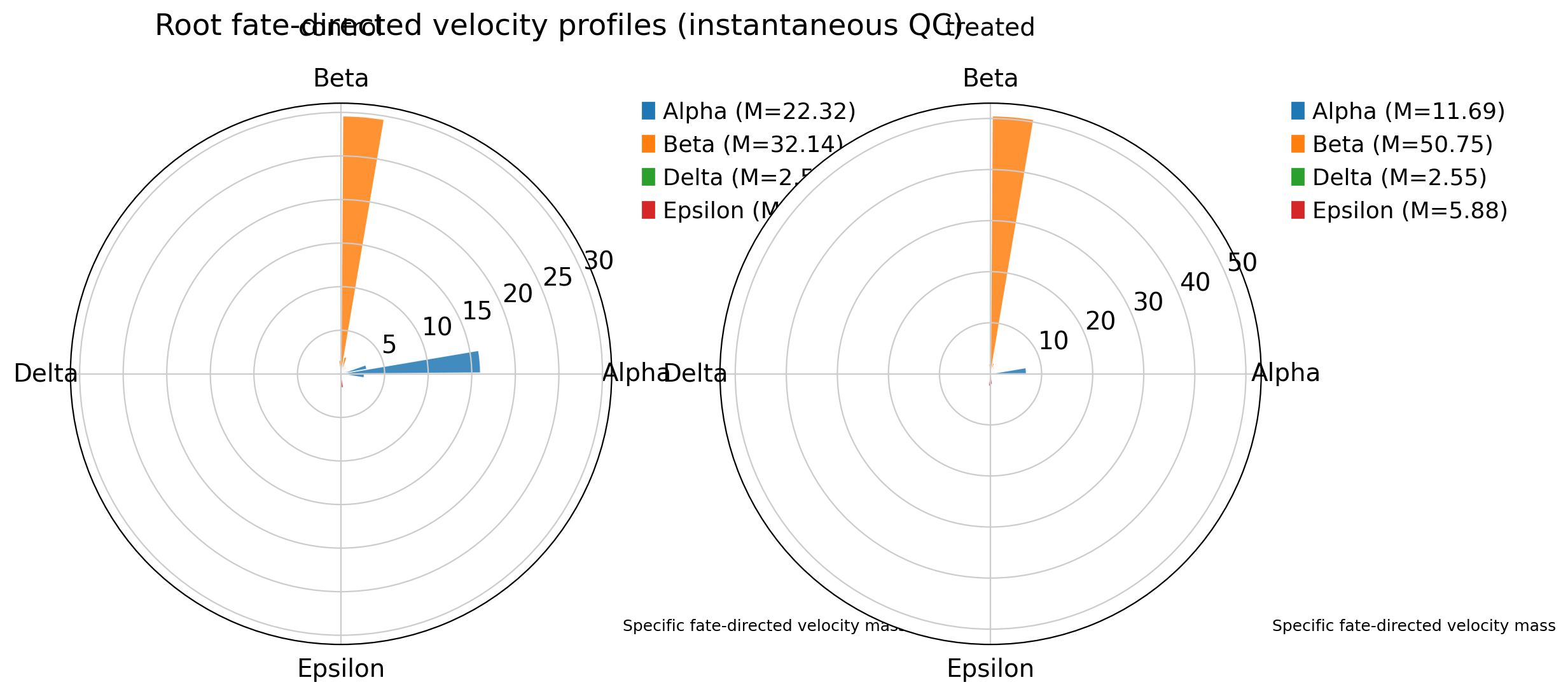

# Root branch roses summarize instantaneous fate-directed velocity after
# removing incoming-root progression. They are QC views, not discounted
# future-fate probabilities. Use an independent pooled scorer.
display_pair = scCS.PairScorer(
adata,
root=ROOT,
branches=FATES,
obs_key=OBS_KEY,
condition_obs_key=CONDITION_KEY,
replicate_obs_key=REPLICATE_KEY,
condition_order=list(CONDITIONS),
)
display_pair.build_embedding(ordering_metric=ORDERING_KEY, verbose=False)
display_pair.fit(
transition_matrix=analysis_transition,
scoring_mode="instantaneous",
transition_scope="pooled",
verbose=False,
)
display_results = display_pair.score_all_conditions(
population="root",
min_cells=1,
min_replicates=1,
)
rose_figure = display_pair.plot_rose_grid(
display_results,
population="root",
mode="branch",
n_bins=36,
ncols=2,
title="Root fate-directed velocity profiles (instantaneous QC)",
)
rose_figure.savefig(OUTPUT_DIR / "display_velocity_rose_grid.png", dpi=200, bbox_inches="tight")
plt.show()
[scCS] 'control': 625 root cells; 5 replicates.
[scCS] 'treated': 609 root cells; 5 replicates.

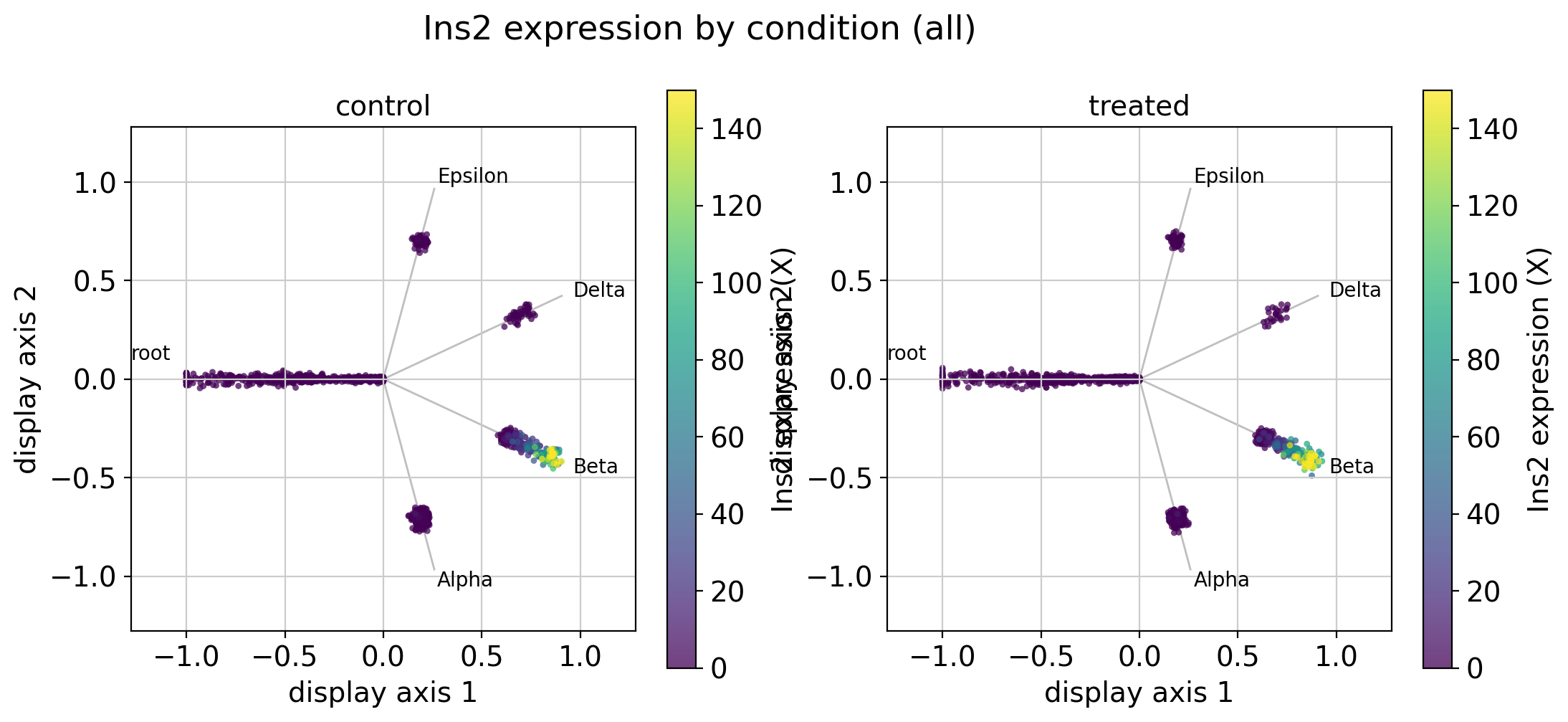

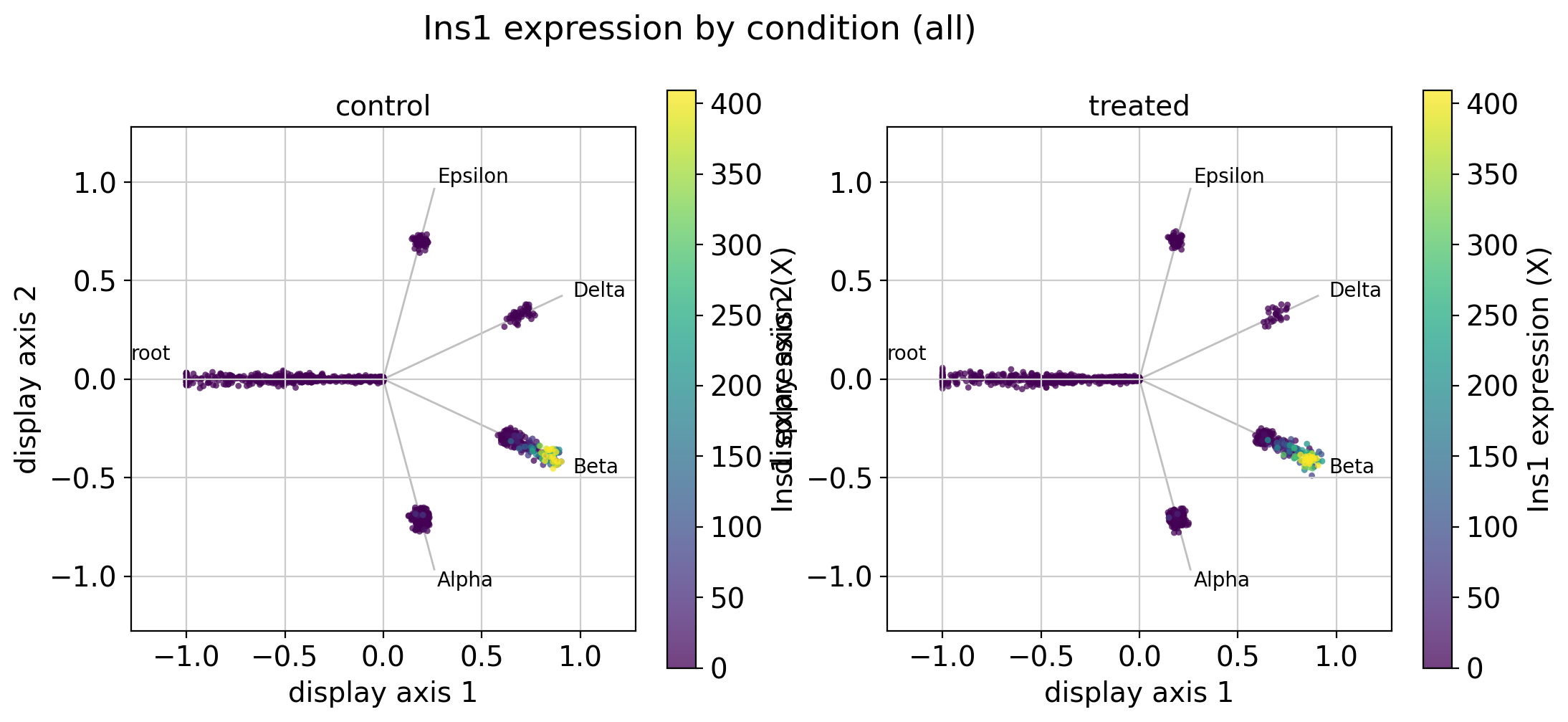

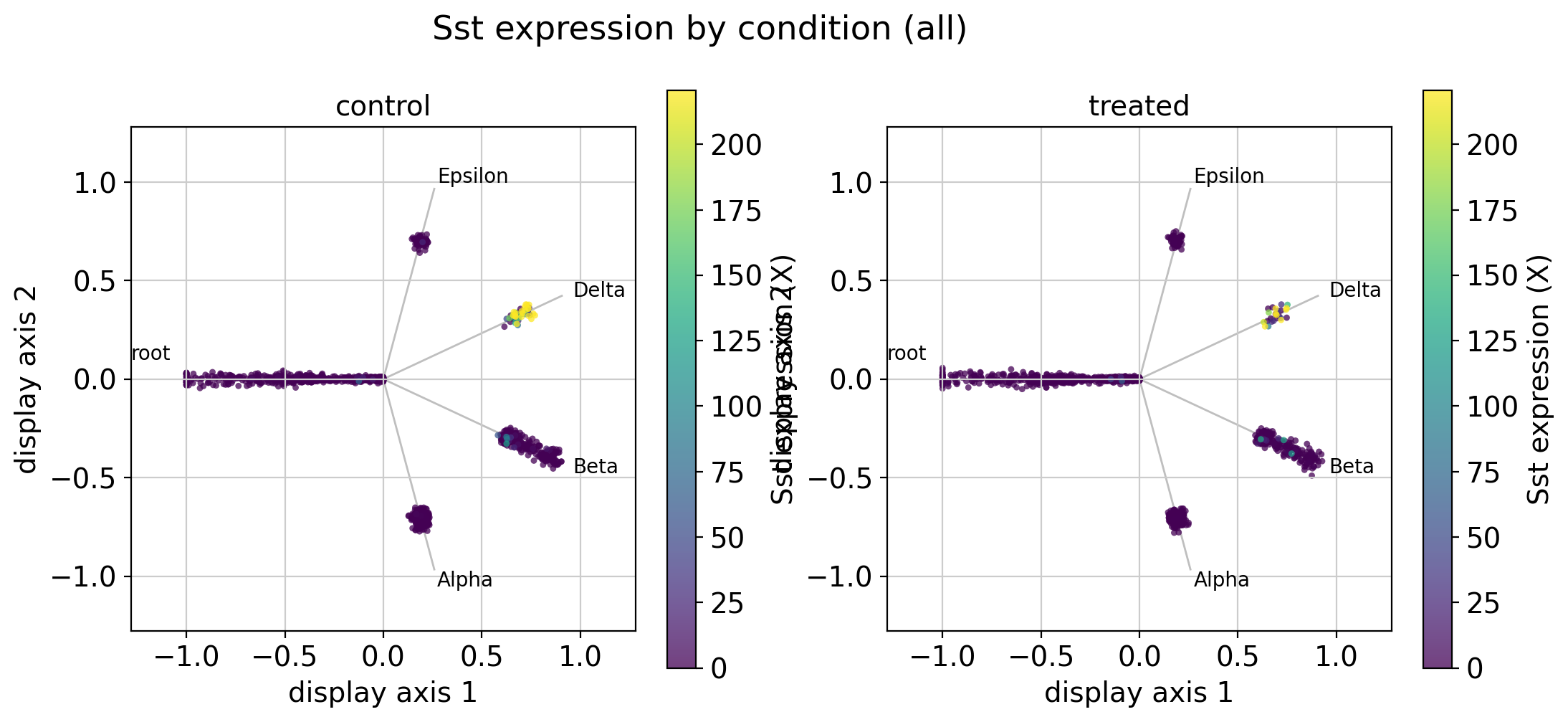

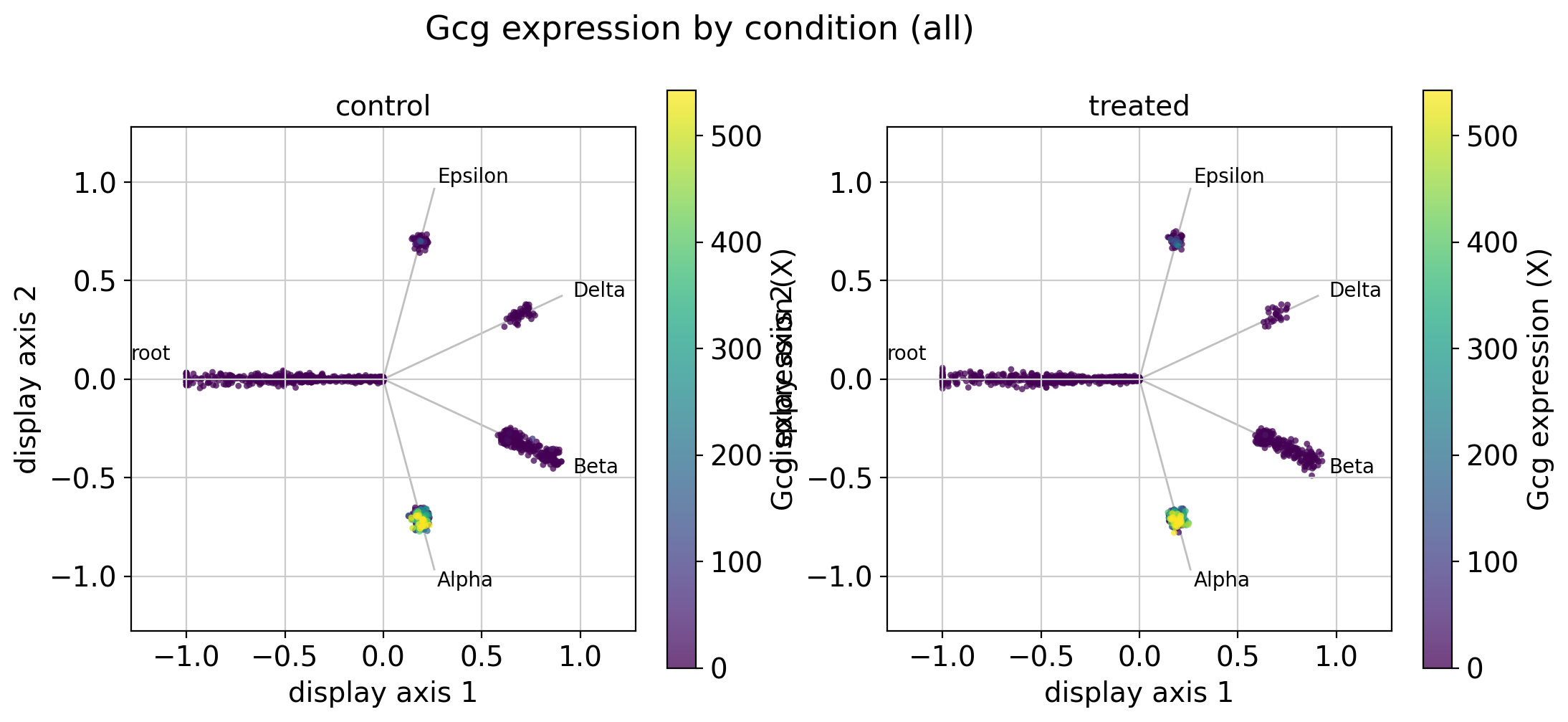

15. Gene expression across conditions on a shared scale¶
[18]:
gene_candidates = ["Ins1", "Ins2", "Gcg", "Sst", "Ghrl", "Neurog3"]
genes, missing_genes = resolve_present_genes(adata, gene_candidates)
print("Resolved genes:", genes)
print("Missing genes:", missing_genes)
for gene in genes[:4]:
figure = pair.plot_gene_expression_star_grid(
gene,
results,
population="all",
shared_scale=True,
ncols=2,
)
figure.savefig(
OUTPUT_DIR / f"gene_expression_{gene}.png",
dpi=200,
bbox_inches="tight",
)
plt.show()
Resolved genes: ['Ins1', 'Ins2', 'Gcg', 'Sst', 'Ghrl', 'Neurog3']
Missing genes: []
16. Optional transition-scope sensitivity¶
[19]:
if RUN_SCOPE_SENSITIVITY:
scope_tables = []
for scope in ("pooled", "condition", "replicate"):
scope_pair = scCS.PairScorer(
adata,
root=ROOT,
branches=FATES,
obs_key=OBS_KEY,
condition_obs_key=CONDITION_KEY,
replicate_obs_key=REPLICATE_KEY,
condition_order=list(CONDITIONS),
)
scope_pair.build_embedding(ordering_metric=ORDERING_KEY, verbose=False)
scope_pair.fit(
transition_matrix=analysis_transition,
transition_scope=scope,
scoring_mode="future_fate",
future_fate_options=FUTURE_OPTIONS,
verbose=False,
)
table = scope_pair.transition_scope_summary(population="root")
table["transition_scope"] = scope
scope_tables.append(table)
scope_summary = pd.concat(scope_tables, ignore_index=True)
display(scope_summary)
scope_summary.to_csv(OUTPUT_DIR / "transition_scope_sensitivity.csv", index=False)
else:
print("Set RUN_SCOPE_SENSITIVITY=True to compare pooled/blocked graphs.")
Set RUN_SCOPE_SENSITIVITY=True to compare pooled/blocked graphs.
17. Optional fail-closed mixed-model sensitivity¶
[20]:
if RUN_MIXED_MODEL_SENSITIVITY:
mixed = pair.fit_mixed_model(
metric="future_fate_affinity",
fate=TARGET_FATE,
results=results,
on_invalid="return",
)
display(mixed)
mixed.to_csv(OUTPUT_DIR / "mixed_model_sensitivity.csv", index=False)
else:
print("Permutation and hierarchical bootstrap are the primary inference.")
Permutation and hierarchical bootstrap are the primary inference.
18. Export analysis objects and statistical tables¶
[21]:
pair.result.write_to_adata(adata)
adata.write_h5ad(OUTPUT_DIR / "pair_scorer_analysis.h5ad")
target_affinity_stats.to_csv(OUTPUT_DIR / "primary_target_affinity_test.csv", index=False)
target_contribution_stats.to_csv(
OUTPUT_DIR / "primary_target_contribution_test.csv",
index=False,
)
print("Saved outputs to", OUTPUT_DIR.resolve())
Saved outputs to /home/emil/notebooks/08-tutorials/tutorial_outputs/pancreas_pair
19. Interpretation and real-study adaptation¶
In the controlled demonstration, the expected primary effect is increased future Beta affinity/contribution in treated. Reach or signed progression can also change and must be reported rather than assumed constant. Alpha, Delta, and Epsilon remain biologically complex branches.
For real data:
set
DEMO_MODE=False;provide genuine condition and independent replicate columns;
use the original velocity transition matrix without controlled reweighting;
verify condition balance, transition-scope assumptions, and replicate counts;
report effect sizes, raw and adjusted p-values, replicate counts, and confidence intervals;
do not treat cells as biological replicates.
