scCS Tutorial — Multi-Condition Analysis with MultiScorer¶
This tutorial demonstrates MultiScorer — the scCS class for analyses with 3 or more conditions — on a real-data illustrative example: the scVelo pancreatic endocrinogenesis dataset stratified by per-cell RNA-velocity magnitude into three tertiles (low_velocity, med_velocity, high_velocity).
The velocity-tertile split is an illustrative stratification, not a biological perturbation. In a real experiment,
condition_obs_keywould point to actual experimental conditions (e.g.,drug,genotype,timepoint). The downstream patterns shown here — per-condition driver discovery, pathway enrichment, expression trends — work identically on real biological condition labels.
What’s covered¶
Loading pancreas data and creating the 3-way velocity-tertile split
Initializing
MultiScorerand fitting the shared embeddingTier 1 — Score all conditions on the shared embedding

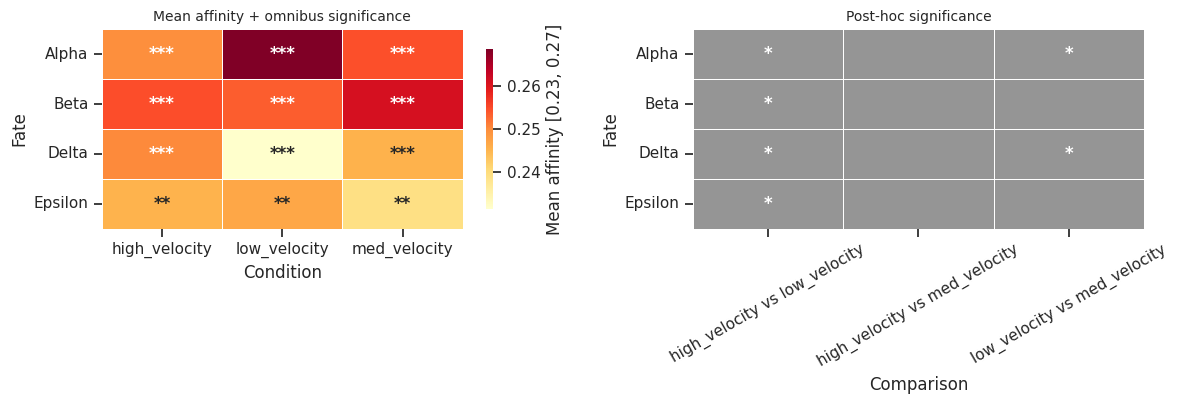

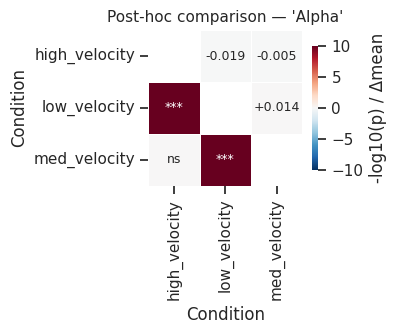

Tier 2 — Omnibus tests (Kruskal-Wallis / ANOVA) + post-hoc pairwise comparisons
Tier 3 — Mixed-effects models with reference contrasts

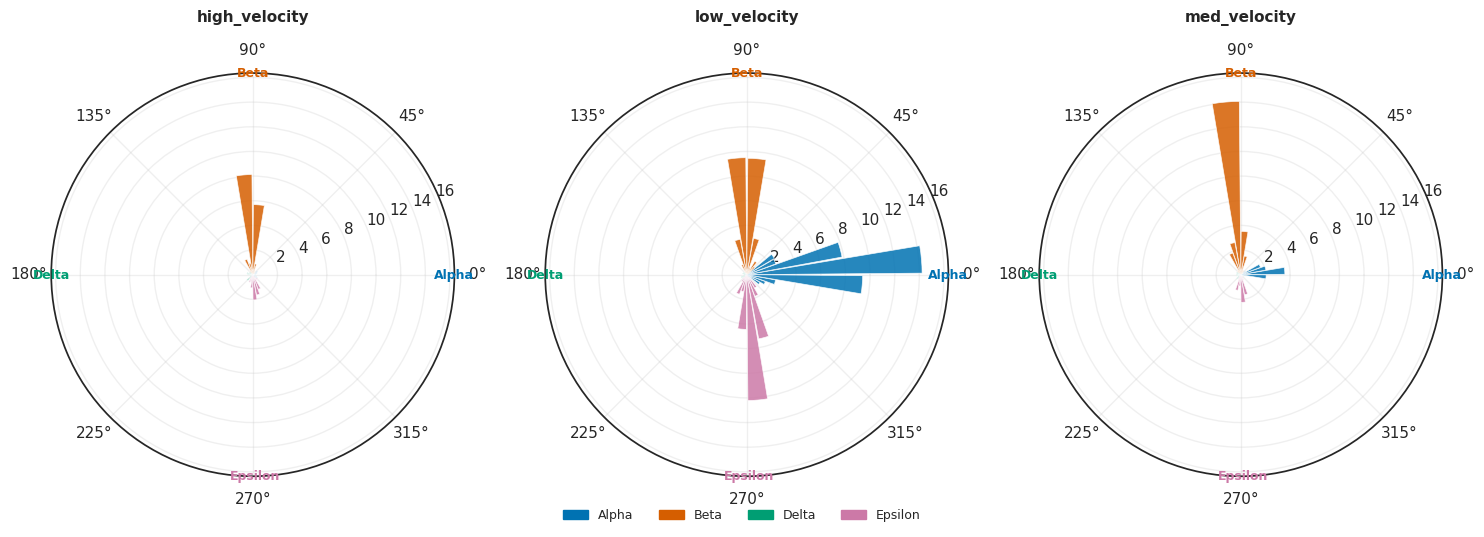

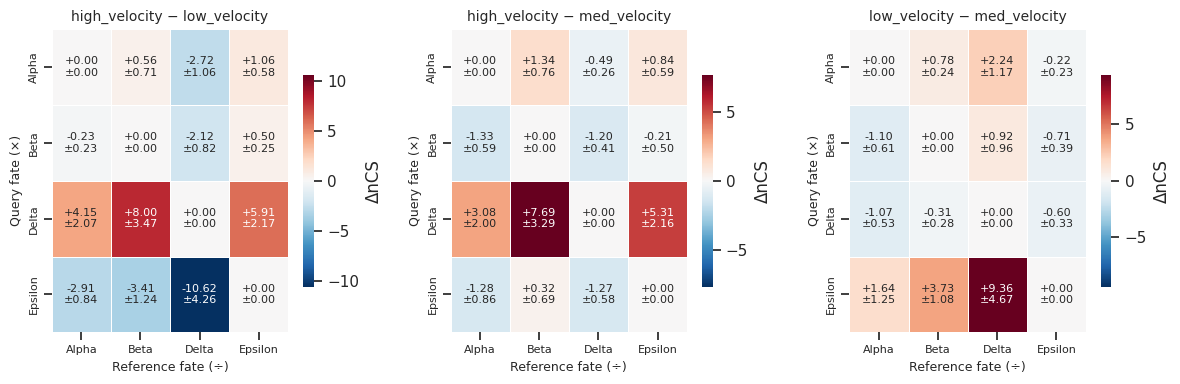

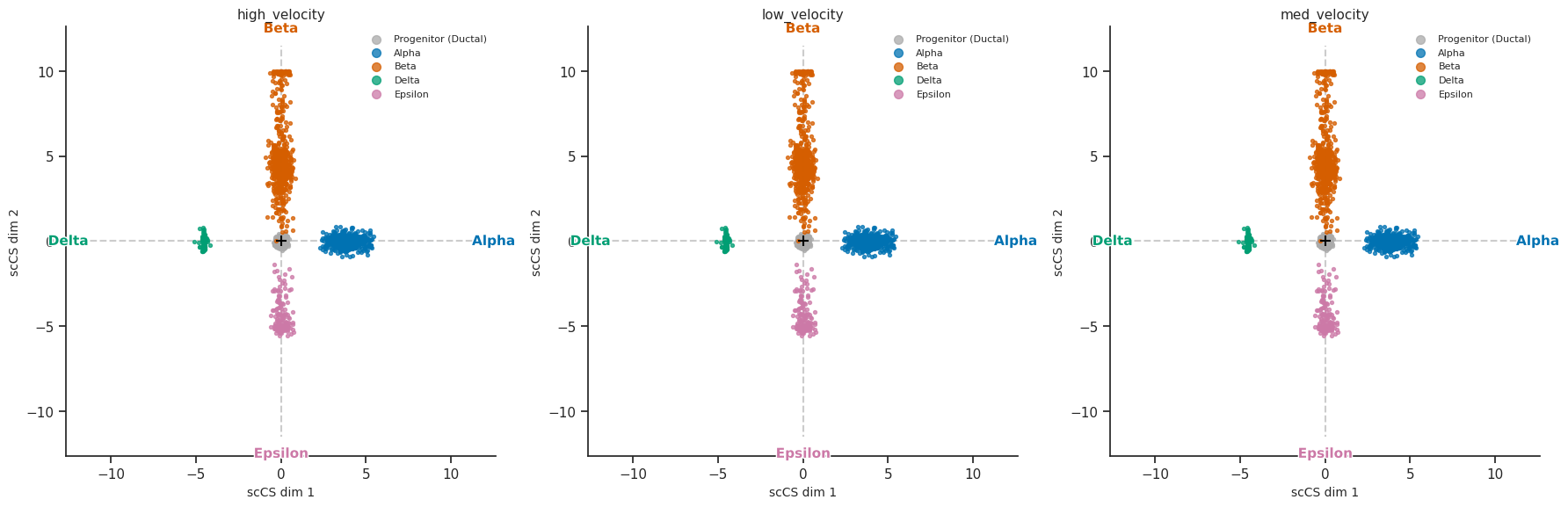

Standard multi-condition visualizations
Driver genes per condition (velocity + DEG)
Pathway enrichment per condition

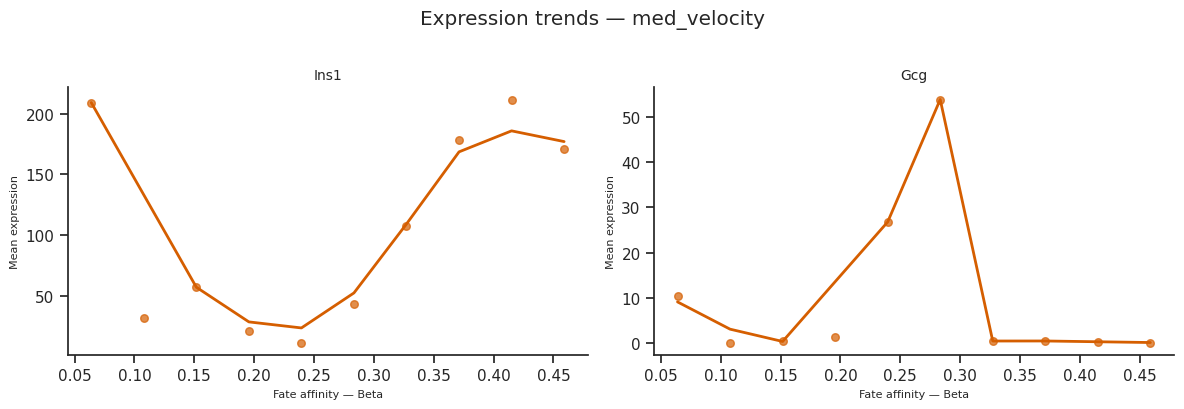

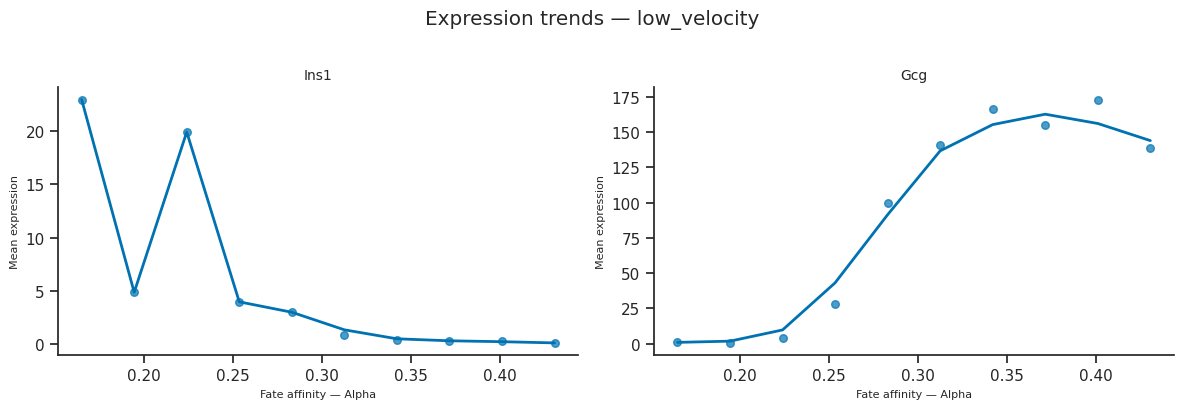

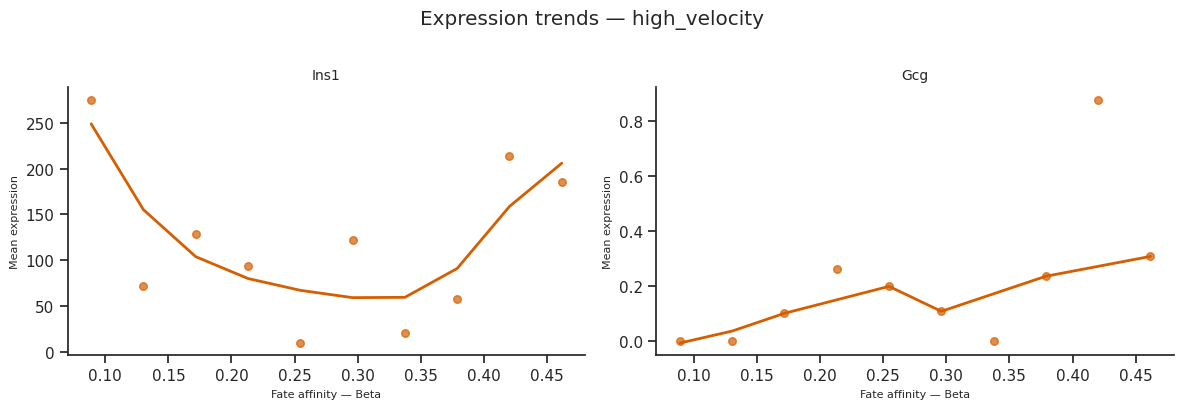

Expression trends along fate arms per condition
Transfer per-cell labels back to the full AnnData
For 2-condition comparisons use PairScorer (see scCS_tutorial_pairwise.ipynb).
[1]:
%matplotlib inline
import warnings, numpy as np, pandas as pd
import anndata as ad
import scanpy as sc, scvelo as scv
import matplotlib.pyplot as plt
import scCS
from scCS.drivers import (
get_velocity_drivers,
get_deg_drivers,
get_velocity_fate_drivers,
)
from scCS.enrichment import run_enrichment_per_fate
from scCS.plot import plot_expression_trends
warnings.filterwarnings("ignore", category=DeprecationWarning)
warnings.filterwarnings("ignore", category=FutureWarning)
try:
from statsmodels.tools.sm_exceptions import ConvergenceWarning
warnings.filterwarnings("ignore", category=ConvergenceWarning)
except ImportError:
pass
pd.set_option("display.max_rows", 25)
pd.set_option("display.max_columns", 15)
pd.set_option("display.width", 160)
print(f"scCS version: {scCS.__version__}")
# -------- compact display helpers for multi-condition tutorials --------
def _stack_drivers_by_condition(driver_dicts, n_per_fate=5, cols=None):
"""{cond: {fate: DataFrame}} -> one long table (condition, fate, ...)."""
out = []
for cond, fate_dict in driver_dicts.items():
for fate, df in fate_dict.items():
if df is None or len(df) == 0:
continue
block = df.head(n_per_fate).copy()
block.insert(0, "fate", fate)
block.insert(0, "condition", cond)
out.append(block)
if not out:
return pd.DataFrame()
big = pd.concat(out, ignore_index=True)
if cols is not None:
keep = ["condition", "fate"] + [c for c in cols if c in big.columns]
big = big[keep]
return big
def _stack_enrichment_by_condition(enrichment_dicts, n_per_group=3):
"""{cond: {fate: {direction: df}}} -> one long table."""
rows = []
for cond, fate_results in enrichment_dicts.items():
for fate, dir_results in fate_results.items():
for direction in ("up", "down"):
df = dir_results.get(direction, None)
if df is None or df.empty:
continue
top = df.head(n_per_group).copy()
top.insert(0, "direction", direction)
top.insert(0, "fate", fate)
top.insert(0, "condition", cond)
rows.append(top)
if not rows:
return pd.DataFrame()
return pd.concat(rows, ignore_index=True)
def _driver_overlap(per_cond_drivers, n_top=10, gene_col="gene"):
"""Build a fate x gene x condition presence matrix from {cond: {fate: df}}."""
rows = []
conds = list(per_cond_drivers.keys())
if not conds:
return pd.DataFrame()
fates = list(next(iter(per_cond_drivers.values())).keys())
for fate in fates:
sets = {}
for cond in conds:
df = per_cond_drivers[cond].get(fate)
if df is None or len(df) == 0 or gene_col not in df.columns:
sets[cond] = set()
else:
sets[cond] = set(df.head(n_top)[gene_col].astype(str))
all_genes = sorted(set.union(*sets.values())) if sets else []
for g in all_genes:
row = {"fate": fate, "gene": g}
for cond in conds:
row[cond] = g in sets[cond]
row["n_conds"] = sum(row[c] for c in conds)
row["shared_all"] = row["n_conds"] == len(conds)
rows.append(row)
return pd.DataFrame(rows)
scCS version: 0.7.4
1. Load pancreas data and build the 3-way velocity-tertile split¶
We use the same dataset as the pairwise tutorial (scvelo.datasets.pancreas) but split cells into three groups based on per-cell RNA-velocity magnitude tertiles instead of a median split. This gives us 3 conditions on which to exercise MultiScorer.
Note on velocity-tertile demo: the split is illustrative, not a real biological perturbation. Fates are imbalanced across tertiles (e.g., high-velocity cells are mostly Ngn3 progenitors with few terminal Alpha/Delta cells; low-velocity cells are mostly mature post-mitotic populations). Statistical tests below will pick up this structural difference. For a real condition variable (e.g., treatment, genotype) the tutorial code is identical.
[2]:
# Load pancreas + compute velocity
adata = scv.datasets.pancreas()
import inspect as _inspect
_fn_sig = _inspect.signature(scv.pp.filter_and_normalize).parameters
if "n_top_genes" in _fn_sig:
scv.pp.filter_and_normalize(adata, min_shared_counts=20, n_top_genes=2000)
else:
# scvelo builds without n_top_genes: do filter_and_normalize then HVG.
# Use flavor="cell_ranger" not the default "seurat": seurat passes
# int n_bins to pd.cut on log-dispersions which contain +/-inf for
# low-mean genes — pandas >= 2.2 rejects this with ValueError.
# cell_ranger uses explicit bin edges including +/-inf and is
# robust across pandas/py versions (scCS changelog v0.7.4).
scv.pp.filter_and_normalize(adata, min_shared_counts=20)
sc.pp.highly_variable_genes(
adata, n_top_genes=2000, subset=True, flavor="cell_ranger"
)
sc.pp.neighbors(adata)
scv.pp.moments(adata, n_pcs=None, n_neighbors=None)
# We use mode="deterministic" here because it's fast (~5s) and avoids a
# known scvelo + numpy 1.25+ scalar-conversion issue with mode="stochastic".
# For the dynamical model (slower, ~5-10 min on pancreas) instead use:
# scv.tl.recover_dynamics(adata)
# scv.tl.velocity(adata, mode="dynamical")
scv.tl.velocity(adata, mode="deterministic")
scv.tl.velocity_graph(adata)
scv.tl.velocity_pseudotime(adata)
# Per-cell velocity magnitude (NaN-safe across genes)
velocity_matrix = adata.layers["velocity"]
vel_magnitude = np.sqrt(np.nanmean(velocity_matrix ** 2, axis=1))
# 3-way tertile split
t1, t2 = np.nanquantile(vel_magnitude, [1 / 3, 2 / 3])
adata.obs["condition"] = pd.cut(
vel_magnitude,
bins=[-np.inf, t1, t2, np.inf],
labels=["low_velocity", "med_velocity", "high_velocity"],
).astype(str)
# Synthetic biological replicates (3 per condition) — for the mixed model later
rng = np.random.default_rng(42)
adata.obs["sample"] = [
f"{cond}_rep{rng.integers(1, 4)}" for cond in adata.obs["condition"]
]
print(adata)
print("\nCondition counts:")
print(adata.obs["condition"].value_counts())
print("\nReplicates per condition:")
print(adata.obs.groupby("condition", observed=True)["sample"].nunique())
Filtered out 20801 genes that are detected 20 counts (shared).
Normalized count data: X, spliced, unspliced.
computing moments based on connectivities
finished (0:00:00) --> added
'Ms' and 'Mu', moments of un/spliced abundances (adata.layers)
computing velocities
finished (0:00:00) --> added
'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/24 cores)
/home/emil/miniforge3/envs/lab-py312/lib/python3.12/multiprocessing/popen_fork.py:66: DeprecationWarning: This process (pid=5066) is multi-threaded, use of fork() may lead to deadlocks in the child.
self.pid = os.fork()
finished (0:00:01) --> added
'velocity_graph', sparse matrix with cosine correlations (adata.uns)
computing terminal states
identified 3 regions of root cells and 2 regions of end points .
finished (0:00:00) --> added
'root_cells', root cells of Markov diffusion process (adata.obs)
'end_points', end points of Markov diffusion process (adata.obs)
AnnData object with n_obs × n_vars = 3696 × 2000
obs: 'clusters_coarse', 'clusters', 'S_score', 'G2M_score', 'initial_size_unspliced', 'initial_size_spliced', 'initial_size', 'n_counts', 'velocity_self_transition', 'root_cells', 'end_points', 'velocity_pseudotime', 'condition', 'sample'
var: 'highly_variable_genes', 'gene_count_corr', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'velocity_gamma', 'velocity_qreg_ratio', 'velocity_r2', 'velocity_genes'
uns: 'clusters_coarse_colors', 'clusters_colors', 'day_colors', 'neighbors', 'pca', 'hvg', 'velocity_params', 'velocity_graph', 'velocity_graph_neg'
obsm: 'X_pca', 'X_umap'
layers: 'spliced', 'unspliced', 'Ms', 'Mu', 'velocity'
obsp: 'distances', 'connectivities'
Condition counts:
condition
med_velocity 1232
high_velocity 1232
low_velocity 1232
Name: count, dtype: int64
Replicates per condition:
condition
high_velocity 3
low_velocity 3
med_velocity 3
Name: sample, dtype: int64
2. Initialize MultiScorer¶
MultiScorer requires >= 3 conditions (it raises a helpful error otherwise pointing to PairScorer if you pass exactly 2). The condition_obs_key points to the column we just built. Replicate handling for Tier 3 mixed-models uses replicate_key.
[3]:
mscorer = scCS.MultiScorer(
adata,
root="Ductal",
branches=["Alpha", "Beta", "Delta", "Epsilon"],
condition_obs_key="condition",
obs_key="clusters",
)
print(mscorer)
print("\nConditions detected:", mscorer.conditions)
[scCS] MultiScorer initialized.
Conditions (3): ['high_velocity', 'low_velocity', 'med_velocity']
Root: 'Ductal', Branches: ['Alpha', 'Beta', 'Delta', 'Epsilon']
MultiScorer(root='Ductal', branches=['Alpha', 'Beta', 'Delta', 'Epsilon'], conditions=['high_velocity', 'low_velocity', 'med_velocity'], status='uninitialised')
Conditions detected: ['high_velocity', 'low_velocity', 'med_velocity']
4. Tier 1 — Score all conditions¶
Compute per-condition CS / nCS scores plus cell-level affinities and bootstrap CIs.
[5]:
results = mscorer.score_all_conditions(cell_level=True, n_bootstrap=200)
summary_rows = []
for cond, res in results.items():
summary_rows.append({
"condition": cond,
"n_cells_in_fate": int(res.n_cells_per_fate.sum()),
"unCS_alpha_beta": float(res.pairwise_unCS[res.fate_names.index("Alpha"), res.fate_names.index("Beta")])
if "Alpha" in res.fate_names and "Beta" in res.fate_names else np.nan,
"nCS_alpha_beta": float(res.pairwise_nCS[res.fate_names.index("Alpha"), res.fate_names.index("Beta")])
if "Alpha" in res.fate_names and "Beta" in res.fate_names else np.nan,
})
pd.DataFrame(summary_rows)
[scCS] Scoring condition: 'high_velocity' (633 cells)...
[scCS] Computing bootstrap CI (n=200)...
=== CommitmentScoreResult ===
Fates (4): Alpha, Beta, Delta, Epsilon
Dominant fate: Beta
Entropy metrics:
Population entropy: 0.7565 [aggregate velocity-mass balance]
Mean cell entropy: 0.9892 [per-cell average, k-way]
Per-fate cell entropy:
Alpha: 0.8224
Beta: 0.8109
Delta: 0.7921
Epsilon: 0.7915
Commitment vector (normalized):
Alpha: 0.0587
Beta: 0.5826
Delta: 0.0879
Epsilon: 0.2708
Pairwise nCS matrix:
Alpha Beta Delta Epsilon
Alpha 1.000000 1.880778 0.222604 1.336829
Beta 0.531695 1.000000 0.118357 0.710785
Delta 4.492291 8.449001 1.000000 6.005426
Epsilon 0.748039 1.406895 0.166516 1.000000
Bootstrap 95% CI on nCS (n=200):
CI low:
Alpha Beta Delta Epsilon
Alpha 1.000 1.075 0.131 0.789
Beta 0.307 1.000 0.078 0.437
Delta 2.378 5.225 1.000 3.403
Epsilon 0.399 0.918 0.109 1.000
CI high:
Alpha Beta Delta Epsilon
Alpha 1.000 3.261 0.421 2.508
Beta 0.930 1.000 0.191 1.090
Delta 7.653 12.820 1.000 9.162
Epsilon 1.268 2.286 0.294 1.000
[scCS] Scoring condition: 'low_velocity' (957 cells)...
[scCS] Computing bootstrap CI (n=200)...
=== CommitmentScoreResult ===
Fates (4): Alpha, Beta, Delta, Epsilon
Dominant fate: Alpha
Entropy metrics:
Population entropy: 0.8330 [aggregate velocity-mass balance]
Mean cell entropy: 0.9892 [per-cell average, k-way]
Per-fate cell entropy:
Alpha: 0.8224
Beta: 0.8109
Delta: 0.7921
Epsilon: 0.7915
Commitment vector (normalized):
Alpha: 0.4174
Beta: 0.2902
Delta: 0.0195
Epsilon: 0.2729
Pairwise nCS matrix:
Alpha Beta Delta Epsilon
Alpha 1.000000 1.315927 2.947273 0.273116
Beta 0.759921 1.000000 2.239694 0.207547
Delta 0.339297 0.446490 1.000000 0.092667
Epsilon 3.661447 4.818195 10.791283 1.000000
Bootstrap 95% CI on nCS (n=200):
CI low:
Alpha Beta Delta Epsilon
Alpha 1.000 1.072 1.955 0.208
Beta 0.578 1.000 1.496 0.156
Delta 0.198 0.277 1.000 0.056
Epsilon 2.701 3.384 6.932 1.000
CI high:
Alpha Beta Delta Epsilon
Alpha 1.000 1.729 5.042 0.370
Beta 0.933 1.000 3.605 0.295
Delta 0.512 0.669 1.000 0.144
Epsilon 4.812 6.418 17.811 1.000
[scCS] Scoring condition: 'med_velocity' (610 cells)...
[scCS] Computing bootstrap CI (n=200)...
=== CommitmentScoreResult ===
Fates (4): Alpha, Beta, Delta, Epsilon
Dominant fate: Beta
Entropy metrics:
Population entropy: 0.8042 [aggregate velocity-mass balance]
Mean cell entropy: 0.9892 [per-cell average, k-way]
Per-fate cell entropy:
Alpha: 0.8224
Beta: 0.8109
Delta: 0.7921
Epsilon: 0.7915
Commitment vector (normalized):
Alpha: 0.2271
Beta: 0.5552
Delta: 0.0520
Epsilon: 0.1657
Pairwise nCS matrix:
Alpha Beta Delta Epsilon
Alpha 1.000000 0.538022 0.708432 0.493838
Beta 1.858660 1.000000 1.316734 0.917876
Delta 1.411568 0.759455 1.000000 0.697085
Epsilon 2.024957 1.089471 1.434545 1.000000
Bootstrap 95% CI on nCS (n=200):
CI low:
Alpha Beta Delta Epsilon
Alpha 1.000 0.381 0.452 0.294
Beta 1.280 1.000 0.838 0.586
Delta 0.881 0.469 1.000 0.402
Epsilon 1.273 0.689 0.795 1.000
CI high:
Alpha Beta Delta Epsilon
Alpha 1.000 0.781 1.136 0.785
Beta 2.623 1.000 2.134 1.451
Delta 2.213 1.194 1.000 1.259
Epsilon 3.398 1.705 2.485 1.000
[5]:
| condition | n_cells_in_fate | unCS_alpha_beta | nCS_alpha_beta | |
|---|---|---|---|---|
| 0 | high_velocity | 157 | 0.100756 | 1.880778 |
| 1 | low_velocity | 812 | 1.438430 | 1.315927 |
| 2 | med_velocity | 315 | 0.409044 | 0.538022 |
5. Tier 2 — Omnibus tests¶
Test whether per-cell affinity scores differ across all conditions simultaneously, fate by fate.
Kruskal-Wallis (default): non-parametric, doesn’t assume normality.
ANOVA: parametric, faster.
[6]:
omnibus_df = mscorer.compare_omnibus(results, test="kruskal")
omnibus_df
=== Omnibus test (kruskal) across 3 conditions ===
Significant fates: 4 / 4
fate test statistic pval pval_adj significant
Alpha kruskal-wallis 156.075014 1.284521e-34 5.138084e-34 True
Beta kruskal-wallis 16.778824 2.272609e-04 9.090435e-04 True
Delta kruskal-wallis 156.910776 8.457808e-35 3.383123e-34 True
Epsilon kruskal-wallis 15.441959 4.434260e-04 1.773704e-03 True
[6]:
| fate | test | statistic | pval | n_conditions | pval_adj | significant | |
|---|---|---|---|---|---|---|---|
| 0 | Alpha | kruskal-wallis | 156.075014 | 1.284521e-34 | 3 | 5.138084e-34 | True |
| 1 | Beta | kruskal-wallis | 16.778824 | 2.272609e-04 | 3 | 9.090435e-04 | True |
| 2 | Delta | kruskal-wallis | 156.910776 | 8.457808e-35 | 3 | 3.383123e-34 | True |
| 3 | Epsilon | kruskal-wallis | 15.441959 | 4.434260e-04 | 3 | 1.773704e-03 | True |
6. Tier 2 — Post-hoc pairwise comparisons¶
When the omnibus rejects H0, follow up with pairwise post-hoc tests.
dunn: standard non-parametric post-hoc for Kruskal-Wallis (Bonferroni-corrected).tukey: standard parametric post-hoc for ANOVA.mwu: Mann-Whitney U for each pair, Bonferroni-corrected.
Pass omnibus_results= to restrict post-hoc to fates that passed omnibus.
[7]:
posthoc_df = mscorer.compare_posthoc(
results,
omnibus_results=omnibus_df,
method="dunn",
pval_correction="bonferroni",
pval_threshold=0.05,
)
posthoc_df
=== Post-hoc comparison (dunn, correction=bonferroni) ===
Significant pairs: 6 / 12
fate comparison method pval pval_adj delta_mean
Alpha high_velocity vs low_velocity dunn 1.158355e-29 1.390026e-28 -0.018806
Alpha low_velocity vs med_velocity dunn 1.069279e-20 1.283135e-19 0.014005
Beta high_velocity vs low_velocity dunn 5.344060e-05 6.412872e-04 0.001263
Delta high_velocity vs low_velocity dunn 6.652264e-30 7.982717e-29 0.018908
Delta low_velocity vs med_velocity dunn 1.109400e-20 1.331281e-19 -0.014062
Epsilon high_velocity vs low_velocity dunn 1.048553e-04 1.258264e-03 -0.001364
[7]:
| fate | comparison | method | statistic | pval | mean_A | mean_B | delta_mean | pval_adj | significant | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Alpha | high_velocity vs low_velocity | dunn | NaN | 1.158355e-29 | 0.249787 | 0.268593 | -0.018806 | 1.390026e-28 | True |
| 1 | Alpha | high_velocity vs med_velocity | dunn | NaN | 9.014552e-02 | 0.249787 | 0.254588 | -0.004801 | 1.000000e+00 | False |
| 2 | Alpha | low_velocity vs med_velocity | dunn | NaN | 1.069279e-20 | 0.268593 | 0.254588 | 0.014005 | 1.283135e-19 | True |
| 3 | Beta | high_velocity vs low_velocity | dunn | NaN | 5.344060e-05 | 0.254747 | 0.253484 | 0.001263 | 6.412872e-04 | True |
| 4 | Beta | high_velocity vs med_velocity | dunn | NaN | 1.034544e-01 | 0.254747 | 0.260941 | -0.006195 | 1.000000e+00 | False |
| 5 | Beta | low_velocity vs med_velocity | dunn | NaN | 2.698207e-02 | 0.253484 | 0.260941 | -0.007458 | 3.237848e-01 | False |
| 6 | Delta | high_velocity vs low_velocity | dunn | NaN | 6.652264e-30 | 0.250201 | 0.231294 | 0.018908 | 7.982717e-29 | True |
| 7 | Delta | high_velocity vs med_velocity | dunn | NaN | 8.150100e-02 | 0.250201 | 0.245356 | 0.004845 | 9.780120e-01 | False |
| 8 | Delta | low_velocity vs med_velocity | dunn | NaN | 1.109400e-20 | 0.231294 | 0.245356 | -0.014062 | 1.331281e-19 | True |
| 9 | Epsilon | high_velocity vs low_velocity | dunn | NaN | 1.048553e-04 | 0.245265 | 0.246630 | -0.001364 | 1.258264e-03 | True |
| 10 | Epsilon | high_velocity vs med_velocity | dunn | NaN | 1.139209e-01 | 0.245265 | 0.239115 | 0.006151 | 1.000000e+00 | False |
| 11 | Epsilon | low_velocity vs med_velocity | dunn | NaN | 3.532275e-02 | 0.246630 | 0.239115 | 0.007515 | 4.238730e-01 | False |
7. Compute pairwise deltas (ΔnCS) for all condition pairs¶
[8]:
deltas = mscorer.compute_pairwise_deltas(n_bootstrap=100, verbose=False)
delta_rows = []
for (cond_a, cond_b), delta in deltas.items():
fate_names_d = delta["fate_names"]
k = len(fate_names_d)
for i in range(k):
for j in range(i + 1, k):
delta_rows.append({
"cond_a": cond_a,
"cond_b": cond_b,
"fate_pair": f"{fate_names_d[i]} vs {fate_names_d[j]}",
"delta_nCS": float(delta["delta_nCS"][i, j]),
"CI_low": float(delta["ci_low"][i, j]),
"CI_high": float(delta["ci_high"][i, j]),
})
pd.DataFrame(delta_rows)
[8]:
| cond_a | cond_b | fate_pair | delta_nCS | CI_low | CI_high | |
|---|---|---|---|---|---|---|
| 0 | high_velocity | low_velocity | Alpha vs Beta | 0.564851 | -0.051601 | 1.366215 |
| 1 | high_velocity | low_velocity | Alpha vs Delta | -2.724670 | -4.147149 | -2.035804 |
| 2 | high_velocity | low_velocity | Alpha vs Epsilon | 1.063713 | 0.607047 | 1.774658 |
| 3 | high_velocity | low_velocity | Beta vs Delta | -2.121337 | -3.143616 | -1.511814 |
| 4 | high_velocity | low_velocity | Beta vs Epsilon | 0.503239 | 0.288870 | 0.789858 |
| 5 | high_velocity | low_velocity | Delta vs Epsilon | 5.912758 | 3.766956 | 8.101832 |
| 6 | high_velocity | med_velocity | Alpha vs Beta | 1.342756 | 0.683284 | 2.208189 |
| 7 | high_velocity | med_velocity | Alpha vs Delta | -0.485829 | -0.736719 | -0.216908 |
| 8 | high_velocity | med_velocity | Alpha vs Epsilon | 0.842992 | 0.318774 | 1.503781 |
| 9 | high_velocity | med_velocity | Beta vs Delta | -1.198377 | -1.632024 | -0.819982 |
| 10 | high_velocity | med_velocity | Beta vs Epsilon | -0.207091 | -0.743554 | 0.246893 |
| 11 | high_velocity | med_velocity | Delta vs Epsilon | 5.308340 | 3.154044 | 7.473284 |
| 12 | low_velocity | med_velocity | Alpha vs Beta | 0.777905 | 0.590668 | 1.079409 |
| 13 | low_velocity | med_velocity | Alpha vs Delta | 2.238841 | 1.541933 | 3.886388 |
| 14 | low_velocity | med_velocity | Alpha vs Epsilon | -0.220722 | -0.505912 | -0.038625 |
| 15 | low_velocity | med_velocity | Beta vs Delta | 0.922960 | 0.221573 | 2.134772 |
| 16 | low_velocity | med_velocity | Beta vs Epsilon | -0.710330 | -1.164860 | -0.390430 |
| 17 | low_velocity | med_velocity | Delta vs Epsilon | -0.604418 | -1.061001 | -0.396445 |
8. Tier 3 — Mixed-effects model with reference contrasts¶
Fits per-cell affinity ~ condition + (1 | replicate), with one of the conditions as the reference. Returns coefficient estimates for each non-reference condition.
[9]:
contrasts_df = mscorer.fit_mixed_model_contrasts(
results,
ref_condition="low_velocity",
replicate_key="sample",
)
contrasts_df.head(20)
=== Mixed-effects model contrasts ===
Significant contrasts: 0 / 8
[9]:
| fate | contrast | condition_a | condition_b | coef | std_err | z_score | pval | pval_adj | significant | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Alpha | high_velocity vs low_velocity | high_velocity | low_velocity | 0.487261 | NaN | 0.0 | 1.0 | 1.0 | False |
| 1 | Alpha | med_velocity vs low_velocity | med_velocity | low_velocity | 0.370473 | NaN | 0.0 | 1.0 | 1.0 | False |
| 2 | Beta | high_velocity vs low_velocity | high_velocity | low_velocity | 1.327102 | NaN | 0.0 | 1.0 | 1.0 | False |
| 3 | Beta | med_velocity vs low_velocity | med_velocity | low_velocity | -0.213693 | NaN | 0.0 | 1.0 | 1.0 | False |
| 4 | Delta | high_velocity vs low_velocity | high_velocity | low_velocity | -0.042396 | NaN | 0.0 | 1.0 | 1.0 | False |
| 5 | Delta | med_velocity vs low_velocity | med_velocity | low_velocity | 0.249594 | NaN | 0.0 | 1.0 | 1.0 | False |
| 6 | Epsilon | high_velocity vs low_velocity | high_velocity | low_velocity | -2.542953 | NaN | 0.0 | 1.0 | 1.0 | False |
| 7 | Epsilon | med_velocity vs low_velocity | med_velocity | low_velocity | 0.172580 | NaN | 0.0 | 1.0 | 1.0 | False |
9. Visualizations¶
[10]:
# Omnibus summary: fates x conditions heatmap (also marks post-hoc significance)
fig = mscorer.plot_omnibus_summary(omnibus_df, results, posthoc_df=posthoc_df)
fig.savefig("multi_omnibus_summary.png", dpi=120, bbox_inches="tight")
plt.show()
[11]:
# Per-fate post-hoc heatmap (shows which condition pairs differ)
fig = mscorer.plot_posthoc_heatmap(posthoc_df)
fig.savefig("multi_posthoc_heatmap.png", dpi=120, bbox_inches="tight")
plt.show()
[12]:
# Pairwise delta grid: ΔCS heatmaps for all condition pairs
fig = mscorer.plot_pairwise_delta_grid(deltas)
fig.savefig("multi_pairwise_deltas.png", dpi=120, bbox_inches="tight")
plt.show()
[13]:
# Standard multi-condition visualizations (shared with PairScorer)
fig = mscorer.plot_star_grid(results)
plt.show()
fig = mscorer.plot_rose_grid(results)
plt.show()
10. Driver genes per condition¶
For each condition we mask the shared embedding’s adata_sub to that condition, then run the same drivers used in SingleScorer — get_velocity_drivers and get_deg_drivers. The compact _stack_drivers_by_condition helper concatenates the per-fate results into one tidy (condition, fate, gene, ...) table.
This pattern lets you ask:
“Which genes drive each fate decisionwithineach condition?”
“Which driver genes aresharedacross all conditions vscondition-specific?”
[14]:
adata_sub_shared = mscorer._scorer.adata_sub
fate_names = mscorer._scorer._fate_map.fate_names
root_cluster = mscorer._scorer.root
obs_key_used = mscorer._scorer.obs_key
vel_drivers_per_cond = {}
for cond in mscorer.conditions:
mask = (adata_sub_shared.obs[mscorer.condition_obs_key].astype(str) == cond).values
sub = adata_sub_shared[mask].copy()
vel_drivers_per_cond[cond] = get_velocity_drivers(
sub,
fate_names=fate_names,
obs_key=obs_key_used,
root=root_cluster,
n_top_genes=20,
)
# One compact table: (condition, fate, gene, delta_velocity, mean_velocity, rank)
print("Top velocity drivers (top 5 per fate, per condition):")
_stack_drivers_by_condition(
vel_drivers_per_cond,
n_per_fate=5,
cols=["gene", "delta_velocity", "mean_velocity", "rank"],
)
── Velocity drivers: Alpha (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 10.138916 10.179033
2 Hs6st3 3.034873 3.104659
3 Fam155a 2.228252 2.250724
4 Rora 1.744673 1.288695
5 Kcnma1 1.205779 1.199826
6 Ndst4 1.142244 1.151202
7 Stxbp5l 1.115459 1.149110
8 Glud1 1.078897 0.986085
9 Dock11 1.037627 1.048391
10 Rims2 0.969603 1.035052
11 Kcnb2 0.855988 0.901875
12 Tnr 0.838274 0.840978
13 Nlgn1 0.813350 0.828963
14 Cacna1d 0.786799 0.842683
15 Cacna1a 0.772174 0.479498
16 Tmem178b 0.724432 0.726721
17 Meis2 0.640396 1.320285
18 Rgs7 0.633256 0.633126
19 Unc79 0.553534 0.561987
20 Gnao1 0.547504 0.557490
── Velocity drivers: Beta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 3.382511 3.422628
2 Rora 2.651336 2.195358
3 Ins2 1.267590 1.869774
4 Hs6st3 1.112840 1.182626
5 Fam155a 0.823156 0.845628
6 Sntg1 0.803178 0.959989
7 Kcnmb2 0.722441 0.731022
8 Rims2 0.625068 0.690516
9 Gnas 0.566056 0.370796
10 Gnao1 0.533264 0.543250
11 Tmem108 0.484175 0.502514
12 Cpe 0.482112 0.480504
13 Phactr1 0.474257 0.432363
14 Pax6 0.409636 0.406289
15 Unc5c 0.385509 0.392267
16 Map1b 0.382621 0.384673
17 Rnf220 0.329072 -0.704068
18 Rfx6 0.316811 0.337776
19 Pim2 0.312921 0.318306
20 Macrod2 0.312186 0.852050
── Velocity drivers: Delta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Hs6st3 2.518699 2.588486
2 Fam155a 2.233560 2.256033
3 Macrod2 1.641149 2.181014
4 Stxbp5l 1.554508 1.588159
5 Pip5k1b 1.302159 1.617899
6 Pcsk2 1.195035 1.186527
7 Ghr 1.095726 1.105962
8 Prkca 1.086828 1.211758
9 Slc16a12 0.868062 0.982354
10 Sdk1 0.794813 0.840292
11 Abcc8 0.771486 0.795749
12 Unc79 0.697671 0.706124
13 Ctnna3 0.692108 0.699166
14 Gnao1 0.668201 0.678187
15 Fbxl17 0.657306 1.152713
16 Nol4 0.630128 0.639353
17 Ptprt 0.620964 0.676163
18 Cacna1d 0.606272 0.662156
19 Cacna1a 0.588065 0.295389
20 Tshz3 0.571219 0.568317
── Velocity drivers: Epsilon (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 7.266768 7.306885
2 Cacna1c 4.574422 4.559257
3 9030622O22Rik 3.141153 3.523523
4 Cacna1a 2.290157 1.997480
5 Maml3 2.246315 2.489925
6 Cadps 2.023596 2.027040
7 Ghrl 1.524408 1.524595
8 Rapgef4 1.362765 1.443573
9 Pam 1.338101 1.679233
10 Ghr 1.154232 1.164467
11 Sorcs1 1.091565 1.137015
12 Runx1t1 0.970272 0.964474
13 Rimbp2 0.893447 0.889542
14 Pard3 0.851990 0.369684
15 Kcnma1 0.826091 0.820138
16 Setbp1 0.775604 0.874517
17 Slc7a14 0.755812 0.751685
18 Gstz1 0.730673 0.386536
19 Gnao1 0.694398 0.704384
20 Kcnd2 0.670332 0.675399
── Velocity drivers: Alpha (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 4.946443 5.012487
2 Hs6st3 1.900544 1.959349
3 Auts2 1.824287 2.177465
4 Park2 1.416998 1.663597
5 Fam155a 0.830096 0.837425
6 Cacna1a 0.823989 0.444519
7 Zcchc16 0.746371 0.767187
8 Gnao1 0.719144 0.711517
9 Rims2 0.706261 0.827242
10 Macrod2 0.656080 0.851456
11 Kctd8 0.563886 0.565218
12 Chrm3 0.547148 0.611220
13 Kcnma1 0.544609 0.545178
14 Sdk1 0.512390 0.524567
15 Unc79 0.459880 0.419348
16 Tmem178b 0.441969 0.445359
17 Cacna1c 0.429449 0.458596
18 Nlgn1 0.424375 0.445873
19 Sorcs1 0.412837 0.428996
20 Pcsk2 0.385351 0.388765
── Velocity drivers: Beta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Hs6st3 2.056397 2.115201
2 Ptprn2 1.646501 1.712545
3 Ins2 1.640553 2.172913
4 Nnat 1.464386 1.480304
5 Park2 1.388878 1.635477
6 Abcc8 1.196749 1.221476
7 Rora 1.107728 0.719490
8 Gnao1 1.025234 1.017608
9 Cadps 0.882353 0.916004
10 Sdk1 0.736400 0.748576
11 Fam155a 0.674569 0.681898
12 Gng12 0.656559 0.699961
13 Maml3 0.639099 0.987928
14 Cacna1a 0.638900 0.259430
15 Tmem108 0.574204 0.578854
16 Macrod2 0.551186 0.746562
17 Rims2 0.535604 0.656585
18 Unc5c 0.514555 0.520736
19 Kcnmb2 0.464552 0.466642
20 Unc79 0.440983 0.400451
── Velocity drivers: Delta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Rora 4.120846 3.732608
2 Cacna1a 1.505980 1.126510
3 Hs6st3 1.480293 1.539098
4 Fam155a 1.426345 1.433674
5 Kcnd2 1.362409 1.371242
6 Asic2 1.297021 1.297021
7 Park2 1.221469 1.468067
8 Pip5k1b 1.090178 1.402752
9 Ptprn2 1.041894 1.107937
10 Abcc8 0.939510 0.964237
11 Cacna1c 0.921160 0.950308
12 Macrod2 0.901842 1.097218
13 Ank2 0.719375 0.670792
14 Kcnh8 0.636324 0.589051
15 Kcnma1 0.628848 0.629416
16 Phactr1 0.575674 0.518170
17 Zcchc16 0.561209 0.582024
18 Map1b 0.560959 0.566319
19 Rims2 0.545161 0.666142
20 Slc7a14 0.539349 0.539058
── Velocity drivers: Epsilon (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Auts2 2.888110 3.241288
2 Park2 1.922998 2.169597
3 Fam155a 1.501959 1.509288
4 Kcnma1 1.364251 1.364820
5 Sphkap 1.008352 1.014405
6 Mast4 0.923207 1.209805
7 Zcchc16 0.891418 0.912233
8 Rims2 0.864141 0.985122
9 9030622O22Rik 0.845331 1.251969
10 Cadps 0.767456 0.801107
11 Hs6st3 0.742775 0.801580
12 Gnao1 0.671777 0.664150
13 Cacna1c 0.653965 0.683112
14 Cacna1a 0.625256 0.245785
15 Sorcs1 0.610847 0.627006
16 Kcnb2 0.568632 0.640924
17 Kcnd2 0.541085 0.549917
18 Unc79 0.525438 0.484906
19 Map1b 0.504821 0.510181
20 Rfx6 0.480548 0.499856
── Velocity drivers: Alpha (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 5.065232 4.972903
2 Hs6st3 2.101268 2.160700
3 Park2 1.049840 1.606843
4 Fam155a 1.024209 1.038476
5 Auts2 0.979488 1.735276
6 Rims2 0.787453 0.852751
7 Kcnma1 0.763136 0.760720
8 Zcchc16 0.675566 0.695090
9 Macrod2 0.602498 0.864472
10 Kctd8 0.562066 0.548849
11 Nlgn1 0.532786 0.552278
12 Tmem178b 0.528826 0.529526
13 Cacna1a 0.496395 0.321379
14 Sorcs1 0.479955 0.494385
15 Gnao1 0.449957 0.452301
16 Unc79 0.443202 0.445140
17 Glud1 0.359886 0.334689
18 Ndst4 0.351433 0.358264
19 Chrm3 0.326816 0.462213
20 Kcnip4 0.319257 0.370047
── Velocity drivers: Beta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ins2 9.558885 10.156736
2 Ptprn2 3.255148 3.162819
3 Rora 1.666505 1.843346
4 Hs6st3 1.391292 1.450724
5 Phactr1 0.967009 0.905735
6 Sntg1 0.918031 1.298722
7 Park2 0.891937 1.448940
8 Nnat 0.832265 0.847311
9 Fam155a 0.729469 0.743736
10 Gnao1 0.685975 0.688319
11 Macrod2 0.644620 0.906594
12 Rims2 0.643239 0.708537
13 Kcnmb2 0.473439 0.478471
14 Unc5c 0.449677 0.458875
15 Maml3 0.449581 0.691347
16 Rapgef4 0.448530 0.488526
17 Pax6 0.414843 0.411885
18 Tmem108 0.408576 0.445672
19 Abcc8 0.400374 0.416758
20 Fam219a 0.323444 0.333184
── Velocity drivers: Delta (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Hs6st3 2.254268 2.313700
2 Rora 2.149730 2.326570
3 Fam155a 1.761150 1.775418
4 Macrod2 1.227703 1.489677
5 Cacna1a 1.133342 0.958327
6 Pip5k1b 0.948238 1.236933
7 Abcc8 0.851071 0.867455
8 Slc16a12 0.839184 0.930028
9 Cacna1c 0.798074 0.800853
10 Kcnd2 0.777342 0.791671
11 Asic2 0.730172 0.732178
12 Ptprt 0.713642 0.751418
13 Map1b 0.630941 0.632863
14 Gatsl2 0.561950 0.596788
15 Tshz3 0.535825 0.543022
16 Prkca 0.531170 0.610961
17 Slc7a14 0.526877 0.528869
18 Stxbp5l 0.511966 0.541099
19 Ank2 0.473522 0.462186
20 Kcnh8 0.466996 0.511684
── Velocity drivers: Epsilon (top 20, sorted by delta_velocity) ──
rank gene delta_velocity mean_velocity
1 Ptprn2 2.387180 2.294851
2 9030622O22Rik 1.907413 2.330741
3 Cacna1c 1.846774 1.849553
4 Sorcs1 1.739625 1.754055
5 Fam155a 1.015867 1.030134
6 Maml3 0.973382 1.215148
7 Rapgef4 0.943933 0.983929
8 Sphkap 0.866295 0.867441
9 Hs6st3 0.820497 0.879930
10 Park2 0.810861 1.367864
11 Zcchc16 0.794487 0.814011
12 Auts2 0.778251 1.534039
13 Unc79 0.724618 0.726556
14 Ctnna3 0.648964 0.663372
15 Cadps 0.637715 0.652266
16 Cacna1a 0.596067 0.421051
17 Kcnma1 0.588465 0.586048
18 Mamld1 0.576373 0.644715
19 Rims2 0.551724 0.617022
20 Rimbp2 0.526820 0.533911
Top velocity drivers (top 5 per fate, per condition):
[14]:
| condition | fate | gene | delta_velocity | mean_velocity | rank | |
|---|---|---|---|---|---|---|
| 0 | high_velocity | Alpha | Ptprn2 | 10.138916 | 10.179033 | 1 |
| 1 | high_velocity | Alpha | Hs6st3 | 3.034873 | 3.104659 | 2 |
| 2 | high_velocity | Alpha | Fam155a | 2.228252 | 2.250724 | 3 |
| 3 | high_velocity | Alpha | Rora | 1.744673 | 1.288695 | 4 |
| 4 | high_velocity | Alpha | Kcnma1 | 1.205779 | 1.199826 | 5 |
| ... | ... | ... | ... | ... | ... | ... |
| 55 | med_velocity | Epsilon | Ptprn2 | 2.387180 | 2.294851 | 1 |
| 56 | med_velocity | Epsilon | 9030622O22Rik | 1.907413 | 2.330741 | 2 |
| 57 | med_velocity | Epsilon | Cacna1c | 1.846774 | 1.849553 | 3 |
| 58 | med_velocity | Epsilon | Sorcs1 | 1.739625 | 1.754055 | 4 |
| 59 | med_velocity | Epsilon | Fam155a | 1.015867 | 1.030134 | 5 |
60 rows × 6 columns
[15]:
deg_drivers_per_cond = {}
for cond in mscorer.conditions:
mask = (adata_sub_shared.obs[mscorer.condition_obs_key].astype(str) == cond).values
sub = adata_sub_shared[mask].copy()
deg_drivers_per_cond[cond] = get_deg_drivers(
sub,
fate_names=fate_names,
obs_key=obs_key_used,
root=root_cluster,
n_top_genes=20,
pval_threshold=0.05,
logfc_threshold=0.25,
)
# One compact table: (condition, fate, gene, logfoldchange, pval_adj, pct_*)
print("Top DEG drivers (top 5 per fate, per condition):")
_stack_drivers_by_condition(
deg_drivers_per_cond,
n_per_fate=5,
cols=["gene", "logfoldchange", "pval_adj", "pct_fate", "pct_progenitor"],
)
── DEG drivers: Alpha vs progenitor ──
Significant: 170 (up: 80, down: 90)
gene logfoldchange pval_adj pct_fate pct_progenitor
Iapp 165.372681 0.001959 1.000000 NaN
Ttr 143.253738 0.001959 1.000000 NaN
Pyy 99.835434 0.001959 1.000000 NaN
Chgb 69.993912 0.001959 1.000000 NaN
Gnas 59.068867 0.001959 1.000000 NaN
Pcsk1n 47.226532 0.001959 1.000000 NaN
Malat1 42.059872 0.007366 1.000000 NaN
Tmem27 35.617493 0.001959 1.000000 NaN
Sphkap 34.646255 0.009978 0.833333 NaN
Rab37 31.131083 0.009978 0.833333 NaN
Cpe 26.859491 0.001959 1.000000 NaN
Chga 24.825945 0.001959 1.000000 NaN
Rbp4 23.749779 0.001959 1.000000 NaN
Bex2 17.820747 0.001959 1.000000 NaN
Scg3 16.006983 0.009978 0.833333 NaN
Slc25a5 15.879355 0.001959 1.000000 NaN
Pcsk2 15.673647 0.009978 0.833333 NaN
Fam183b 15.664439 0.001959 1.000000 NaN
Aplp1 14.979936 0.001959 1.000000 NaN
Slc38a5 14.898108 0.009978 0.833333 NaN
── DEG drivers: Beta vs progenitor ──
Significant: 1014 (up: 590, down: 424)
gene logfoldchange pval_adj pct_fate pct_progenitor
Iapp 319.308167 2.691527e-58 1.000000 NaN
Ins1 231.821686 5.935833e-49 0.919643 NaN
Pyy 176.222336 8.209008e-49 0.946429 NaN
Ins2 114.226288 5.625770e-55 0.964286 NaN
Nnat 80.990791 9.460143e-56 0.973214 NaN
Gnas 60.395771 2.056687e-58 1.000000 NaN
Rbp4 47.380043 3.605727e-57 0.991071 NaN
Malat1 39.235798 2.014396e-35 1.000000 NaN
Chgb 33.063000 2.056687e-58 1.000000 NaN
Gng4 30.302731 9.661754e-17 0.517857 NaN
Slc30a8 30.090532 3.339000e-13 0.455357 NaN
Lrp8 29.957945 3.619816e-14 0.473214 NaN
Arhgap36 29.909950 3.719994e-08 0.348214 NaN
Gnao1 29.817169 3.620658e-15 0.491071 NaN
Sphkap 29.655596 9.837795e-13 0.446429 NaN
Snap25 29.162764 3.719994e-08 0.348214 NaN
Cntfr 28.942442 4.068914e-06 0.294643 NaN
Ttr 28.782820 2.847681e-24 1.000000 NaN
Nfasc 28.639511 5.877230e-05 0.258929 NaN
Rab37 28.634060 4.068914e-06 0.294643 NaN
── DEG drivers: Epsilon vs progenitor ──
Significant: 687 (up: 373, down: 314)
gene logfoldchange pval_adj pct_fate pct_progenitor
Ghrl 517.756226 1.204601e-21 1.000000 NaN
Pyy 91.554626 2.922905e-07 0.702703 NaN
Cdkn1a 73.212456 1.204601e-21 1.000000 NaN
Cck 39.323284 5.578819e-21 0.972973 NaN
Isl1 39.186619 1.204601e-21 1.000000 NaN
Rbp4 38.788918 5.909970e-20 0.972973 NaN
Lrpprc 35.442978 2.316388e-14 0.810811 NaN
Gng4 32.237843 2.168506e-12 0.729730 NaN
Dll3 30.021725 8.853757e-03 0.297297 NaN
Gnao1 29.968044 1.761210e-05 0.459459 NaN
Maged2 29.401833 5.480681e-18 0.972973 NaN
Lrrtm3 29.124493 3.790129e-03 0.324324 NaN
Sv2c 29.075603 8.853757e-03 0.297297 NaN
Pex5l 28.918749 1.968029e-02 0.270270 NaN
Ap1s2 28.487804 1.968029e-02 0.270270 NaN
Neurod1 28.314774 4.144581e-02 0.243243 NaN
Malat1 27.702450 5.050441e-14 1.000000 NaN
Fam183b 19.508162 1.204601e-21 1.000000 NaN
Ubb 17.677732 1.630272e-16 1.000000 NaN
Neurog3 17.597889 2.133376e-16 0.864865 NaN
── DEG drivers: Alpha vs progenitor ──
Significant: 1038 (up: 622, down: 416)
gene logfoldchange pval_adj pct_fate pct_progenitor
Pyy 270.907867 1.095485e-61 0.972527 NaN
Gcg 215.466476 5.573736e-28 0.681319 NaN
Iapp 99.668839 7.016556e-44 0.846154 NaN
Ttr 80.658424 1.391774e-61 1.000000 NaN
Gnas 76.414871 5.342205e-66 1.000000 NaN
Rbp4 55.058666 1.653055e-57 0.967033 NaN
Malat1 50.032120 2.515452e-60 1.000000 NaN
Isl1 42.396778 3.263752e-57 0.917582 NaN
Pcsk2 39.577908 1.611496e-49 0.851648 NaN
Irx2 32.601612 1.794797e-28 0.640110 NaN
Chgb 32.077511 2.788463e-57 0.928571 NaN
Sphkap 31.570948 3.814446e-34 0.703297 NaN
Tmem163 30.995466 1.676530e-25 0.604396 NaN
Ncam1 30.466309 4.006713e-19 0.519231 NaN
Celf3 30.442444 1.090874e-21 0.554945 NaN
Vwa5b2 30.106846 1.664818e-14 0.447802 NaN
Cldn11 30.073782 1.500844e-10 0.376374 NaN
Slc7a14 29.913431 7.425416e-14 0.436813 NaN
Pcsk2os1 29.691513 2.246793e-13 0.428571 NaN
Pcsk1 29.630861 2.426720e-09 0.351648 NaN
── DEG drivers: Beta vs progenitor ──
Significant: 1086 (up: 683, down: 403)
gene logfoldchange pval_adj pct_fate pct_progenitor
Pyy 184.695587 9.281464e-56 0.951952 NaN
Iapp 97.912140 5.577822e-51 0.906907 NaN
Gnas 71.186623 1.157115e-64 1.000000 NaN
Rbp4 64.360428 5.196736e-64 0.996997 NaN
Malat1 54.942646 5.491107e-61 1.000000 NaN
Chgb 50.319710 1.168838e-63 0.987988 NaN
Isl1 41.455986 9.597657e-60 0.951952 NaN
Pcsk2 40.564831 6.367650e-63 0.978979 NaN
Ttr 36.196297 3.638217e-49 0.993994 NaN
Chga 34.888813 1.349103e-64 0.996997 NaN
Tmem163 31.561834 3.178231e-33 0.702703 NaN
Pcsk1 31.447981 8.408603e-31 0.675676 NaN
Gip 30.551739 3.254021e-03 0.183183 NaN
Gdap1l1 30.395351 4.760353e-22 0.567568 NaN
Celf3 30.349344 3.622626e-23 0.582583 NaN
Vwa5b2 30.107122 2.787453e-19 0.528529 NaN
Cldn11 29.974279 6.003679e-12 0.408408 NaN
Plcxd3 29.862917 5.027443e-15 0.462462 NaN
Rab3b 29.845289 1.338192e-12 0.420420 NaN
Ncam1 29.696566 8.602412e-12 0.405405 NaN
── DEG drivers: Delta vs progenitor ──
Significant: 723 (up: 387, down: 336)
gene logfoldchange pval_adj pct_fate pct_progenitor
Pyy 560.111816 1.648064e-23 1.00 NaN
Sst 337.905396 1.058007e-18 0.88 NaN
Rbp4 216.754547 1.648064e-23 1.00 NaN
Iapp 119.899414 1.788893e-23 1.00 NaN
Malat1 65.846184 3.063520e-23 1.00 NaN
Isl1 47.423279 1.648064e-23 1.00 NaN
Gnas 41.713760 1.788893e-23 1.00 NaN
Pcsk2 41.403732 3.230823e-22 0.96 NaN
Frzb 30.745613 6.427865e-10 0.62 NaN
Ppp1r14c 30.685139 8.884320e-07 0.50 NaN
Celf3 30.497181 2.939825e-07 0.52 NaN
Rab3b 30.486515 9.601781e-08 0.54 NaN
Kctd8 30.408361 2.597009e-06 0.48 NaN
Ppy 30.359205 5.835742e-08 0.56 NaN
Sez6l2 30.272020 8.884320e-07 0.50 NaN
Fam92b 30.234203 3.057519e-08 0.56 NaN
Gdap1l1 30.204899 9.601781e-08 0.54 NaN
Pcsk1 30.201130 2.939825e-07 0.52 NaN
Ncam1 30.071222 7.208312e-06 0.46 NaN
St18 29.514408 2.811024e-04 0.38 NaN
── DEG drivers: Epsilon vs progenitor ──
Significant: 848 (up: 493, down: 355)
gene logfoldchange pval_adj pct_fate pct_progenitor
Ghrl 498.352386 2.375788e-28 1.000000 NaN
Pyy 128.112381 1.626203e-21 0.923077 NaN
Rbp4 120.034706 2.375788e-28 1.000000 NaN
Ttr 51.104588 6.265073e-21 1.000000 NaN
Isl1 50.955517 8.561742e-28 0.984615 NaN
Gnas 50.034081 5.945616e-28 1.000000 NaN
Malat1 42.224209 5.564506e-25 1.000000 NaN
Gcg 38.234589 2.171203e-07 0.553846 NaN
Iapp 36.981209 2.233751e-23 0.923077 NaN
Pcsk2 32.857044 8.084460e-13 0.646154 NaN
Irx2 32.751572 5.533260e-14 0.676923 NaN
Nap1l5 31.045471 3.560414e-10 0.569231 NaN
Sphkap 30.900093 3.560414e-10 0.569231 NaN
Gm43194 30.121216 5.042841e-07 0.461538 NaN
Ncam1 30.119257 3.560414e-10 0.569231 NaN
Pcsk2os1 30.098072 7.509680e-08 0.492308 NaN
Celf3 29.958424 3.560414e-10 0.569231 NaN
Pou6f2 29.860731 7.749427e-05 0.369231 NaN
Tmem163 29.805254 1.251068e-06 0.446154 NaN
Gdap1l1 29.723566 7.122236e-06 0.415385 NaN
── DEG drivers: Alpha vs progenitor ──
Significant: 934 (up: 497, down: 437)
gene logfoldchange pval_adj pct_fate pct_progenitor
Pyy 219.155823 2.833656e-45 0.954955 NaN
Gcg 203.555252 7.818328e-14 0.576577 NaN
Iapp 104.576691 4.358536e-37 0.873874 NaN
Ttr 77.493851 8.624462e-45 1.000000 NaN
Gnas 75.978882 1.650709e-51 1.000000 NaN
Chgb 46.177563 7.129069e-43 0.909910 NaN
Malat1 43.927719 4.928366e-39 1.000000 NaN
Rbp4 42.754589 2.532834e-41 0.945946 NaN
BC048546 32.823662 8.888518e-33 0.783784 NaN
Slc38a5 31.937300 2.120742e-43 0.909910 NaN
Etv1 31.794817 8.486850e-23 0.648649 NaN
Sphkap 31.697752 3.348922e-27 0.711712 NaN
Gnao1 31.172338 9.190003e-19 0.585586 NaN
Tmem163 31.162647 3.621997e-17 0.558559 NaN
Slc30a8 30.911142 1.587695e-09 0.405405 NaN
Rai2 30.712553 7.951286e-13 0.477477 NaN
Cadps 30.268208 3.608526e-15 0.522523 NaN
Gm43861 29.907495 1.958137e-08 0.378378 NaN
Slc7a14 29.898027 3.749925e-09 0.396396 NaN
Gdap1l1 29.892195 2.704527e-10 0.423423 NaN
── DEG drivers: Beta vs progenitor ──
Significant: 1088 (up: 657, down: 431)
gene logfoldchange pval_adj pct_fate pct_progenitor
Iapp 291.223389 2.768662e-61 0.986301 NaN
Pyy 196.978867 2.015121e-62 1.000000 NaN
Ins1 185.555130 2.981718e-27 0.705479 NaN
Ins2 77.237167 2.139489e-40 0.794521 NaN
Nnat 70.255356 3.086069e-50 0.904110 NaN
Gnas 64.764244 6.202128e-63 1.000000 NaN
Rbp4 56.959015 6.202128e-63 1.000000 NaN
Malat1 37.846973 4.326653e-44 1.000000 NaN
Chgb 32.391380 1.631449e-61 0.986301 NaN
Ttr 31.606613 9.026741e-38 0.993151 NaN
Tmem163 31.063684 7.440471e-29 0.664384 NaN
G6pc2 30.708227 6.214345e-22 0.575342 NaN
BC048546 30.439980 5.871768e-21 0.561644 NaN
Slc30a8 30.429060 5.176797e-20 0.547945 NaN
Arhgap36 30.284391 4.239945e-09 0.356164 NaN
Frzb 30.184422 5.057499e-16 0.486301 NaN
Gdap1l1 30.173061 1.983171e-22 0.582192 NaN
Gnao1 30.065212 9.701277e-18 0.513699 NaN
Slc7a14 29.919584 1.935221e-16 0.493151 NaN
Sphkap 29.781712 7.166407e-17 0.500000 NaN
── DEG drivers: Delta vs progenitor ──
Significant: 479 (up: 210, down: 269)
gene logfoldchange pval_adj pct_fate pct_progenitor
Pyy 464.324585 1.610999e-10 1.000000 NaN
Sst 338.118744 1.073547e-07 0.833333 NaN
Rbp4 210.968674 1.610999e-10 1.000000 NaN
Iapp 72.105080 1.949895e-09 0.944444 NaN
Malat1 58.503399 1.071009e-09 1.000000 NaN
Gnas 40.954994 1.610999e-10 1.000000 NaN
Isl1 34.577591 1.610999e-10 1.000000 NaN
Ppp1r14c 32.689064 6.655484e-08 0.833333 NaN
Frzb 31.795914 4.198904e-06 0.722222 NaN
Rai2 31.174133 1.386014e-04 0.611111 NaN
Gnao1 31.094294 1.386014e-04 0.611111 NaN
St18 30.554657 1.386014e-04 0.611111 NaN
BC048546 30.449245 2.682706e-02 0.388889 NaN
Gdap1l1 30.255129 8.792385e-03 0.444444 NaN
Kcnmb2 30.096973 8.792385e-03 0.444444 NaN
Scn3a 30.061802 6.245587e-04 0.555556 NaN
Etv1 29.126734 2.682706e-02 0.388889 NaN
Hhex 21.994329 9.207233e-10 1.000000 NaN
Fam183b 19.523029 1.610999e-10 1.000000 NaN
Ubb 19.173141 2.719530e-07 1.000000 NaN
── DEG drivers: Epsilon vs progenitor ──
Significant: 783 (up: 422, down: 361)
gene logfoldchange pval_adj pct_fate pct_progenitor
Ghrl 485.379456 2.998483e-22 1.000 NaN
Pyy 163.205170 3.450739e-19 0.950 NaN
Rbp4 99.282028 2.998483e-22 1.000 NaN
Lrpprc 56.673809 3.247204e-18 0.900 NaN
Isl1 47.636112 2.998483e-22 1.000 NaN
Malat1 46.982475 8.548388e-19 1.000 NaN
Mboat4 33.095497 1.517948e-12 0.725 NaN
Gnao1 32.037502 9.017539e-12 0.700 NaN
Etv1 30.398169 6.235255e-06 0.475 NaN
Nap1l5 30.321486 4.682076e-07 0.525 NaN
St18 30.176975 4.682076e-07 0.525 NaN
Ppp1r14c 30.062613 2.013902e-05 0.450 NaN
Tmem163 29.851349 4.848064e-04 0.375 NaN
Gm43861 29.556721 2.013902e-05 0.450 NaN
Cadps 29.550922 2.013902e-05 0.450 NaN
BC048546 29.533049 2.946907e-03 0.325 NaN
Pou6f2 29.491068 1.392431e-02 0.275 NaN
Serping1 29.471628 2.013902e-05 0.450 NaN
Rai2 29.452677 1.392431e-02 0.275 NaN
Gria2 29.375956 4.848064e-04 0.375 NaN
Top DEG drivers (top 5 per fate, per condition):
[15]:
| condition | fate | gene | logfoldchange | pval_adj | pct_fate | pct_progenitor | |
|---|---|---|---|---|---|---|---|
| 0 | high_velocity | Alpha | Iapp | 165.372681 | 1.959313e-03 | 1.00 | NaN |
| 1 | high_velocity | Alpha | Ttr | 143.253738 | 1.959313e-03 | 1.00 | NaN |
| 2 | high_velocity | Alpha | Pyy | 99.835434 | 1.959313e-03 | 1.00 | NaN |
| 3 | high_velocity | Alpha | Chgb | 69.993912 | 1.959313e-03 | 1.00 | NaN |
| 4 | high_velocity | Alpha | Gnas | 59.068867 | 1.959313e-03 | 1.00 | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... |
| 50 | med_velocity | Epsilon | Ghrl | 485.379456 | 2.998483e-22 | 1.00 | NaN |
| 51 | med_velocity | Epsilon | Pyy | 163.205170 | 3.450739e-19 | 0.95 | NaN |
| 52 | med_velocity | Epsilon | Rbp4 | 99.282028 | 2.998483e-22 | 1.00 | NaN |
| 53 | med_velocity | Epsilon | Lrpprc | 56.673809 | 3.247204e-18 | 0.90 | NaN |
| 54 | med_velocity | Epsilon | Isl1 | 47.636112 | 2.998483e-22 | 1.00 | NaN |
55 rows × 7 columns
[16]:
# Driver overlap across all 3 conditions:
# rows = (fate, gene); columns = condition presence + n_conds + shared_all flag.
overlap = _driver_overlap(deg_drivers_per_cond, n_top=10, gene_col="gene")
# Cross-tab: how many genes are shared by exactly k conditions, per fate?
overlap.groupby(["fate", "n_conds"]).size().unstack(fill_value=0)
[16]:
| n_conds | 1 | 2 | 3 |
|---|---|---|---|
| fate | |||
| Alpha | 9 | 3 | 5 |
| Beta | 4 | 4 | 6 |
| Epsilon | 12 | 3 | 4 |
[17]:
# Show the genes that are condition-specific (n_conds == 1) for each fate.
specific = overlap[overlap["n_conds"] == 1]
specific.head(30)
[17]:
| fate | gene | high_velocity | low_velocity | med_velocity | n_conds | shared_all | |
|---|---|---|---|---|---|---|---|
| 0 | Alpha | BC048546 | False | False | True | 1 | False |
| 3 | Alpha | Gnao1 | True | False | False | 1 | False |
| 6 | Alpha | Irx2 | False | True | False | 1 | False |
| 7 | Alpha | Isl1 | False | True | False | 1 | False |
| 9 | Alpha | Pcsk1n | True | False | False | 1 | False |
| 10 | Alpha | Pcsk2 | False | True | False | 1 | False |
| 13 | Alpha | Slc38a5 | False | False | True | 1 | False |
| 14 | Alpha | Sphkap | True | False | False | 1 | False |
| 15 | Alpha | Tmem27 | True | False | False | 1 | False |
| 17 | Beta | Chga | False | True | False | 1 | False |
| 20 | Beta | Gng4 | True | False | False | 1 | False |
| 24 | Beta | Isl1 | False | True | False | 1 | False |
| 27 | Beta | Pcsk2 | False | True | False | 1 | False |
| 31 | Epsilon | Cck | True | False | False | 1 | False |
| 32 | Epsilon | Cdkn1a | True | False | False | 1 | False |
| 33 | Epsilon | Dll3 | True | False | False | 1 | False |
| 34 | Epsilon | Etv1 | False | False | True | 1 | False |
| 35 | Epsilon | Gcg | False | True | False | 1 | False |
| 38 | Epsilon | Gnas | False | True | False | 1 | False |
| 39 | Epsilon | Gng4 | True | False | False | 1 | False |
| 40 | Epsilon | Iapp | False | True | False | 1 | False |
| 44 | Epsilon | Mboat4 | False | False | True | 1 | False |
| 45 | Epsilon | Nap1l5 | False | False | True | 1 | False |
| 46 | Epsilon | Pcsk2 | False | True | False | 1 | False |
| 49 | Epsilon | Ttr | False | True | False | 1 | False |
11. Pathway enrichment per condition¶
We run run_enrichment_per_fate on the per-condition DEG drivers (offline-safe: wrapped in try/except). The compact _stack_enrichment_by_condition helper builds one tidy table with columns (condition, fate, direction, Term, Adjusted P-value, Overlap, ...).
The cell will be empty in published HTML if
gseapycannot reach Enrichr (no internet during doc build). Run interactively for live results.
[18]:
enrichment_per_cond = {}
try:
for cond in mscorer.conditions:
enrichment_per_cond[cond] = run_enrichment_per_fate(
deg_drivers_per_cond[cond],
fate_names=fate_names,
organism="mouse",
pval_threshold=0.05,
logfc_threshold=0.25,
plot=False,
n_top_pathways=10,
)
display(_stack_enrichment_by_condition(enrichment_per_cond, n_per_group=3))
except Exception as e:
print(f"Enrichment skipped (offline?): {e}")
============================================================
Pathway enrichment: Alpha
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 80
Down-regulated genes: 90
============================================================
[up] Significant terms: 1
Gene_set Term Overlap Adjusted P-value
KEGG_2019_Mouse Thyroid hormone synthesis 4/73 0.026393
[down] Significant terms: 107
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 25/90 4.833486e-36
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 25/93 5.612907e-36
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 25/94 5.612907e-36
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 25/103 5.632949e-35
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 25/113 6.008108e-34
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 23/90 6.362739e-33
Reactome_2022 Selenocysteine Synthesis R-HSA-2408557 23/90 6.362739e-33
Reactome_2022 Viral mRNA Translation R-HSA-192823 23/90 6.362739e-33
Reactome_2022 Peptide Chain Elongation R-HSA-156902 23/86 6.362739e-33
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 23/90 6.362739e-33
============================================================
Pathway enrichment: Beta
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 590
Down-regulated genes: 424
============================================================
[up] Significant terms: 208
Gene_set Term Overlap Adjusted P-value
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 27/163 7.997215e-11
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 20/104 6.403333e-08
KEGG_2019_Mouse Maturity onset diabetes of the young 10/27 3.115636e-07
KEGG_2019_Mouse Insulin secretion 16/86 3.212812e-07
GO_Biological_Process_2021 IRE1-mediated unfolded protein response (GO:0036498) 14/53 3.765361e-07
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 16/77 7.171901e-07
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 18/105 8.433568e-07
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 16/89 2.224553e-06
Reactome_2022 IRE1alpha Activates Chaperones R-HSA-381070 12/48 2.650485e-06
GO_Biological_Process_2021 regulation of peptide hormone secretion (GO:0090276) 15/74 3.172567e-06
[down] Significant terms: 397
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 2.277097e-25
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 6.161288e-25
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 30/93 1.266777e-24
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 48/314 1.805540e-24
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 2.379529e-23
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 5.980082e-23
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 1.267632e-22
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 30/113 4.173200e-22
Reactome_2022 Viral mRNA Translation R-HSA-192823 27/90 9.255427e-22
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 27/90 9.255427e-22
============================================================
Pathway enrichment: Epsilon
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 373
Down-regulated genes: 314
============================================================
[up] Significant terms: 86
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 10/38 0.000003
KEGG_2019_Mouse Maturity onset diabetes of the young 8/27 0.000005
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 15/163 0.000050
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 13/104 0.000085
GO_Biological_Process_2021 cellular response to insulin stimulus (GO:0032869) 14/129 0.000108
KEGG_2019_Mouse Lysosome 12/124 0.000285
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 11/89 0.000615
Reactome_2022 Regulation Of Gene Expression In Beta Cells R-HSA-210745 6/20 0.000615
GO_Biological_Process_2021 positive regulation of peptide hormone secretion (GO:0090277) 8/43 0.000668
KEGG_2019_Mouse Synaptic vesicle cycle 9/77 0.000772
[down] Significant terms: 336
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 1.597058e-29
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 5.896162e-29
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 30/93 1.232166e-28
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 3.054501e-27
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 1.170006e-26
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 2.534405e-26
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 44/314 2.536834e-26
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 30/113 4.524592e-26
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 27/90 3.086957e-25
Reactome_2022 Selenocysteine Synthesis R-HSA-2408557 27/90 3.086957e-25
============================================================
Pathway enrichment: Alpha
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 622
Down-regulated genes: 416
============================================================
[up] Significant terms: 156
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 22/104 2.445585e-09
KEGG_2019_Mouse Lysosome 21/124 6.084043e-08
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 17/77 1.756719e-07
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 19/105 2.811906e-07
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 12/38 1.367715e-06
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 16/89 4.795716e-06
KEGG_2019_Mouse Dopaminergic synapse 19/135 5.062926e-06
GO_Biological_Process_2021 regulation of peptide hormone secretion (GO:0090276) 15/74 6.661253e-06
Reactome_2022 G-protein Mediated Events R-HSA-112040 12/52 1.289888e-05
Reactome_2022 Opioid Signaling R-HSA-111885 15/88 1.713559e-05
[down] Significant terms: 444
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 52/314 2.873895e-28
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 4.126134e-26
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 4.126134e-26
Reactome_2022 Cell Cycle R-HSA-1640170 68/654 1.190819e-25
Reactome_2022 Cell Cycle, Mitotic R-HSA-69278 61/523 1.190819e-25
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 1.707288e-25
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 1.181197e-23
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 1.233512e-23
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 1.233512e-23
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 2.507804e-23
============================================================
Pathway enrichment: Beta
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 683
Down-regulated genes: 403
============================================================
[up] Significant terms: 129
Gene_set Term Overlap Adjusted P-value
KEGG_2019_Mouse Maturity onset diabetes of the young 13/27 2.565614e-10
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 22/104 1.618268e-08
GO_Biological_Process_2021 regulation of peptide hormone secretion (GO:0090276) 16/74 4.589452e-06
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 22/163 5.130451e-06
GO_Biological_Process_2021 neuron projection morphogenesis (GO:0048812) 21/140 1.223028e-05
KEGG_2019_Mouse Lysosome 18/124 1.923302e-05
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 11/38 2.647650e-05
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 15/77 4.590873e-05
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 17/105 5.146225e-05
GO_Biological_Process_2021 neuron projection development (GO:0031175) 22/171 5.680492e-05
[down] Significant terms: 422
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 50/314 6.593606e-27
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 1.544213e-26
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 8.594398e-26
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 30/94 2.875876e-25
Reactome_2022 Cell Cycle, Mitotic R-HSA-69278 60/523 2.890128e-25
Reactome_2022 Cell Cycle R-HSA-1640170 65/654 2.708074e-24
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 4.564548e-24
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 4.564548e-24
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 4.816521e-24
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 1.230265e-23
============================================================
Pathway enrichment: Delta
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 387
Down-regulated genes: 336
============================================================
[up] Significant terms: 125
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 positive regulation of peptide hormone secretion (GO:0090277) 9/43 0.000122
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 13/104 0.000122
KEGG_2019_Mouse Lysosome 13/124 0.000200
KEGG_2019_Mouse Dopaminergic synapse 13/135 0.000210
KEGG_2019_Mouse Circadian entrainment 11/99 0.000210
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 14/163 0.000210
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 8/38 0.000400
KEGG_2019_Mouse Maturity onset diabetes of the young 6/27 0.000492
KEGG_2019_Mouse cAMP signaling pathway 15/211 0.000636
KEGG_2019_Mouse Long-term potentiation 8/67 0.001459
[down] Significant terms: 448
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 50/314 8.751611e-31
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 4.906936e-29
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 4.906936e-29
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 2.530390e-28
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 1.723374e-26
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 1.723374e-26
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 8.381928e-26
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 1.205212e-25
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 1.205212e-25
Reactome_2022 Nonsense Mediated Decay (NMD) Independent Of Exon Junction Complex (EJC) R-HSA-975956 28/92 1.821364e-25
============================================================
Pathway enrichment: Epsilon
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 493
Down-regulated genes: 355
============================================================
[up] Significant terms: 87
Gene_set Term Overlap Adjusted P-value
KEGG_2019_Mouse Lysosome 19/124 4.820439e-08
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 16/89 4.651280e-07
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 13/77 2.184121e-05
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 14/105 9.460261e-05
Reactome_2022 Incretin Synthesis, Secretion, And Inactivation R-HSA-400508 7/24 3.011596e-04
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 16/163 3.382496e-04
Reactome_2022 G-protein Mediated Events R-HSA-112040 9/52 8.465563e-04
Reactome_2022 Hemostasis R-HSA-109582 33/576 1.113725e-03
Reactome_2022 Synthesis, Secretion, And Inactivation Of Glucagon-like Peptide-1 (GLP-1) R-HSA-381771 6/21 1.151083e-03
Reactome_2022 Synthesis, Secretion, And Inactivation Of Glucose-dependent Insulinotropic Polypeptide (GIP) R-HSA-400511 5/13 1.151083e-03
[down] Significant terms: 469
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 50/314 1.342079e-29
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 2.855442e-28
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 1.815036e-27
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 30/94 6.131343e-27
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 9.159060e-26
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 9.159060e-26
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 4.034992e-25
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 5.780159e-25
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 5.780159e-25
Reactome_2022 Nonsense Mediated Decay (NMD) Independent Of Exon Junction Complex (EJC) R-HSA-975956 28/92 8.718902e-25
============================================================
Pathway enrichment: Alpha
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 497
Down-regulated genes: 437
============================================================
[up] Significant terms: 141
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 19/104 2.499845e-08
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 18/105 5.126029e-08
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 16/77 5.126029e-08
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 15/89 1.587271e-06
GO_Biological_Process_2021 regulation of peptide hormone secretion (GO:0090276) 14/74 4.221168e-06
KEGG_2019_Mouse Dopaminergic synapse 17/135 1.054884e-05
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 10/38 1.757779e-05
KEGG_2019_Mouse Lysosome 15/124 5.576827e-05
KEGG_2019_Mouse Synaptic vesicle cycle 11/77 2.462138e-04
GO_Biological_Process_2021 regulation of protein secretion (GO:0050708) 15/125 3.236405e-04
[down] Significant terms: 476
Gene_set Term Overlap Adjusted P-value
Reactome_2022 Cell Cycle, Mitotic R-HSA-69278 65/523 1.514502e-27
Reactome_2022 Cell Cycle R-HSA-1640170 70/654 4.031318e-26
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 1.940433e-25
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 50/314 1.940433e-25
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 1.940433e-25
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 7.639023e-25
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 4.680497e-23
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 5.687463e-23
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 5.687463e-23
Reactome_2022 Viral mRNA Translation R-HSA-192823 28/90 9.896098e-23
============================================================
Pathway enrichment: Beta
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 657
Down-regulated genes: 431
============================================================
[up] Significant terms: 137
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 24/104 9.438360e-11
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 27/163 1.008634e-09
KEGG_2019_Mouse Maturity onset diabetes of the young 12/27 2.024887e-09
GO_Biological_Process_2021 regulation of peptide hormone secretion (GO:0090276) 18/74 2.995445e-08
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 18/77 4.483648e-08
Reactome_2022 Integration Of Energy Metabolism R-HSA-163685 20/105 9.876732e-08
KEGG_2019_Mouse Lysosome 20/124 3.369271e-07
GO_Biological_Process_2021 IRE1-mediated unfolded protein response (GO:0036498) 14/53 1.061323e-06
KEGG_2019_Mouse Insulin secretion 16/86 1.119385e-06
GO_Biological_Process_2021 regulation of protein secretion (GO:0050708) 20/125 3.321822e-06
[down] Significant terms: 476
Gene_set Term Overlap Adjusted P-value
Reactome_2022 Cell Cycle, Mitotic R-HSA-69278 64/523 4.941445e-27
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 51/314 1.748442e-26
Reactome_2022 Cell Cycle R-HSA-1640170 69/654 1.072989e-25
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 1.271360e-25
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 1.271360e-25
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 5.075307e-25
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 3.238070e-23
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 3.747490e-23
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 3.747490e-23
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 8.225337e-23
============================================================
Pathway enrichment: Delta
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 210
Down-regulated genes: 269
============================================================
[up] Significant terms: 72
Gene_set Term Overlap Adjusted P-value
KEGG_2019_Mouse Maturity onset diabetes of the young 5/27 0.001473
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 8/89 0.002027
Reactome_2022 GPER1 Signaling R-HSA-9634597 6/43 0.002027
GO_Biological_Process_2021 positive regulation of insulin secretion (GO:0032024) 6/38 0.002066
GO_Biological_Process_2021 regulation of insulin secretion (GO:0050796) 9/104 0.002066
Reactome_2022 Regulation Of Insulin Secretion R-HSA-422356 7/77 0.003584
Reactome_2022 Glucagon Signaling In Metabolic Regulation R-HSA-163359 5/32 0.003584
KEGG_2019_Mouse GABAergic synapse 7/90 0.004117
KEGG_2019_Mouse Circadian entrainment 7/99 0.005051
Reactome_2022 Anti-inflammatory Response Favoring Leishmania Infection R-HSA-9662851 9/165 0.005561
[down] Significant terms: 389
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 7.807101e-32
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 5.017236e-31
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 30/94 1.532275e-30
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 1.975454e-29
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 2.140043e-29
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 1.334897e-28
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 1.944818e-28
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 1.944818e-28
Reactome_2022 Nonsense Mediated Decay (NMD) Independent Of Exon Junction Complex (EJC) R-HSA-975956 28/92 2.958477e-28
Reactome_2022 Selenocysteine Synthesis R-HSA-2408557 27/90 3.518813e-27
============================================================
Pathway enrichment: Epsilon
Gene sets: ['KEGG_2019_Mouse', 'GO_Biological_Process_2021', 'Reactome_2022']
Up-regulated genes : 422
Down-regulated genes: 361
============================================================
[up] Significant terms: 94
Gene_set Term Overlap Adjusted P-value
Reactome_2022 Peptide Hormone Metabolism R-HSA-2980736 14/89 0.000005
KEGG_2019_Mouse Lysosome 14/124 0.000044
KEGG_2019_Mouse Protein processing in endoplasmic reticulum 16/163 0.000044
KEGG_2019_Mouse Dopaminergic synapse 13/135 0.000450
KEGG_2019_Mouse GABAergic synapse 10/90 0.001159
KEGG_2019_Mouse Phagosome 14/180 0.001186
KEGG_2019_Mouse Long-term depression 8/61 0.001186
KEGG_2019_Mouse Synaptic vesicle cycle 9/77 0.001186
KEGG_2019_Mouse Circadian entrainment 10/99 0.001186
KEGG_2019_Mouse cAMP signaling pathway 15/211 0.001186
[down] Significant terms: 433
Gene_set Term Overlap Adjusted P-value
GO_Biological_Process_2021 cotranslational protein targeting to membrane (GO:0006613) 31/94 6.997589e-28
GO_Biological_Process_2021 cytoplasmic translation (GO:0002181) 31/93 6.997589e-28
GO_Biological_Process_2021 SRP-dependent cotranslational protein targeting to membrane (GO:0006614) 30/90 2.976495e-27
GO_Biological_Process_2021 cellular macromolecule biosynthetic process (GO:0034645) 47/314 1.126661e-26
GO_Biological_Process_2021 protein targeting to ER (GO:0045047) 30/103 1.496237e-25
GO_Biological_Process_2021 nuclear-transcribed mRNA catabolic process, nonsense-mediated decay (GO:0000184) 31/113 1.496237e-25
Reactome_2022 Peptide Chain Elongation R-HSA-156902 28/86 6.336531e-25
Reactome_2022 Eukaryotic Translation Termination R-HSA-72764 28/90 6.799818e-25
Reactome_2022 Eukaryotic Translation Elongation R-HSA-156842 28/90 6.799818e-25
Reactome_2022 Cell Cycle, Mitotic R-HSA-69278 56/523 6.799818e-25
| condition | fate | direction | Gene_set | Term | Overlap | P-value | Adjusted P-value | Old P-value | Old Adjusted P-value | Odds Ratio | Combined Score | Genes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | high_velocity | Alpha | up | KEGG_2019_Mouse | Thyroid hormone synthesis | 4/73 | 2.094671e-04 | 2.639285e-02 | 0 | 0 | 15.141876 | 128.265986 | TTR;GPX3;GNAS;PDIA4 |
| 1 | high_velocity | Alpha | down | GO_Biological_Process_2021 | SRP-dependent cotranslational protein targetin... | 25/90 | 5.142006e-39 | 4.833486e-36 | 0 | 0 | 117.426036 | 10352.675635 | RPL3;RPL32;RPLP1;RPL12;RPLP0;RPL10A;RPL7;RPS4X... |
| 2 | high_velocity | Alpha | down | GO_Biological_Process_2021 | cytoplasmic translation (GO:0002181) | 25/93 | 1.319036e-38 | 5.612907e-36 | 0 | 0 | 112.228507 | 9788.719925 | RPL3;RPL32;RPLP1;RPL12;RPLP0;RPL10A;RPL7;RPS4X... |
| 3 | high_velocity | Alpha | down | GO_Biological_Process_2021 | cotranslational protein targeting to membrane ... | 25/94 | 1.791353e-38 | 5.612907e-36 | 0 | 0 | 110.596433 | 9612.517927 | RPL3;RPL32;RPLP1;RPL12;RPLP0;RPL10A;RPL7;RPS4X... |
| 4 | high_velocity | Beta | up | KEGG_2019_Mouse | Protein processing in endoplasmic reticulum | 27/163 | 3.186142e-13 | 7.997215e-11 | 0 | 0 | 6.796547 | 195.569247 | ERO1LB;RPN2;TUSC3;HSPA4L;RPN1;SEL1L;RRBP1;RNF5... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 59 | med_velocity | Epsilon | up | KEGG_2019_Mouse | Lysosome | 14/124 | 3.691181e-07 | 4.410919e-05 | 0 | 0 | 6.072906 | 89.952783 | CD164;CD63;ATP6V0B;ATP6AP1;CTSZ;HEXA;CLTB;CTSO... |
| 60 | med_velocity | Epsilon | up | KEGG_2019_Mouse | Protein processing in endoplasmic reticulum | 16/163 | 3.802516e-07 | 4.410919e-05 | 0 | 0 | 5.209209 | 77.004778 | HSPA8;RPN2;HSPA5;TUSC3;SSR2;HSPA4L;RPN1;EDEM2;... |
| 61 | med_velocity | Epsilon | down | GO_Biological_Process_2021 | cotranslational protein targeting to membrane ... | 31/94 | 5.836188e-31 | 6.997589e-28 | 0 | 0 | 29.189803 | 2032.079063 | RPL3;ARL6IP1;RPL32;RPL10;RPLP1;RPL12;RPLP0;RPL... |
| 62 | med_velocity | Epsilon | down | GO_Biological_Process_2021 | cytoplasmic translation (GO:0002181) | 31/93 | 3.975154e-31 | 6.997589e-28 | 0 | 0 | 29.662121 | 2076.350692 | RPL3;RPL32;RPL10;RPLP1;RPL12;RPLP0;RPL11;RPL10... |
| 63 | med_velocity | Epsilon | down | GO_Biological_Process_2021 | SRP-dependent cotranslational protein targetin... | 30/90 | 3.723722e-30 | 2.976495e-27 | 0 | 0 | 29.575529 | 2004.121493 | RPL3;RPL32;RPL10;RPLP1;RPL12;RPLP0;RPL11;RPL10... |
64 rows × 13 columns
12. Expression trends along fate arms — per condition¶
plot_expression_trends shows how marker genes evolve along each fate arm. Running it once per condition on the masked adata_sub puts the per-condition curves side by side, so you can spot timing shifts, magnitude changes, or qualitatively different trajectories.
We use x_axis="affinity" here — distance along each fate arm in the shared embedding. "pseudotime" and "radial_distance" are also supported.
[19]:
from dataclasses import replace
genes = ["Ins1", "Gcg"] # Beta-cell + Alpha-cell markers
genes = [g for g in genes if g in adata_sub_shared.var_names]
# Use cell_obs_names from each per-condition result to mask the shared
# CommitmentScoreResult to that condition (plot_expression_trends expects
# a result whose cell_obs_names index into the passed AnnData).
cell_names_full = np.array(adata_sub_shared.obs_names)
for cond in mscorer.conditions:
mask = (adata_sub_shared.obs[mscorer.condition_obs_key].astype(str) == cond).values
res_full = results[cond]
if res_full.cell_scores is None:
print(f"\n--- {cond}: no cell-level scores; rerun score_all_conditions(cell_level=True). Skipping. ---")
continue
# Some results store full-shape arrays (one per shared-embedding cell)
# while others store only this-condition cells; handle both.
if res_full.cell_scores.shape[0] == adata_sub_shared.n_obs:
cs = res_full.cell_scores[mask]
cnames = cell_names_full[mask]
nne = res_full.nn_cell_entropy[mask] if res_full.nn_cell_entropy is not None else None
else:
cs = res_full.cell_scores
cnames = np.asarray(res_full.cell_obs_names)
nne = res_full.nn_cell_entropy
res_masked = replace(
res_full,
cell_scores=cs,
cell_obs_names=cnames,
nn_cell_entropy=nne,
)
print(f"\n--- {cond} (n={cs.shape[0]} cells) ---")
try:
fig = plot_expression_trends(
adata_sub_shared,
res_masked,
genes=genes,
x_axis="affinity",
figsize=(12, 4),
)
plt.suptitle(f"Expression trends — {cond}", y=1.02)
plt.show()
except Exception as e:
print(f"Expression trends failed for {cond}: {e}")
--- high_velocity (n=633 cells) ---
--- low_velocity (n=957 cells) ---
--- med_velocity (n=610 cells) ---
13. Transfer per-cell labels back to the full AnnData¶
transfer_labels writes per-cell, per-condition affinity scores and dominant fate labels back to the FULL adata as new obs columns (named cs_{fate}_{condition} and cs_dominant_fate_{condition}). This lets you use the scCS outputs in downstream Scanpy / scVelo workflows — UMAP coloring, marker discovery, etc.
[20]:
# MultiScorer.transfer_labels writes cs_{condition}_{...} columns to
# mscorer.adata internally — no positional adata argument needed.
mscorer.transfer_labels(results, prefix="cs_")
new_cols = [c for c in mscorer.adata.obs.columns
if c.startswith("cs_") and any(cond in c for cond in mscorer.conditions)]
print(f"New columns written to adata.obs ({len(new_cols)}):")
for c in new_cols[:15]:
print(f" - {c}")
if len(new_cols) > 15:
print(f" ... +{len(new_cols) - 15} more")
[scCS] Labels transferred to adata.obs for 2200 / 3696 cells. Columns: ['cs_high_velocity_Alpha', 'cs_high_velocity_Beta', 'cs_high_velocity_Delta', 'cs_high_velocity_Epsilon', 'cs_high_velocity_dominant_fate', 'cs_high_velocity_entropy']
[scCS] Labels transferred to adata.obs for 2200 / 3696 cells. Columns: ['cs_low_velocity_Alpha', 'cs_low_velocity_Beta', 'cs_low_velocity_Delta', 'cs_low_velocity_Epsilon', 'cs_low_velocity_dominant_fate', 'cs_low_velocity_entropy']
[scCS] Labels transferred to adata.obs for 2200 / 3696 cells. Columns: ['cs_med_velocity_Alpha', 'cs_med_velocity_Beta', 'cs_med_velocity_Delta', 'cs_med_velocity_Epsilon', 'cs_med_velocity_dominant_fate', 'cs_med_velocity_entropy']
New columns written to adata.obs (18):
- cs_high_velocity_Alpha
- cs_high_velocity_Beta
- cs_high_velocity_Delta
- cs_high_velocity_Epsilon
- cs_high_velocity_dominant_fate
- cs_high_velocity_entropy
- cs_low_velocity_Alpha
- cs_low_velocity_Beta
- cs_low_velocity_Delta
- cs_low_velocity_Epsilon
- cs_low_velocity_dominant_fate
- cs_low_velocity_entropy
- cs_med_velocity_Alpha
- cs_med_velocity_Beta
- cs_med_velocity_Delta
... +3 more
[21]:
# Quick UMAP showing dominant fate per condition (if UMAP is available).
# transfer_labels wrote columns to mscorer.adata, so plot from there.
full = mscorer.adata
if "X_umap" not in full.obsm:
sc.pp.neighbors(full, n_neighbors=15) if "distances" not in full.obsp else None
sc.tl.umap(full)
dom_cols = [c for c in full.obs.columns if c.startswith("cs_dominant_fate_")]
if dom_cols:
sc.pl.umap(full, color=dom_cols, ncols=len(mscorer.conditions),
wspace=0.4, show=True)
else:
print("No cs_dominant_fate_* columns found in mscorer.adata.obs — "
"make sure transfer_labels() ran successfully above.")
No cs_dominant_fate_* columns found in mscorer.adata.obs — make sure transfer_labels() ran successfully above.
14. Summary — scCS 3+ condition workflow¶
import scCS
# 1. Add condition column (3+ levels) to adata.obs
adata.obs["condition"] = ... # e.g., 'control', 'drug_A', 'drug_B'
adata.obs["sample"] = ... # biological replicates
# 2. Initialize MultiScorer
mscorer = scCS.MultiScorer(
adata,
root="Ductal",
branches=["Alpha", "Beta", "Delta", "Epsilon"],
condition_obs_key="condition",
obs_key="clusters",
)
# 3. Build SHARED embedding on pooled data, then fit
mscorer.build_embedding(ordering_metric="velocity_pseudotime")
mscorer.fit()
# (optional) mscorer.refit_pseudotime() — only call when the subset has
# a connected velocity_graph; otherwise stick with velocity_pseudotime.
# ── Tier 1 — score each condition ────────────────────────────────────────────
results = mscorer.score_all_conditions(cell_level=True, n_bootstrap=200)
# ── Tier 2 — omnibus + post-hoc ──────────────────────────────────────────────
omnibus_df = mscorer.compare_omnibus(results, test="kruskal")
posthoc_df = mscorer.compare_posthoc(
results, omnibus_results=omnibus_df, method="dunn",
pval_correction="bonferroni", pval_threshold=0.05,
)
deltas = mscorer.compute_pairwise_deltas(n_bootstrap=100)
# ── Tier 3 — mixed model with reference contrasts ────────────────────────────
contrasts_df = mscorer.fit_mixed_model_contrasts(
results, ref_condition="control", replicate_key="sample"
)
# ── Visualizations ───────────────────────────────────────────────────────────
mscorer.plot_omnibus_summary(omnibus_df, results, posthoc_df=posthoc_df)
mscorer.plot_posthoc_heatmap(posthoc_df)
mscorer.plot_pairwise_delta_grid(deltas)
mscorer.plot_star_grid(results)
mscorer.plot_rose_grid(results)
# ── Downstream §10 — driver genes per condition ──────────────────────────────
# Loop conditions: mask adata_sub per condition -> get_velocity_drivers /
# get_deg_drivers -> _stack_drivers_by_condition -> one tidy table.
# ── Downstream §11 — pathway enrichment per condition ────────────────────────
# Loop conditions: run_enrichment_per_fate on each cond's DEG drivers ->
# _stack_enrichment_by_condition -> one tidy table.
# ── Downstream §12 — expression trends per condition ─────────────────────────
# Loop conditions: build a per-condition CommitmentScoreResult via
# dataclasses.replace, masking cell_scores/cell_obs_names/nn_cell_entropy
# to that condition's cells, then plot_expression_trends.
# ── Downstream §13 — transfer labels back to mscorer.adata ───────────────────
mscorer.transfer_labels(results, prefix="cs_")
# Writes cs_{condition}_{fate} + cs_{condition}_dominant_fate + cs_{condition}_entropy
Interpretation guide¶
Result |
Interpretation |
|---|---|
Omnibus q < 0.05 for a fate |
Affinity for that fate differs across at least one condition pair |
Post-hoc q < 0.05 for (a, b) |
That specific condition pair drives the difference |
ΔnCS CI excludes 0 |
Pairwise commitment shift is significant |
Mixed-model contrast coef significant |
Condition effect on affinity, controlling for replicate |
Top driver gene in only 1 condition |
Condition-specific regulator candidate |
Pathway enriched in only 1 condition |
Differentially activated pathway |
Expression curve shifted in 1 condition |
Altered developmental timing for that gene |
For 2-condition comparisons see Pairwise Comparison Analysis.ipynb; for single-condition analysis see Single Condition Analysis.ipynb.
